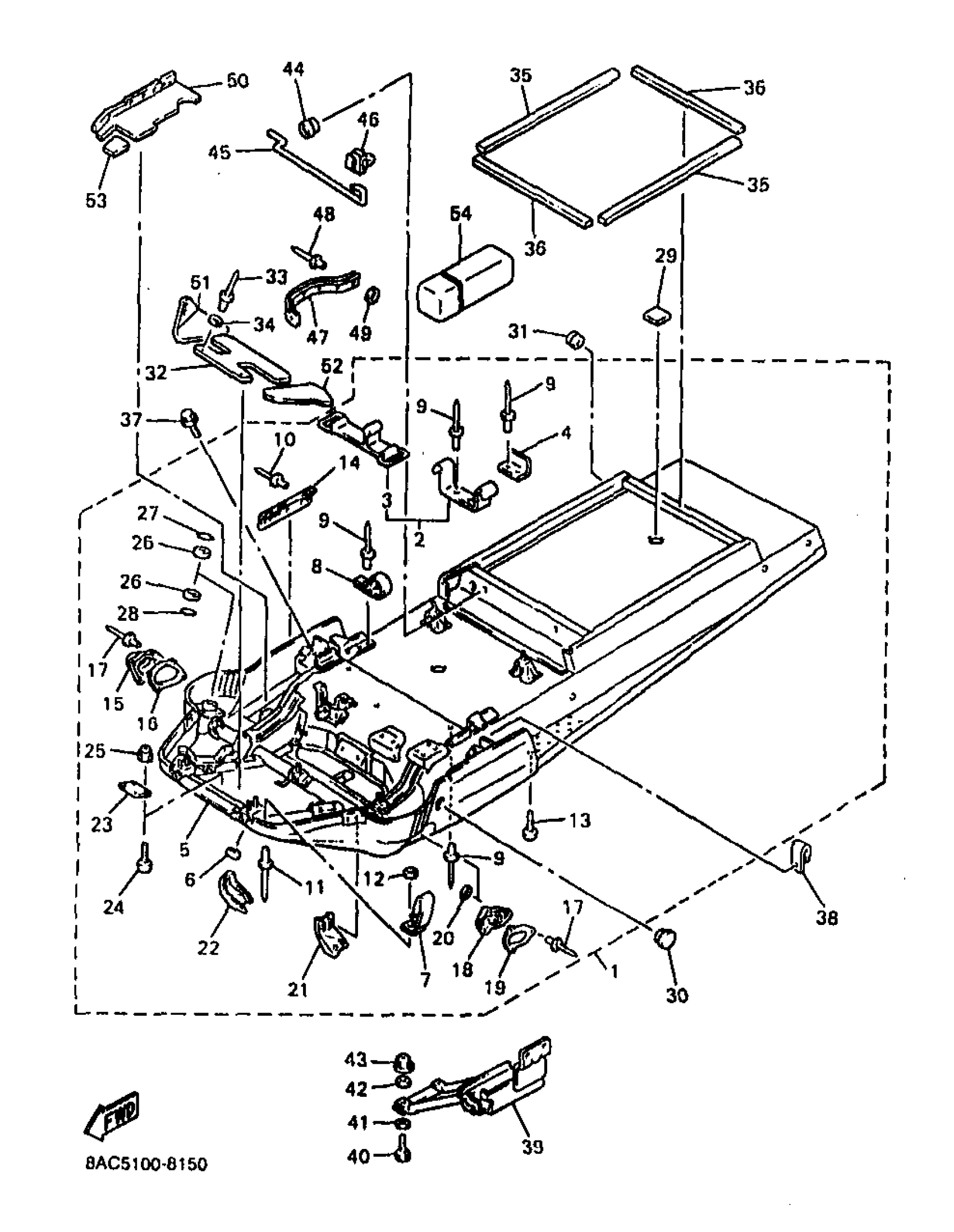

1998 Yamaha VK540 II (VK540EB) Frame Diagram
Find the part on the Frame diagram for your 1998 Yamaha VK540 II (VK540EB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
FRAME COMP.
8AT-21910-10-00
1
Out of stock
5
. PANEL, SUB FRAME 1
8AT-21912-10-00
1
Out of stock
6
C0LLAR
90387-062M9-00
1
Out of stock
7
CLAMP(51Y)
90465-08277-00
—
Out of stock
12
WASHER, PLATE
90201-04027-00
1
Out of stock
20
WASHER, PLATE
90201-04027-00
1
Out of stock
34
WASHER, PLATE
90201-04027-00
1
Out of stock
50
DAMPER, NOISE 12
8AT-77272-10-00
1
Out of stock
