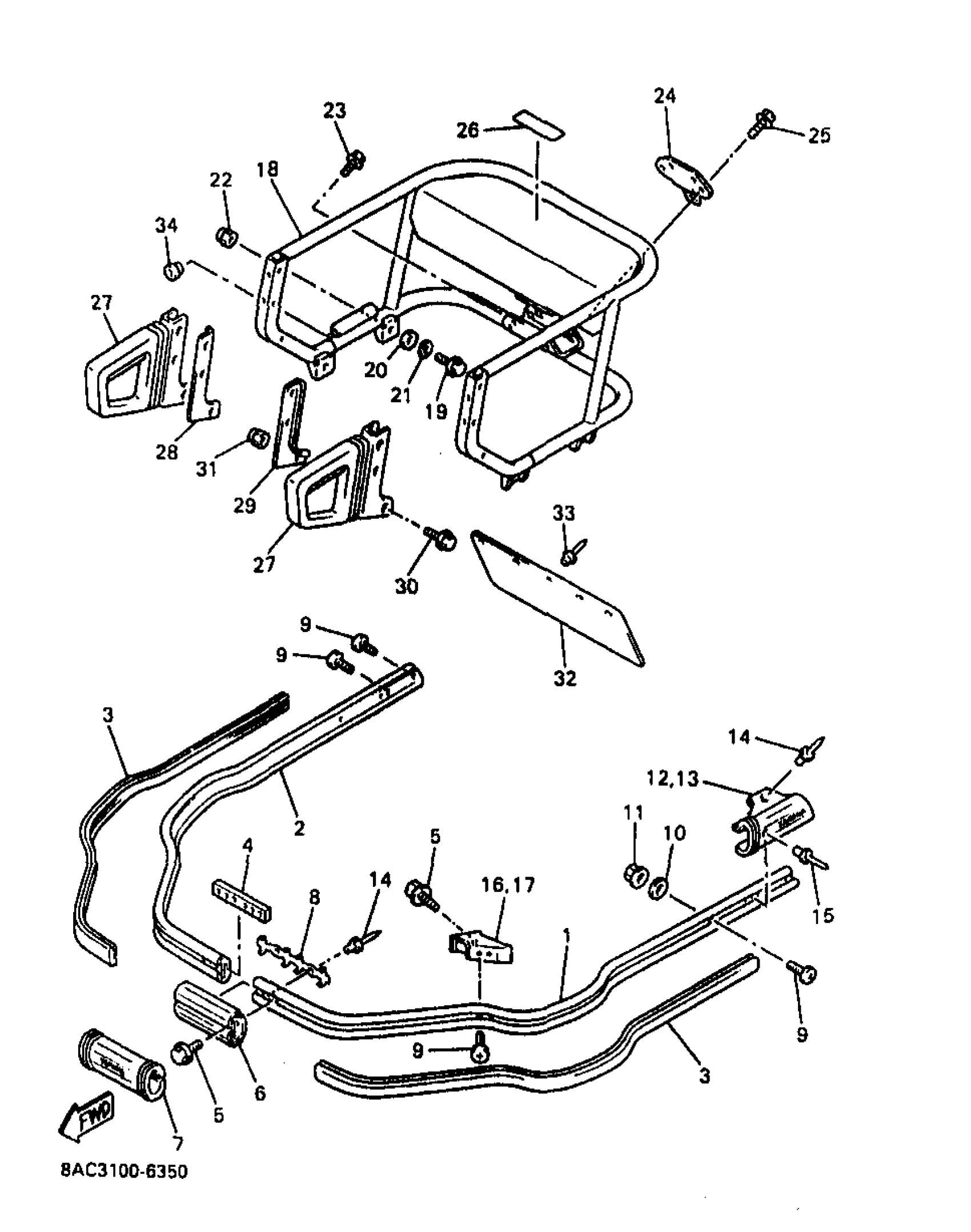

Find the part on the Bumper diagram for your 1998 Yamaha VK540 II (VK540EB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha VK540 II (VK540EB) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8AT-77511-01-00

—

$333.20

In stock

2

BUMPER, FRONT 2

8AT-77512-01-00

—

$333.20

In stock

3

BUSH, RUBBER 2

8AT-77516-00-00

1

$28.48

In stock

4

SPACER, BUMPER

8AT-77529-00-00

1
Out of stock

5

BOLT WASHER BASED (1J7)

90105-08066-00

—

$6.82

In stock

6

PROTECTOR 2

8AT-77552-00-00

—

$60.65

In stock

7

PROTECTOR 1

8AT-77551-01-00

—

$132.60

In stock

8

PROTECTOR 3

8AT-77553-00-00

—

$24.95

In stock

9

BOLT, BUTTON

92017-08020-00

1

$5.86

In stock

10

WASHER(6TC)

92907-08200-00

1
Out of stock

11

NUT(6TA)

95337-08600-00

1

$6.17

In stock

12

STOPPER, 1

8AT-77521-00-00

1
Out of stock

13

STOPPER 2

8AT-77522-00-00

1
Out of stock

14

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

15

RIVET, BLIND (J45)

90267-48149-00

1
Out of stock

16

END, BUMPER

8AT-77523-00-00

—

$52.68

In stock

17

END, BUMPER

8AT-77524-00-00

—

$52.68

In stock

18

REAR BUMPER COMP.

8AT-77540-01-00

1
Out of stock

19

BOLT, FLANGE

95817-08014-00

—

$1.94

In stock

20

WASHER(6TC)

92907-08200-00

1
Out of stock

21

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

22

NUT, CAP

95307-08800-00

—
Out of stock

23

BOLT, FLANGE(8AB)

95817-08020-00

—

$7.00

In stock

24

BRACKET, HITCH 2

84R-77592-00-00

—

$65.05

In stock

25

BOLT, FLANGE(8AB)

95817-08020-00

—

$7.00

In stock

26

EMBLEM

89X-24897-00-00

1
Out of stock

27

GRIP, ASSIST 1

8X0-77571-00-00

—

$170.71

In stock

28

WASHER 1

8X0-77525-00-00

—
Out of stock

29

WASHER 2

8X0-77526-00-00

—
Out of stock

30

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

31

NUT, CROWN(82U)

90176-08063-00

—
Out of stock

32

FLAP

83R-77595-00-00

—

$157.15

In stock

33

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

34

GROMMET (8L1)

90480-15268-00

—

$20.82

In stock
