Description

Price

1

BRACKET, ENGINE 1

8H8-21411-01-00

Unavailable

2

BRACKET, ENGINE 2

83R-21419-01-00

$46.99

3

BRACKET, ENGINE 3

8H8-21429-01-00

Unavailable

4

DAMPER 2

8N7-21486-00-00

$41.99

5

DAMPER, RUBBER 1

8V9-21485-00-00

$24.99

6

DAMPER 2

8V9-21486-00-00

Unavailable

7

BOLT, FLANGE(4GB)

95817-10045-00

$6.99

8

BUSH, SOLID (8V9)

90380-10129-00

Unavailable

9

WASHER, PLATE (8V9)

90201-257G7-00

Unavailable

10

WASHER (888)

90201-10151-00

Unavailable

11

WASHER, PLATE (856)

90201-10321-00

$8.49

12

NUT, FLANGE(8AB)

95707-10500-00

$3.18

13

BRACKET, FRONT LOWER 1

8AT-21417-00-00

$35.99

14

BRACKET, FRONT UNDER 2

8H8-21418-01-00

Unavailable

15

BRACKET, REAR UNDER 1

8H8-21427-00-00

Unavailable

16

WASHER (856)

90201-12317-00

Unavailable

17

NUT(3GG)

90179-12588-00

Unavailable

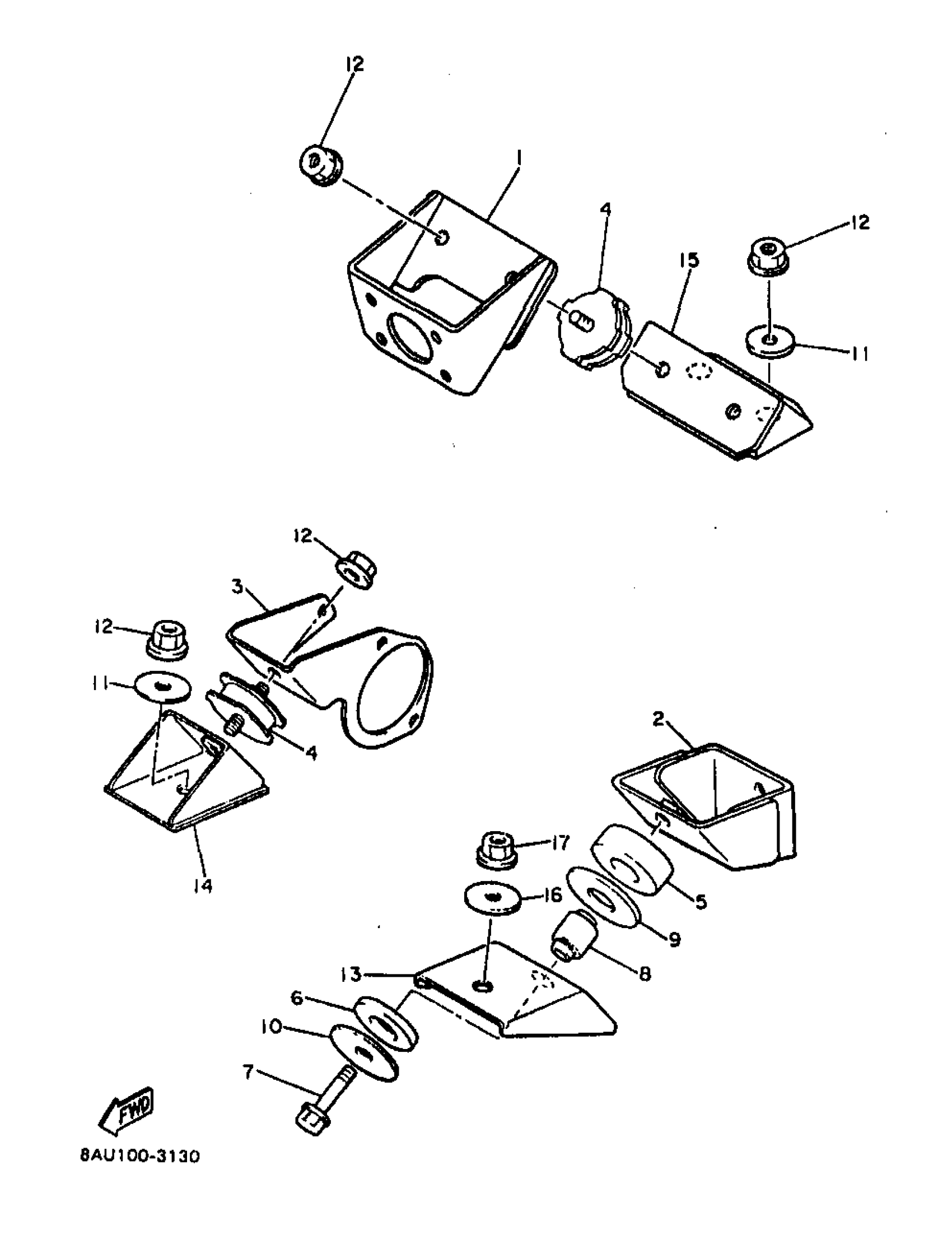

Yamaha VK540EB (VK540 II) 1998 ENGINE BRACKET Diagram

BRACKET, ENGINE 1

BRACKET, ENGINE 2

BRACKET, ENGINE 3

DAMPER 2

DAMPER, RUBBER 1

DAMPER 2

BOLT, FLANGE(4GB)

BUSH, SOLID (8V9)

WASHER, PLATE (8V9)

WASHER (888)

WASHER, PLATE (856)

NUT, FLANGE(8AB)

BRACKET, FRONT LOWER 1

BRACKET, FRONT UNDER 2

BRACKET, REAR UNDER 1

WASHER (856)

NUT(3GG)
