TRACK SUSPENSION 2

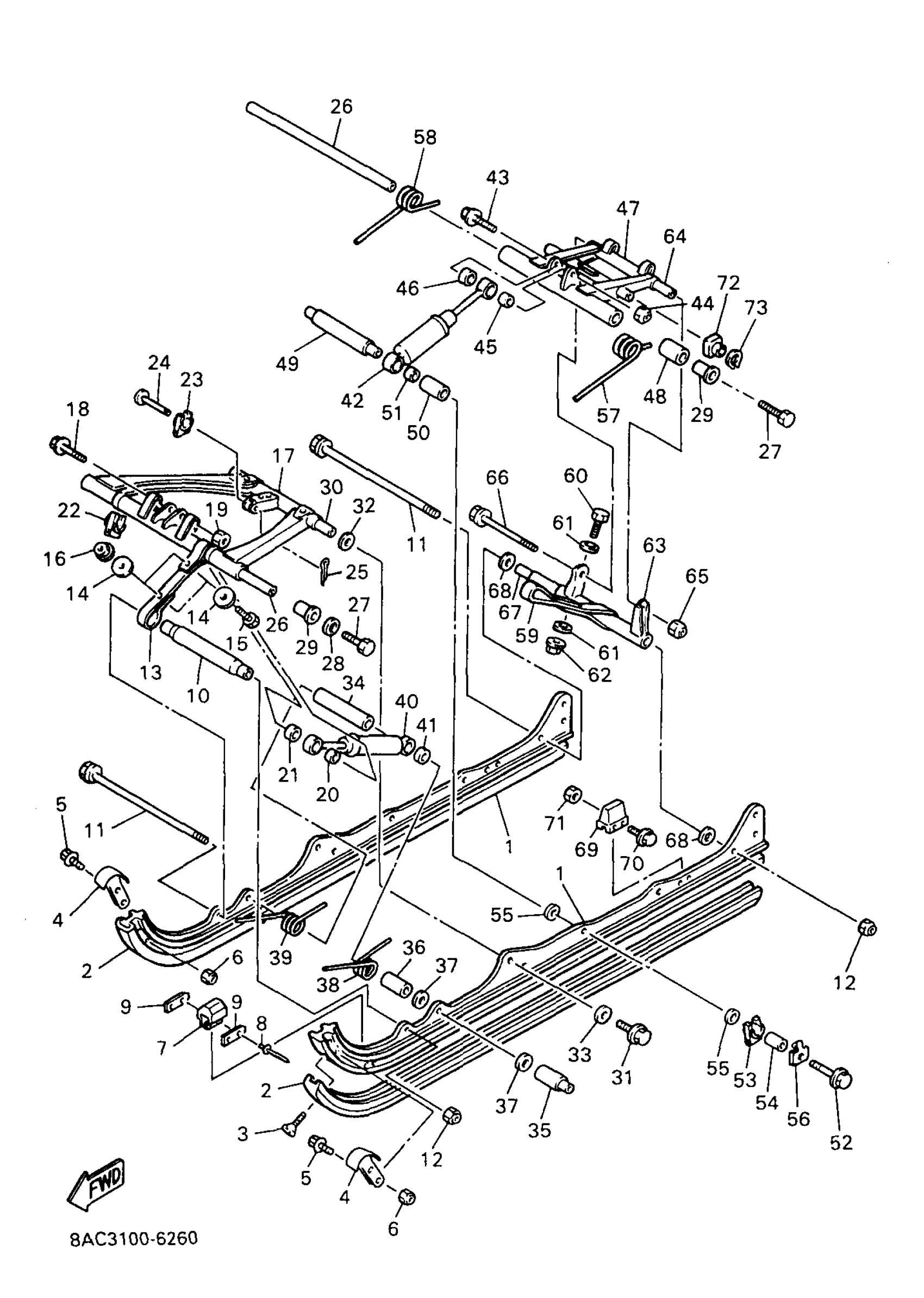

Yamaha VK540EA (VK540 II) 1997 TRACK SUSPENSION 2 Diagram
#
1
FRAME,SLIDING 1
8AT-47411-01-00
Unavailable
2
RUNNER, SLIDING 1 (83R-47421-10-00)
83R-47421-00-XX
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
RUNNER, SLIDING 2
8AC-47422-00-00
Unavailable
5
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
6
NUT, SELF-LOCKING
90185-08169-00
$8.49
7
DAMPER 1
8V0-47456-00-00
Unavailable
8
RIVET, BLIND (8K4)
90267-48062-00
$3.66
9
PLATE, DAMPER
8K2-47458-01-00
$4.77
10
BRACKET 1
83R-47415-00-00
Unavailable
11
BOLT, WASHER BASED
90105-08482-00
Unavailable
12
NUT, SELF-LOCKING
90185-08169-00
$8.49
13
STOPPER 1
83R-47495-01-00
Unavailable
14
WASHER, PLATE
90201-06747-00
$8.49
15
BOLT, HEXAGON
97017-06025-00
$4.24
16
NUT, NYLON
95707-06300-00
Unavailable
17
ARM,PIVOT 1
83R-47331-01-00
Unavailable
18
BOLT, FLANGE
95817-08040-00
Unavailable
19
NUT, SELF-LOCKING
90185-08169-00
$8.49
20
COLLAR(82M)
90387-084R5-00
Unavailable
21
BUSH, SOLID
90380-12161-00
Unavailable
22
HOOK 2
83R-47447-00-00
Unavailable
23
HOOK 3
8V0-47448-00-00
Unavailable
24
PIN, CLEVIS (90240-12107-00)
90240-12136-00
Unavailable
25
PIN, COTTER
91490-30030-00
Unavailable
26
SHAFT 1
83R-47465-02-00
Unavailable
27
BOLT (8V0)
90109-10771-00
Unavailable
28
WASHER, PLATE (2H7)
90201-10669-00
Unavailable
29
BUSH(83R)
90386-20155-00
Unavailable
30
SHAFT 3
83R-47485-02-00
Unavailable
31
BOLT, FLANGE
95817-10030-00
Unavailable
32
COLLAR (8U7)
90387-105G6-00
Unavailable
33
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
34
COLLAR
90387-167T2-00
Unavailable
35
COLLAR
90387-166M8-00
Unavailable
36
COLLAR
83R-47319-00-00
Unavailable
37
WASHER, PLATE
90201-161E5-00
Unavailable
38
SPRING, FRONT 1
83R-47471-01-00
Unavailable
39
SPRING,FRONT.2
83R-47472-01-00
Unavailable
40
SHOCK ABSORBER 2
8AT-47481-10-00
Unavailable
41
BUSH, PIVOT
8V0-47371-00-00
Unavailable
42
SHOCK ABSORBER
8AT-47480-00-00
Unavailable
43
BOLT, FLANGE
95817-08040-00
Unavailable
44
NUT, SELF-LOCKING
90185-08169-00
$8.49
45
COLLAR(82M)
90387-084R5-00
Unavailable
46
BUSH, SOLID
90380-12161-00
Unavailable
47
ARM, PIVOT 2
8AT-47332-00-00
Unavailable
48
COLLAR 1
83R-47365-00-00
Unavailable
49
SHAFT 4
8AT-47486-00-00
Unavailable
50
COLLAR
83R-47338-00-00
Unavailable
51
BUSH, PIVOT
8V0-47371-00-00
Unavailable
52
BOLT, FLANGE
95817-10060-00
Unavailable
53
HOOK 2
85K-47447-01-00
Unavailable
54
COLLAR
90387-103U7-00
Unavailable
55
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
56
PLATE, GUIDE
83R-47467-00-00
Unavailable
57
SPRING, REAR 1
88K-47473-00-00
Unavailable
58
SPRING, REAR 2
88K-47474-00-00
Unavailable
59
STOPPER 2
86M-47496-00-00
Unavailable
60
BOLT(21W)
97017-06035-00
Unavailable
61
WASHER, PLATE
90201-06747-00
$8.49
62
NUT, NYLON
95707-06300-00
Unavailable
63
BRACKET 3
83R-47417-00-00
Unavailable
64
COLLAR (899 SUSPENSION)
90387-08496-00
Unavailable
65
NUT, NYLON
95717-08300-00
Unavailable
66
BOLT, FLANGE
95817-08225-00
Unavailable
67
COLLAR
90387-085T4-00
Unavailable
68
WASHER (1T1)
90201-08649-00
Unavailable
69
DAMPER 2
86R-47457-00-00
Unavailable
70
BOLT, FLANGE
95817-06040-00
Unavailable
71
NUT,SELF-LOCKING
95607-06200-00
Unavailable
72
HOOK 1
86S-47446-01-00
Unavailable
73
CIRCLIP(13H)
99009-14400-00
Unavailable
