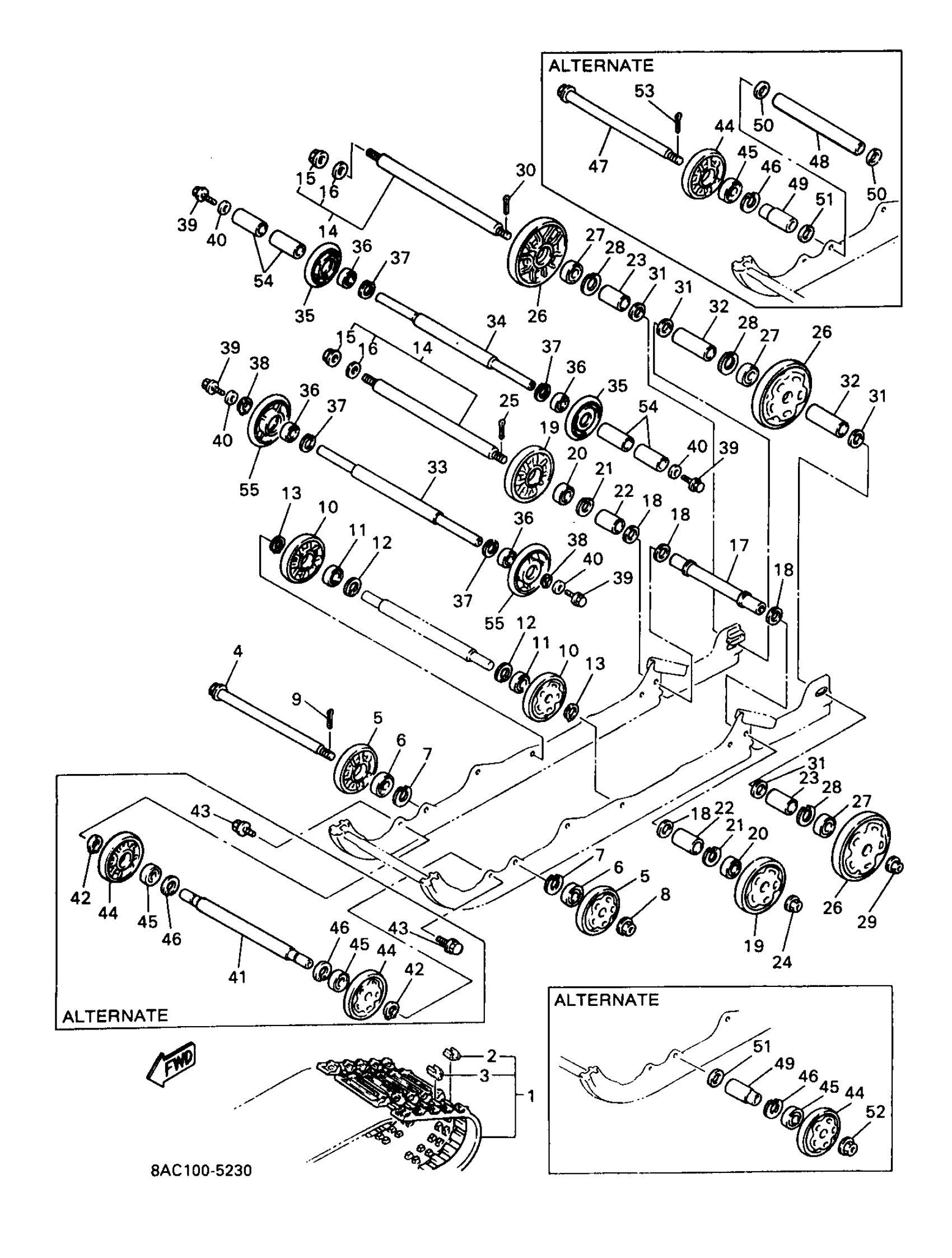

Yamaha VK540EA (VK540 II) 1997 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8AC-47110-11-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

METAL, SLIDE

89A-47115-01-00

Unavailable

4

SHAFT 5

83R-47487-00-00

Unavailable

5

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

6

BEARING(8AB)

93306-00444-00

$41.99

7

CIRCLIP(5U8)

99009-42500-00

$8.49

8

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

9

PIN, COTTER

91490-30030-00

$8.49

10

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

11

BEARING(8AB)

93306-00444-00

$41.99

12

CIRCLIP(5U8)

99009-42500-00

$8.49

13

CIRCLIP(1AR)

99009-20400-00

$8.49

14

REAR AXLE COMP.

8JN-47520-00-00

$125.99

15

NUT(6TC)

95337-14600-00

$11.49

16

WASHER, PLATE

90201-144L3-00

Unavailable

17

COLLAR 1

83R-47469-00-00

Unavailable

18

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

19

SUSPENSION WHEEL COMP.

8U7-47320-00-00

Unavailable

20

BEARING(8AB)

93306-00444-00

$41.99

21

CIRCLIP(5U8)

99009-42500-00

$8.49

22

COLLAR

90387-20022-00

Unavailable

23

COLLAR(83R)

90387-200U9-00

Unavailable

24

NUT, SELF-LOCKING(83R)

90185-14142-00

Unavailable

25

PIN, COTTER

91490-30030-00

$8.49

26

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

27

BEARING(8AE)

93306-20469-00

Unavailable

28

CIRCLIP(48Y)

99009-47500-00

Unavailable

29

NUT, SELF-LOCKING(83R)

90185-14142-00

Unavailable

30

PIN, COTTER

91490-30030-00

$8.49

31

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

32

COLLAR(83R)

90387-205T6-00

Unavailable

33

IDLER

83R-47461-00-00

Unavailable

34

SHAFT 6

8AC-47488-00-00

Unavailable

35

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

36

BEARING(8AB)

93306-00444-00

$41.99

37

CIRCLIP(5U8)

99009-42500-00

$8.49

38

CIRCLIP(1AR)

99009-20400-00

$8.49

39

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

40

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

41

SHAFT 4

8AT-47486-00-00

Unavailable

42

CIRCLIP(1AR)

99009-20400-00

$8.49

43

BOLT, FLANGE

95817-10030-00

Unavailable

44

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

45

BEARING(8AB)

93306-00444-00

$41.99

46

CIRCLIP(5U8)

99009-42500-00

$8.49

47

SHAFT 5

83R-47487-00-00

Unavailable

48

COLLAR

90387-167T2-00

Unavailable

49

COLLAR

90387-166M8-00

Unavailable

50

WASHER, PLATE (32N)

90201-163G6-00

Unavailable

51

WASHER, PLATE

90201-161E5-00

Unavailable

52

NUT, SELF-LOCKING(83R)

90185-14142-00

Unavailable

53

PIN, COTTER

91490-30030-00

$8.49

54

COLLAR

90387-2006C-00

Unavailable

55

SUSPENSION WHEEL COMP

885-47320-01-00

Unavailable
