Description

Price

1

STARTER ASSY

8H8-15710-00-00

$258.99

2

CASE, STARTER

8H8-15711-00-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$48.99

4

PAWL, DRIVE

8F3-15741-01-00

$28.99

5

SPRING, STARTER

8F3-15713-01-00

$48.99

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.99

7

WASHER, THRUST

8F3-15739-01-00

$11.99

8

SPRING, RETURN

8F3-15734-00-00

$5.49

9

PLATE, DRIVE

8F3-15716-03-00

$29.99

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT(650)

95380-06700-00

$8.49

12

WASHER, THRUST

8G5-15739-00-00

$9.49

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

14

HANDLE, STARTER

8F3-15755-00-00

$29.99

15

COLLOR

82M-15779-00-00

$8.99

16

BOLT(8CP)

97017-06014-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

PULLEY, STARTER

8H8-15723-01-00

Unavailable

19

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

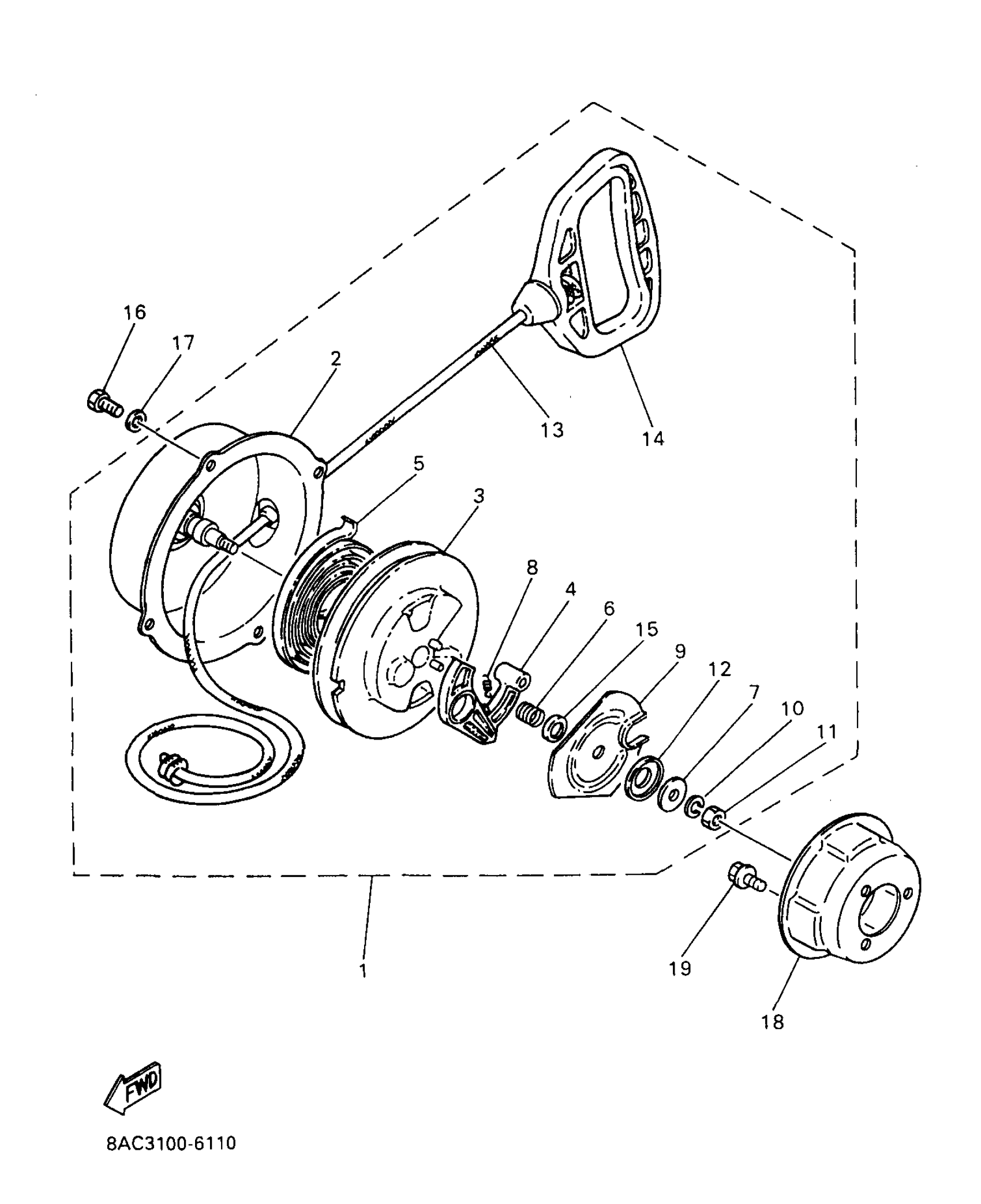

Yamaha VK540EA (VK540 II) 1997 STARTER Diagram

STARTER ASSY

CASE, STARTER

DRUM, SEAVE

PAWL, DRIVE

SPRING, STARTER

SPRING, DRIVE PLATE

WASHER, THRUST

SPRING, RETURN

PLATE, DRIVE

WASHER, SPRING

NUT(650)

WASHER, THRUST

WIRE, STARTER (BRAIDED)

HANDLE, STARTER

COLLOR

BOLT(8CP)

WASHER(6TA)

PULLEY, STARTER

BOLT, FLANGE(8AB)
