Description

Price

1

HEADLIGHT UNIT ASSY

84R-8430A-A0-00

Unavailable

2

. SPRING, SCREW

51L-84332-00-00

Unavailable

3

HOLDER

3AJ-8431U-00-00

$9.99

4

. NUT, ADJUSTING

51L-84334-00-00

Unavailable

5

. SPRING, REFLECTOR

36Y-84324-00-00

Unavailable

6

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

7

COVER, SOCKET

36Y-84397-00-00

Unavailable

8

COLLAR, BODY FITTING

498-84145-60-00

$6.99

9

DAMPER, HEAD LAMP B

498-84164-60-00

$6.99

10

DAMPER, HEAD LAMP A

498-84163-60-00

$7.99

11

GEAR UNIT ASSY

83R-8430M-00-00

Unavailable

12

SCREW, TAPPING(4HP)

97707-40616-00

$1.70

13

KNOB ASSY

26H-8432M-00-00

Unavailable

14

BOLT (8K4)

90101-08499-00

Unavailable

15

WASHER(6TA)

92907-08600-00

$3.03

16

GROMMET

36Y-84354-00-00

Unavailable

17

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

18

CORD, HEADLIGHT

8AT-84359-00-00

Unavailable

19

BAND

80L-26397-00-00

Unavailable

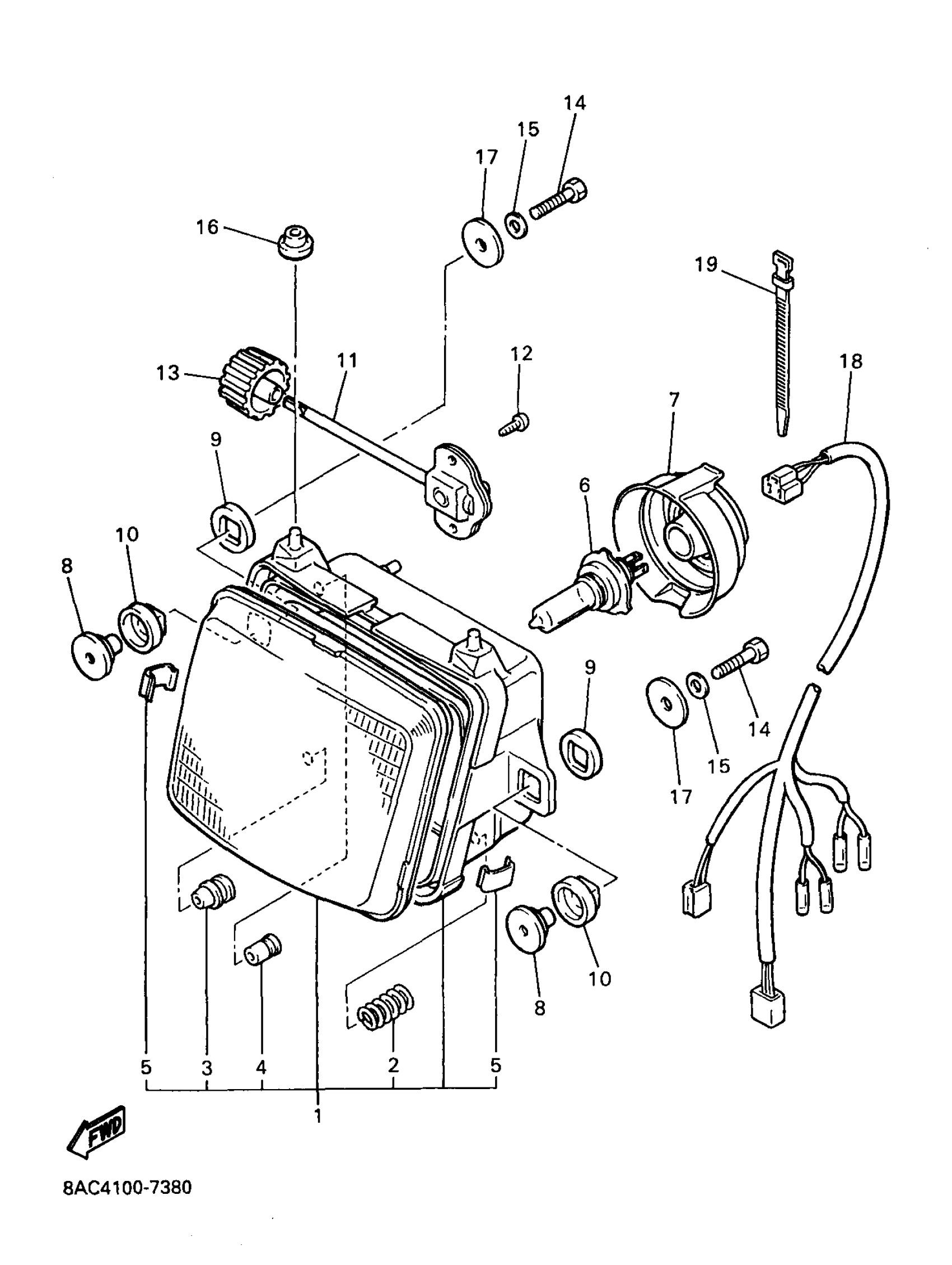

Yamaha VK540EA (VK540 II) 1997 HEADLIGHT Diagram

HEADLIGHT UNIT ASSY

. SPRING, SCREW

HOLDER

. NUT, ADJUSTING

. SPRING, REFLECTOR

BULB, HEADLIGHT

COVER, SOCKET

COLLAR, BODY FITTING

DAMPER, HEAD LAMP B

DAMPER, HEAD LAMP A

GEAR UNIT ASSY

SCREW, TAPPING(4HP)

KNOB ASSY

BOLT (8K4)

WASHER(6TA)

GROMMET

WASHER, PLATE (5J0)

CORD, HEADLIGHT

BAND
