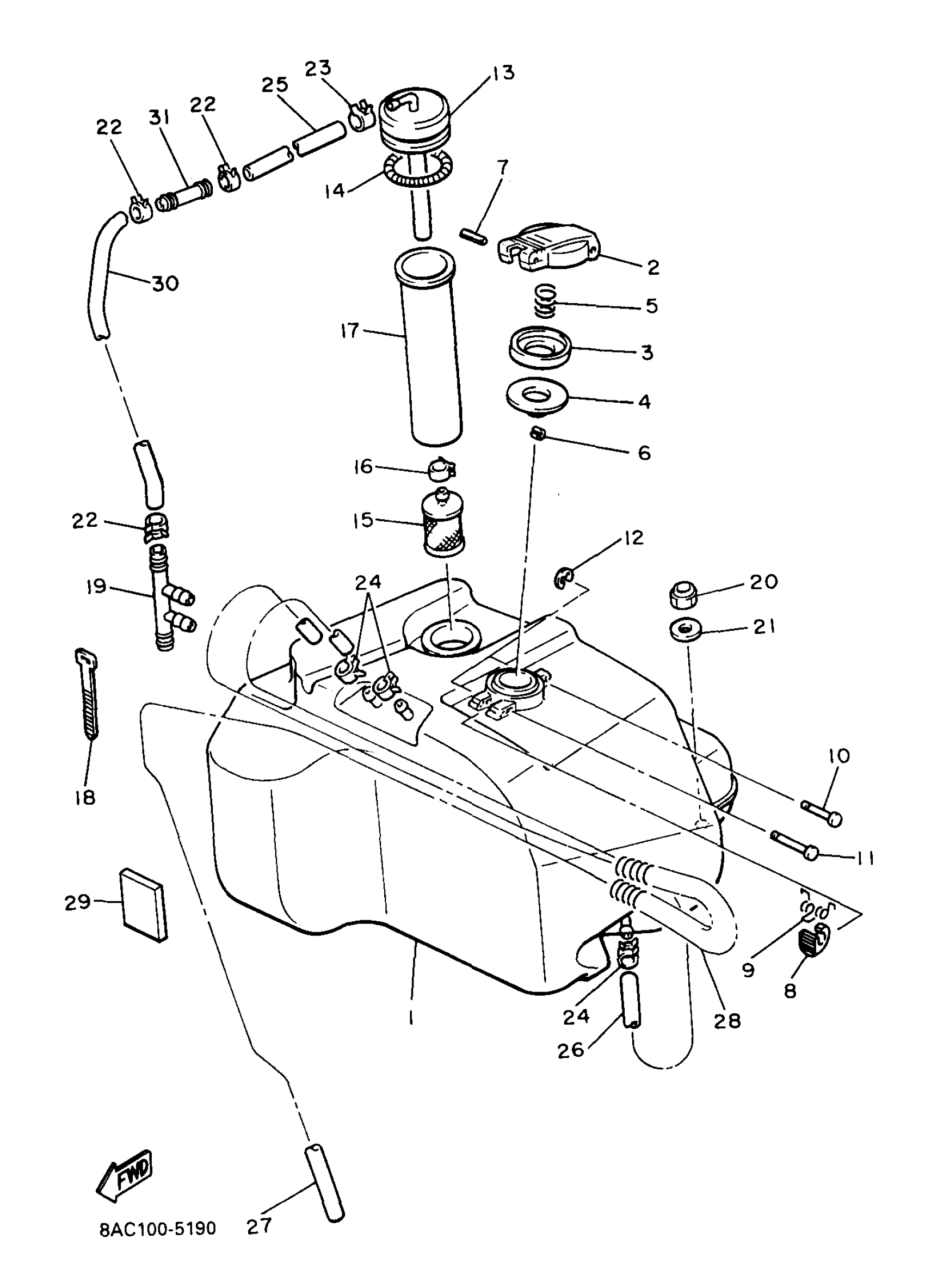

Yamaha VK540EA (VK540 II) 1997 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

83R-24111-00-00

$304.99

2

BODY, CAP

8W6-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$20.99

4

GASKET, CAP 1

89A-24641-00-00

$10.99

5

SPRING, CAP

90501-20130-00

$8.49

6

PIN, SPRING

91690-30016-00

Unavailable

7

PIN, SPRING (8W6)

91609-25050-00

$0.90

8

HOOK

83M-24628-00-00

$24.99

9

SPRING, TORSION(81E)

90508-10715-00

Unavailable

10

PIN (8W6)

90249-03175-00

Unavailable

11

PIN (813)

90249-03017-00

$7.49

12

CIRCLIP (604)

93430-02001-00

$8.49

13

PIPE, SUCTION 1

83R-24335-00-00

$28.99

14

SPRING, TENSION (8R4)

90506-06261-00

$9.49

15

FILTER ASSY

8H5-24560-00-00

Unavailable

16

CLIP (7K7)

90467-11044-00

Unavailable

17

PIPE, SUCTUIN

813-24336-00-00

Unavailable

18

BAND

341-26397-01-00

Unavailable

19

PIPE, JOINT 1

82M-24376-00-00

Unavailable

20

NUT, NYLON

95717-08300-00

Unavailable

21

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

22

CLIP (8J7)

90467-11009-00

Unavailable

23

CLIP (7K7)

90467-11044-00

Unavailable

24

CLIP (8A1)

90467-09026-00

Unavailable

25

TUBE, FLEXIBLE VINYL

91A20-07042-00

Unavailable

26

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

Unavailable

27

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

28

PROTECTOR, PIPE

81E-24328-00-00

Unavailable

29

SPACER

8V0-23858-00-00

Unavailable

30

TUBE, FLEXIBLE VINYL(8AK)

91A20-07039-00

Unavailable

31

PIPE, JOINT 4

878-24379-00-00

Unavailable
