- VK540EA (VK540 II) 1997
ELECTRICAL 1

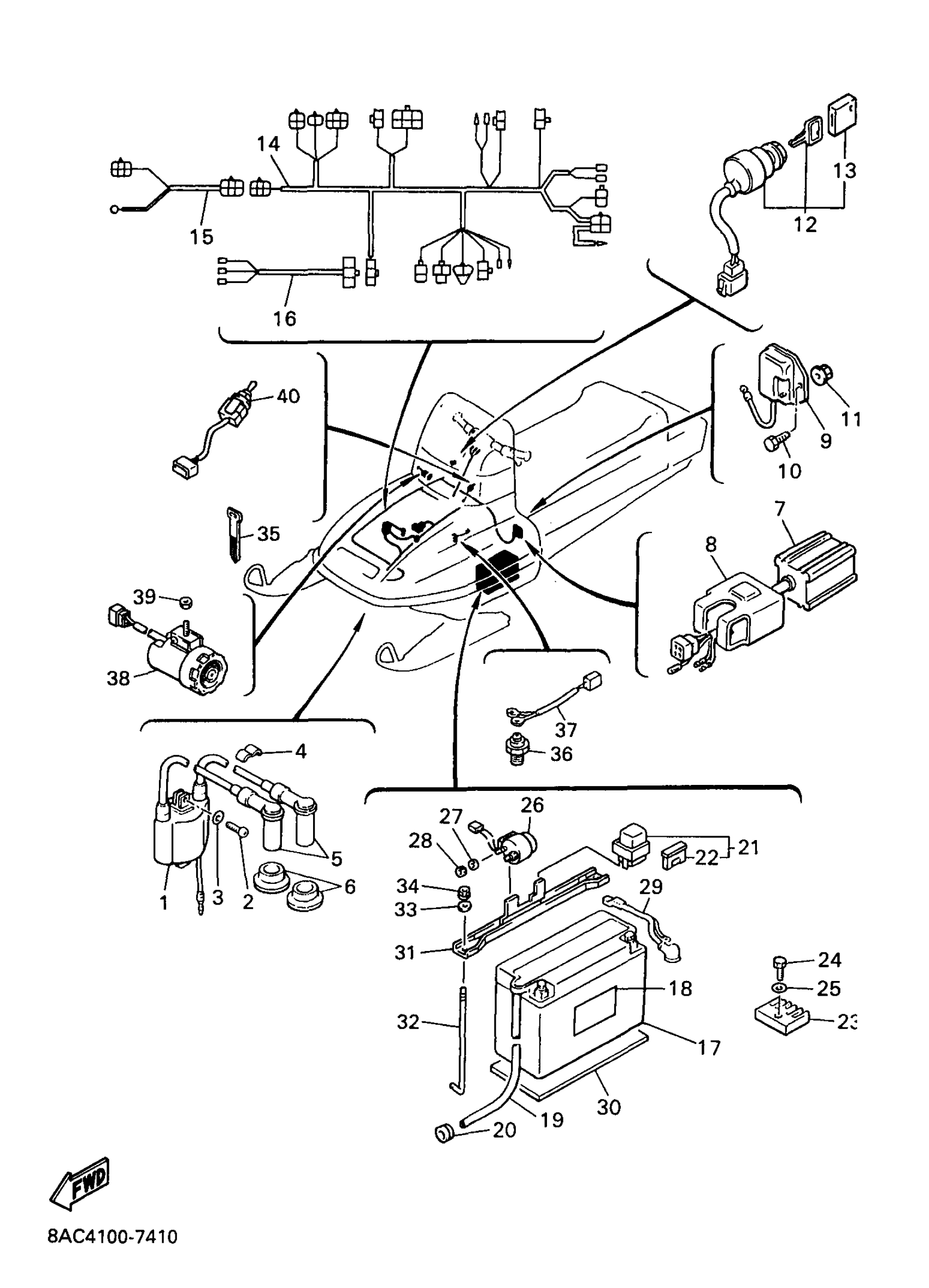

Yamaha VK540EA (VK540 II) 1997 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8AB-82310-07-00
$85.99
2
SCREW PAN HEAD
98580-06020-00
$8.49
3
WASHER, PLAIN (646)
92990-06600-00
$2.80
4
CLAMP, CORD
861-82361-00-00
Unavailable
5
PLUG CAP ASSY
85G-82370-20-00
$34.99
6
SEAL
8G5-82372-00-00
$5.60
7
C.D.I. UNIT ASSY
8AU-85540-00-00
$201.99
8
BAND
2A7-85546-00-00
Unavailable
9
VOLTAGE REGULATOR ASSY
82M-81910-A0-00
Unavailable
10
BOLT(8CP)
97017-06014-00
$8.49
11
NUT, NYLON
95707-06300-00
$3.50
12
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
13
CAP, KEY
526-82579-00-00
$7.99
14
WIRE HARNESS ASSY
8AC-82590-00-00
Unavailable
15
WIRE, SUB LEAD
8AC-82509-00-00
$51.99
16
CORD, TAIL LIGHT
8AC-84717-01-00
Unavailable
17
YB16ALA2 YUASA BATTERY
YB1-6ALA2-00-00
Unavailable
18
LABEL, BATTERY
40A-82141-G0-00
Unavailable
19
PIPE
8AC-8235W-00-00
Unavailable
20
GROMMET(3AA)
90480-12497-00
Unavailable
21
FUSE HOLDER ASSY
8BE-82150-00-00
Unavailable
22
FUSE (10A)
42X-82151-00-00
Unavailable
23
RECTIFIER ASSY (RXKING,RXS)
3HB-H1970-01-00
Unavailable
24
BOLT, HEXAGON
97017-06020-00
Unavailable
25
WASHER(6TA)
92907-06600-00
Unavailable
26
STARTER RELAY ASSY (MS5D-231)
50W-81940-10-00
Unavailable
27
WASHER, SPRING
92907-06100-00
Unavailable
28
NUT(6TA)
95317-06600-00
Unavailable
29
WIRE, PLUS LEAD
3LD-82115-00-00
Unavailable
30
SEAT, BATTERY
84N-82122-00-00
Unavailable
31
PLATE, BATTERY FITTING
8AC-82136-00-00
Unavailable
32
SCREW, FITTING
8Y7-82133-00-00
Unavailable
33
WASHER(6TA)
92907-06600-00
Unavailable
34
NUT, NYLON
95707-06300-00
$3.50
35
BAND
341-26397-01-00
Unavailable
36
NEUTRAL SWITCH ASSY
4KD-82540-00-00
Unavailable
37
WIRE, SUB-LEAD
87L-82318-01-00
Unavailable
38
BUZZER
87L-83383-00-00
Unavailable
39
NUT,SELF-LOCKING
95607-06200-00
Unavailable
40
SWITCH
8JD-82917-00-00
Unavailable
