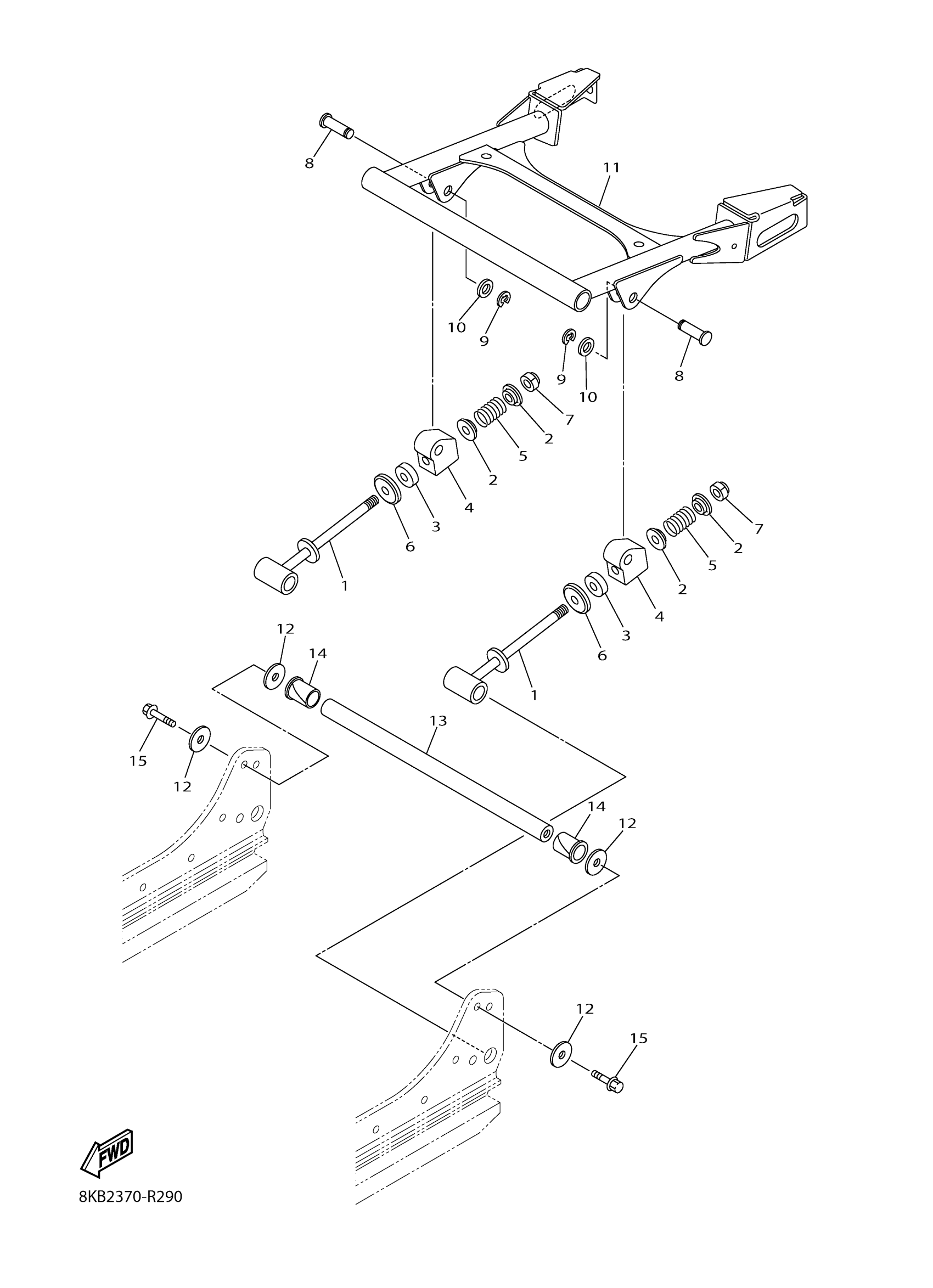

Yamaha VK1NFPNV (VK PROFESSIONAL II EPS) 8LP80 2022 TRACK SUSPENSION 3 Diagram

#

Description
Price

1

SHAFT, PIVOT

83R-47337-10-00

Unavailable

2

SEAT, SPRING 1

83R-23768-00-00

$5.49

3

SPRING

83R-47335-00-00

Unavailable

4

HOOK 1

8KA-47446-00-00

$17.99

5

SPRING, COMPRESSION

90501-380A0-00

$8.49

6

SEAT, SPRING 1

8KW-23768-00-00

Unavailable

7

NUT, NYLON(663)

90185-12058-00

$20.99

8

PIN

90249-12006-00

$7.49

9

CIRCLIP(10Y)

99009-12400-00

$3.59

10

WASHER, PLATE

90201-12055-00

$8.49

11

ARM, PIVOT 3

8KA-47333-00-00

Unavailable

12

WASHER PLATE (3L6)

90201-10742-00

$8.49

13

SHAFT 3

83R-47485-02-00

$76.99

14

BUSH, SOLID(8CJ)

90381-19111-00

$15.99

15

BOLT, FLANGE

95817-10030-00

$8.49
