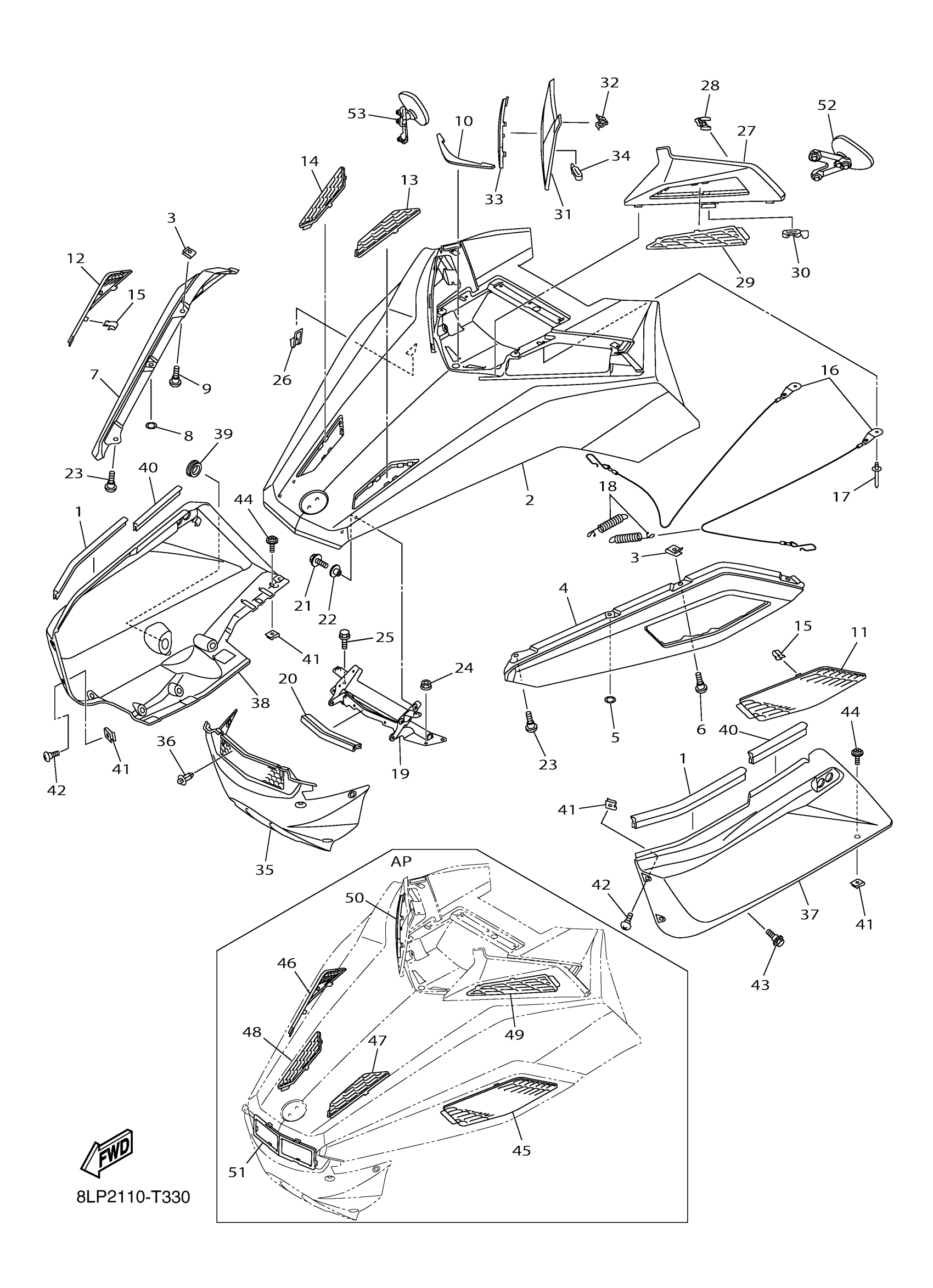

Yamaha VK1NFPNV (VK PROFESSIONAL II EPS) 8LP80 2022 SHROUD Diagram
#
1
SEAL 1
8KW-78245-00-00
Unavailable
2
SHROUD (BLACK METALLIC X)
8KW-77111-00-P2
Unavailable
3
NUT, SPRING(4ES)
90183-06069-00
Unavailable
4
COVER, SIDE 1
8KW-21711-00-P0
Unavailable
5
NUT, SPRING(3VD)
90183-08065-00
$1.11
6
SCREW, BINDING
90154-06009-00
$4.61
7
COVER, SIDE 2
8KW-21721-00-P0
Unavailable
8
NUT, SPRING(3VD)
90183-08065-00
$1.11
9
SCREW, BINDING
90154-06009-00
$4.61
10
DAMPER, HEADLIGHT 1
8KW-84366-00-00
Unavailable
11
LOUVER 1
8KW-77441-10-00
Unavailable
12
LOUVER 2
8KW-77442-10-00
Unavailable
13
LOUVER 3
8KW-77443-10-00
Unavailable
14
LOUVER 4
8KW-77444-10-00
Unavailable
15
CLAMP 1
8KW-77135-00-00
$4.82
16
STOPPER, SHROUD
8KW-77118-00-00
Unavailable
17
RIVET, BLIND
90267-48018-00
Unavailable
18
CLAMP, ROD
89A-77159-00-00
Unavailable
19
HINGE ASSY
8KW-77140-00-00
Unavailable
20
SEAL, FLOOR 2
8KW-78246-00-00
Unavailable
21
BOLT, FLANGE
95817-06016-00
Unavailable
22
COLLAR (8G8)
90387-06681-00
Unavailable
23
SCREW, BINDING
90154-06009-00
$4.61
24
NUT, U FLANGE
95604-06200-00
Unavailable
25
BOLT, FLANGE
95817-06012-00
Unavailable
26
CLAMP 1
8FA-77135-00-00
Unavailable
27
FAIRING
8KW-77231-00-P2
Unavailable
28
CLIP
90468-040A0-00
Unavailable
29
LOUVER 5
8KW-77109-10-00
Unavailable
30
FASTNER
82H-77223-00-00
Unavailable
31
FAIRING 2
8KW-7723A-00-P2
Unavailable
32
CLIP
90468-040A0-00
Unavailable
33
LOUVER 6
8KW-77108-10-00
Unavailable
34
FASTNER
82H-77223-00-00
Unavailable
35
PANEL, SUB FRAME 1
8KW-21912-00-00
Unavailable
36
RIVET
90269-06001-00
Unavailable
37
HOOD 3
8KW-2197H-00-00
Unavailable
38
HOOD 4
8KW-2198H-00-00
Unavailable
39
PLUG(8CJ)
90338-30256-00
Unavailable
40
SEAL, FLOOR 2
8KW-78246-00-00
Unavailable
41
NUT, SPRING
90183-060A6-00
Unavailable
42
SCREW, BINDING
90154-06009-00
$4.61
43
BOLT
90109-06220-00
Unavailable
44
SCREW, WITH WASHER
90159-06011-00
Unavailable
45
LOUVER 1
8KW-77441-00-00
Unavailable
46
LOUVER 2
8KW-77442-00-00
Unavailable
47
LOUVER 3
8KW-77443-00-00
Unavailable
48
LOUVER 4
8KW-77444-00-00
Unavailable
49
LOUVER 5
8KW-77109-00-00
Unavailable
50
LOUVER 6
8KW-77108-00-00
Unavailable
51
GRILLE, FRONT
8KW-78217-00-00
Unavailable
52
REAR VIEW MIRROR ASSY (LEFT)
8KW-26280-00-00
Unavailable
53
REAR VIEW MIRROR ASSY (RIGHT)
8KW-26290-00-00
Unavailable
