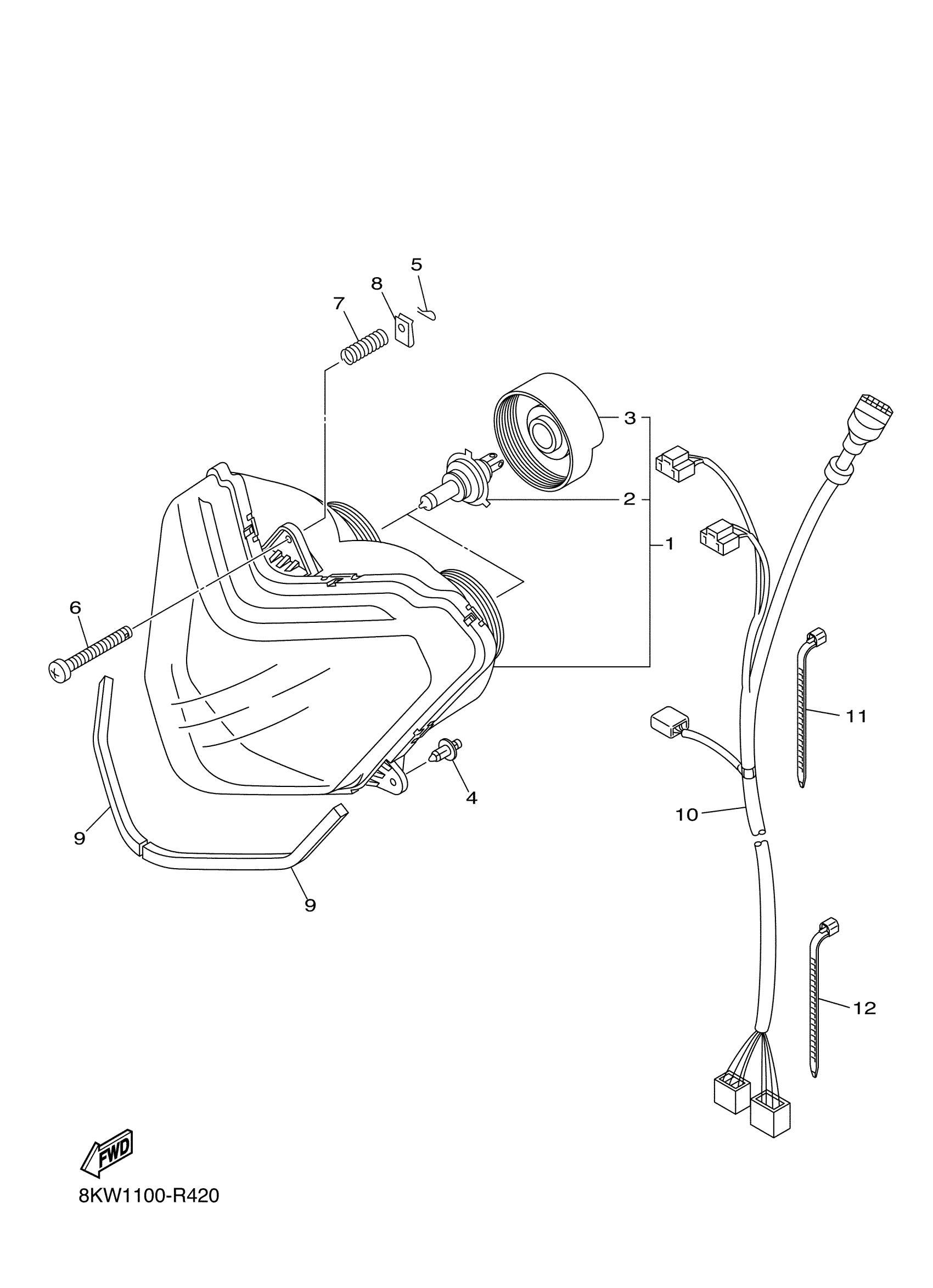

Yamaha VK1NFPNV (VK PROFESSIONAL II EPS) 8LP80 2022 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

8KW-84310-00-00

Unavailable

2

BULB, HEADLIGHT

8G9-84314-01-00

Unavailable

3

COVER, SOCKET

8GK-84397-01-00

Unavailable

4

RIVET

90269-06001-00

$5.05

5

CLIP

8K4-84374-00-00

$6.35

6

SCREW, ADJUSTING

8M6-84331-00-00

$13.80

7

SPRING, ADJUST SCREW

8A5-84332-00-00

$6.90

8

NUT, SPRING

90183-051A0-00

$2.49

9

DAMPER

4FU-21747-00-00

$6.33

10

CORD, HEADLIGHT

8LP-84359-00-00

Unavailable

11

CLAMP(4FM)

90464-15195-00

$2.57

12

CLAMP

90464-13077-00

$6.22
