- VK1NFPMV (VK PROFESSIONAL II EPS) 8LP71 2021
TRACK SUSPENSION 1

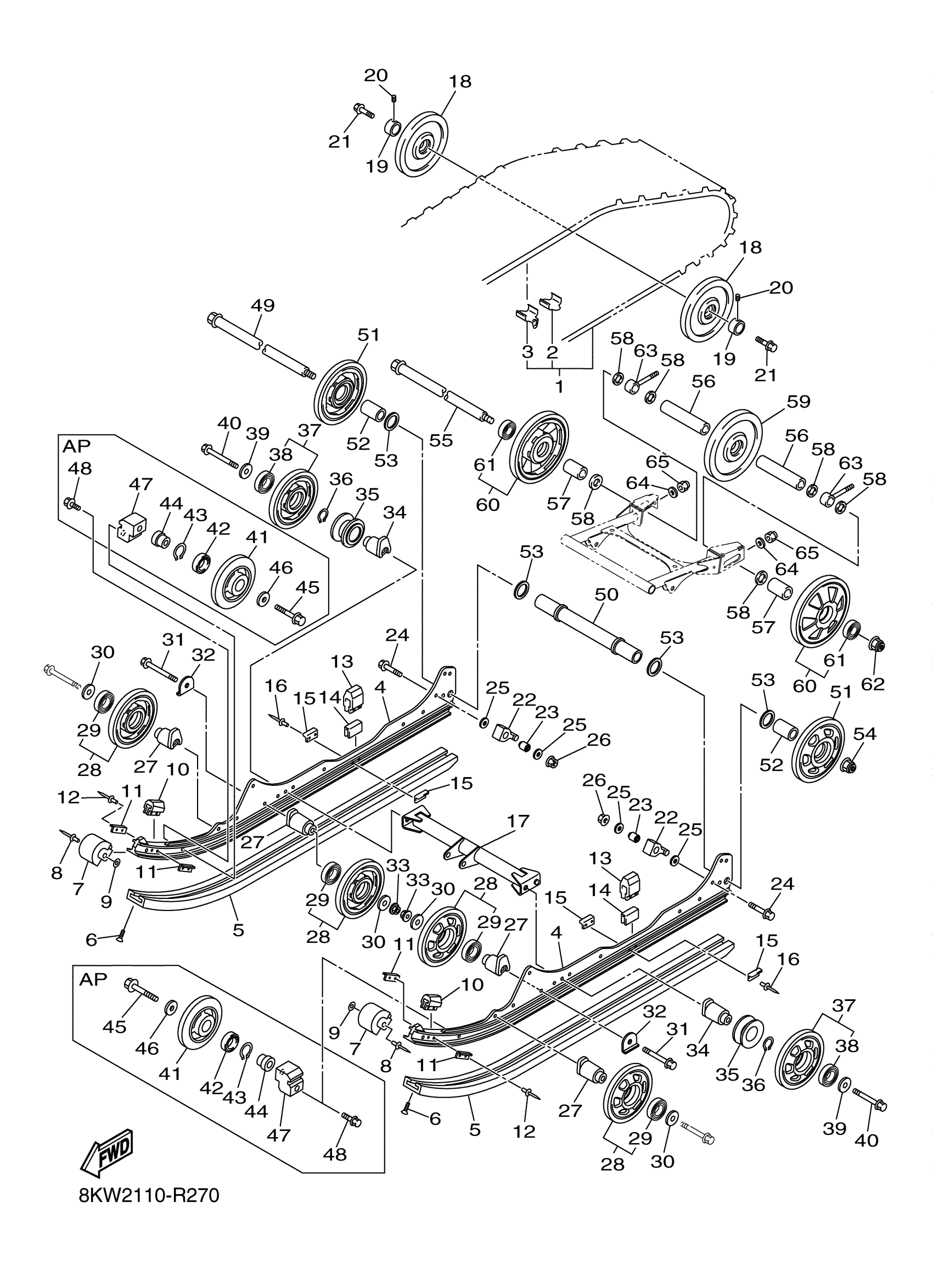

Yamaha VK1NFPMV (VK PROFESSIONAL II EPS) 8LP71 2021 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8KW-47110-00-00
Unavailable
2
PLATE, REINFORCEMENT
8HR-47113-09-00
$17.99
3
METAL, SLIDE
8HR-47115-09-00
$16.99
4
FRAME, SLIDING
8KW-4741A-01-00
$340.99
5
SLIDE RUNNER BLK 136''
SMA-8FT92-00-BK
Unavailable
6
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
7
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
8
RIVET BLIND
90267-48194-00
$3.28
9
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
10
DAMPER 1
8ES-47456-00-00
$6.99
11
PLATE, DAMPER
8K2-47458-01-00
$4.77
12
RIVET, BLIND
90267-48199-00
$3.76
13
DAMPER 2
8AC-47457-00-00
$18.49
14
SPACER
8AC-47341-00-00
$40.99
15
PLATE, DAMPER
8AX-47458-00-00
$10.99
16
RIVET, BLIND
90267-48199-00
$3.76
17
BRACKET, ARM PIVOT
8KW-47349-00-00
Unavailable
18
GUIDE WHEEL ASSY
8AC-47550-00-00
Unavailable
19
COLLAR 1
8JD-47365-00-00
Unavailable
20
BOLT, SET (8K2)
90113-06039-00
Unavailable
21
BOLT
90109-10032-00
Unavailable
22
STOPPER 2
8KW-47496-00-00
Unavailable
23
BUSH, REAR SHOCK ABSORBER
4GY-22216-30-00
Unavailable
24
BOLT, FLANGE
90105-10209-00
Unavailable
25
WASHER, PLATE
90201-10052-00
Unavailable
26
NUT, S/L FLANGE
95602-10200-00
Unavailable
27
BRACKET 7
8ES-47419-20-00
Unavailable
28
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
29
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
30
WASHER, PLATE
90201-10038-00
Unavailable
31
BOLT, FLANGE
95812-10080-00
Unavailable
32
WASHER, CLAW
90214-10004-00
Unavailable
33
NUT, S/L FLANGE
95602-10200-00
Unavailable
34
BRACKET 7
8ES-47419-10-00
Unavailable
35
HOOK 1
8ET-47446-00-00
Unavailable
36
CIRCLIP(6U2)
93410-35M10-00
Unavailable
37
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
38
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
39
WASHER, PLATE
90201-10038-00
Unavailable
40
BOLT, FLANGE
95812-10080-00
Unavailable
41
SUSPENSION WHEEL COMP.
8AC-47320-00-00
Unavailable
42
BEARING(8AB)
93306-00444-00
Unavailable
43
CIRCLIP(5U8)
99009-42500-00
Unavailable
44
COLLAR
8GP-47319-00-00
Unavailable
45
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
46
WASHER, PLATE
90201-10052-00
Unavailable
47
BRACKET 7
8GP-47419-00-00
Unavailable
48
BOLT, FLANGE
95817-10030-00
Unavailable
49
REAR AXLE COMP.
8JN-47520-00-00
Unavailable
50
COLLAR 1
83R-47469-10-00
Unavailable
51
SUSPENSION WHEEL ASSY
8HP-47310-10-00
Unavailable
52
COLLAR
90387-20022-00
Unavailable
53
WASHER, PLATE
90201-20022-00
Unavailable
54
NUT, U FLANGE
95602-14200-00
Unavailable
55
REAR AXLE COMP.
8JN-47520-00-00
Unavailable
56
COLLAR
90387-20023-00
Unavailable
57
COLLAR
90387-20022-00
Unavailable
58
WASHER, PLATE
90201-20022-00
Unavailable
59
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
60
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
61
BEARING(8AB)
93306-00444-00
Unavailable
62
NUT, U FLANGE
95602-14200-00
Unavailable
63
COLLAR 3
8DM-47479-00-00
Unavailable
64
WASHER, PLATE
92990-10600-00
Unavailable
65
NUT, NYLON
95707-10300-00
Unavailable
