- VK1NFPMV (VK PROFESSIONAL II EPS) 8LP71 2021
RADIATOR & HOSE

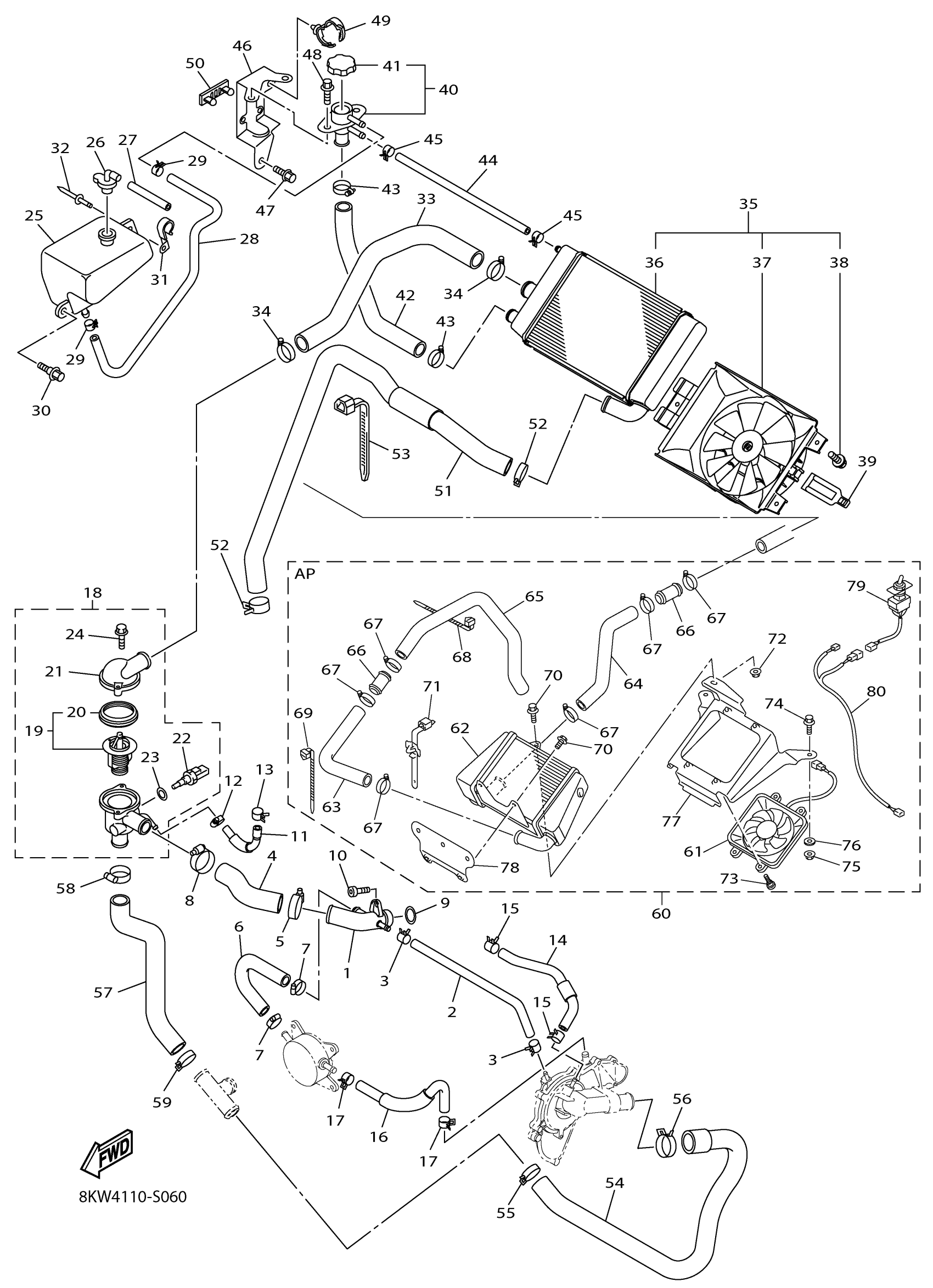

Yamaha VK1NFPMV (VK PROFESSIONAL II EPS) 8LP71 2021 RADIATOR & HOSE Diagram
#
1
PIPE 2
8GL-12482-00-00
Unavailable
2
PIPE 5
8GL-12485-00-00
$11.49
3
CLIP
90467-110A2-00
Unavailable
4
HOSE 2
8KW-1243E-00-00
Unavailable
5
HOSE CLAMP ASSY
90450-35001-00
$5.60
6
HOSE 6
8GL-12589-00-00
Unavailable
7
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
8
HOSE CLAMP ASSY
90450-35001-00
$5.60
9
O-RING
93210-235A1-00
$7.49
10
BOLT(3MA)
91312-06016-00
$5.60
11
HOSE 2
8KW-12577-00-00
Unavailable
12
CLAMP, HOSE(61L)
90460-11M17-00
$20.99
13
CLIP
90467-120A5-00
$8.49
14
HOSE 3
8GL-12578-00-00
Unavailable
15
CLIP
90467-110A2-00
Unavailable
16
HOSE 5
8ES-12588-00-00
Unavailable
17
CLIP(3TB)
90467-17128-00
Unavailable
18
JOINT ASSY
8KW-12580-00-00
Unavailable
19
THERMOSTAT ASSY
8FN-12410-00-00
Unavailable
20
SEAL, THERMOSTAT
8EK-12412-00-00
Unavailable
21
COVER, THERMOSTAT
5EB-12413-00-00
Unavailable
22
THERMOSENSOR ASSY
5YP-85790-00-00
Unavailable
23
WASHER, PLATE
90201-12790-00
Unavailable
24
BOLT, FLANGE
95022-06020-00
Unavailable
25
TANK, RECOVERY
8FN-21871-00-00
Unavailable
26
CAP
89A-21815-00-00
Unavailable
27
HOSE (L70)
90445-112E0-00
Unavailable
28
HOSE (L450)
90445-120J8-00
Unavailable
29
CLIP (7K7)
90467-11044-00
Unavailable
30
SCREW (7H2)
90149-06148-00
Unavailable
31
CLAMP
90465-10048-00
Unavailable
32
RIVET, BLIND(8CJ)
90267-48182-00
Unavailable
33
HOSE, 4
8KW-1244G-00-00
Unavailable
34
HOSE CLAMP ASSY
90450-35001-00
$5.60
35
RADIATOR ASSY
8KW-1240A-00-00
Unavailable
36
RADIATOR COMP
8KW-12461-00-00
Unavailable
37
BLOWER ASSY
8KW-12405-00-00
Unavailable
38
BOLT, BLOWER HOLDING
5GJ-12675-00-00
Unavailable
39
LATCH
8FA-2389E-00-00
Unavailable
40
CONDUCTION ASSY
8FN-12590-00-00
Unavailable
41
CAP, RADIATOR
1B3-12462-00-00
Unavailable
42
HOSE 5
8KW-1244H-00-00
Unavailable
43
HOSE CLAMP ASSY
90450-28001-00
Unavailable
44
HOSE (L300)
90445-120J7-00
Unavailable
45
CLIP (7K7)
90467-11044-00
Unavailable
46
BRACKET 1
8KW-1244E-00-00
Unavailable
47
BOLT, FLANGE
95817-06012-00
Unavailable
48
BOLT, FLANGE
95817-06016-00
Unavailable
49
CLAMP(4AP)
90464-20181-00
Unavailable
50
BRACKET
8FA-83614-00-00
Unavailable
51
PIPE 7
8KW-12477-00-00
Unavailable
52
CLIP (8M6)
90467-28046-00
Unavailable
53
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
54
PIPE 8
8FN-1248A-00-00
Unavailable
55
CLIP (8M6)
90467-28046-00
Unavailable
56
CLIP
90467-310A0-00
Unavailable
57
PIPE 9
8KW-1248E-00-00
Unavailable
58
HOSE CLAMP ASSY
90450-35001-00
$5.60
59
CLIP (8M6)
90467-28046-00
Unavailable
60
VK10 SUB RADIATOR KIT
8KW-W1246-00-00
Unavailable
61
BLOWER ASSY
8FP-12405-01-00
Unavailable
62
RADIATOR ASSY
8GS-12461-00-00
Unavailable
63
HOSE 6
8FN-1244J-00-00
Unavailable
64
HOSE 1
8FN-1243A-00-00
Unavailable
65
HOSE,3
8KW-1243F-00-00
Unavailable
66
JOINT 1
8FN-12469-00-00
Unavailable
67
HOSE CLAMP ASSY
90450-35001-00
$5.60
68
CLAMP(4FM)
90464-15195-00
Unavailable
69
CLAMP, HOSE(3KJ)
90460-15126-00
Unavailable
70
BOLT, FLANGE
95817-06012-00
Unavailable
71
CLAMP
90464-07012-00
Unavailable
72
NUT, FLANGE
95702-06500-00
Unavailable
73
SCREW, BINDING
98907-05016-00
Unavailable
74
BOLT, FLANGE
95814-08016-00
Unavailable
75
NUT,FLANGE(J10)
95702-08500-00
Unavailable
76
WASHER, PLATE (3L7)
90201-08784-00
Unavailable
77
BRACKET 2
8FN-1244F-00-00
Unavailable
78
STAY, RADIATOR
8KW-12464-00-00
Unavailable
79
SWITCH
8CN-82917-01-00
Unavailable
80
WIRE, SUB LEAD
8FN-82509-00-00
Unavailable
