Description

Price

1

TANK, FUEL

8KW-24111-10-00

Unavailable

2

FUEL PUMP COMP.

8KW-13907-02-00

Unavailable

3

O-RING

8FP-24486-00-00

$18.99

4

BRACKET, FUEL PUMP

3B4-24491-00-00

Unavailable

5

NUT (J17)

95380-06800-00

$8.49

6

BREATHER COMP.

8KW-2418A-00-00

Unavailable

7

SCREW

90149-06021-00

$8.49

8

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$29.99

9

SPRING, COMPRESSION (10L)

90501-08668-00

$11.49

10

CLIP (8A1)

90467-09026-00

$3.28

11

TUBE, FILLER

8FG-24114-00-00

Unavailable

12

CAP ASSY

8FG-24610-01-00

$40.99

13

GASKET, CAP 1

8HV-24641-00-00

Unavailable

14

COVER, FILLER

8KW-2414A-00-00

Unavailable

15

COLLAR (21X)

90387-093H1-00

Unavailable

16

NUT, NYLON

95717-08300-00

Unavailable

17

CLAMP(3LD)

90464-09129-00

Unavailable

18

CLAMP

90464-16010-00

Unavailable

19

CLIP (8A1)

90467-09026-00

$3.28

20

PIPE, FUEL 1

8KW-24311-01-00

Unavailable

21

CLAMP

90464-14004-00

Unavailable

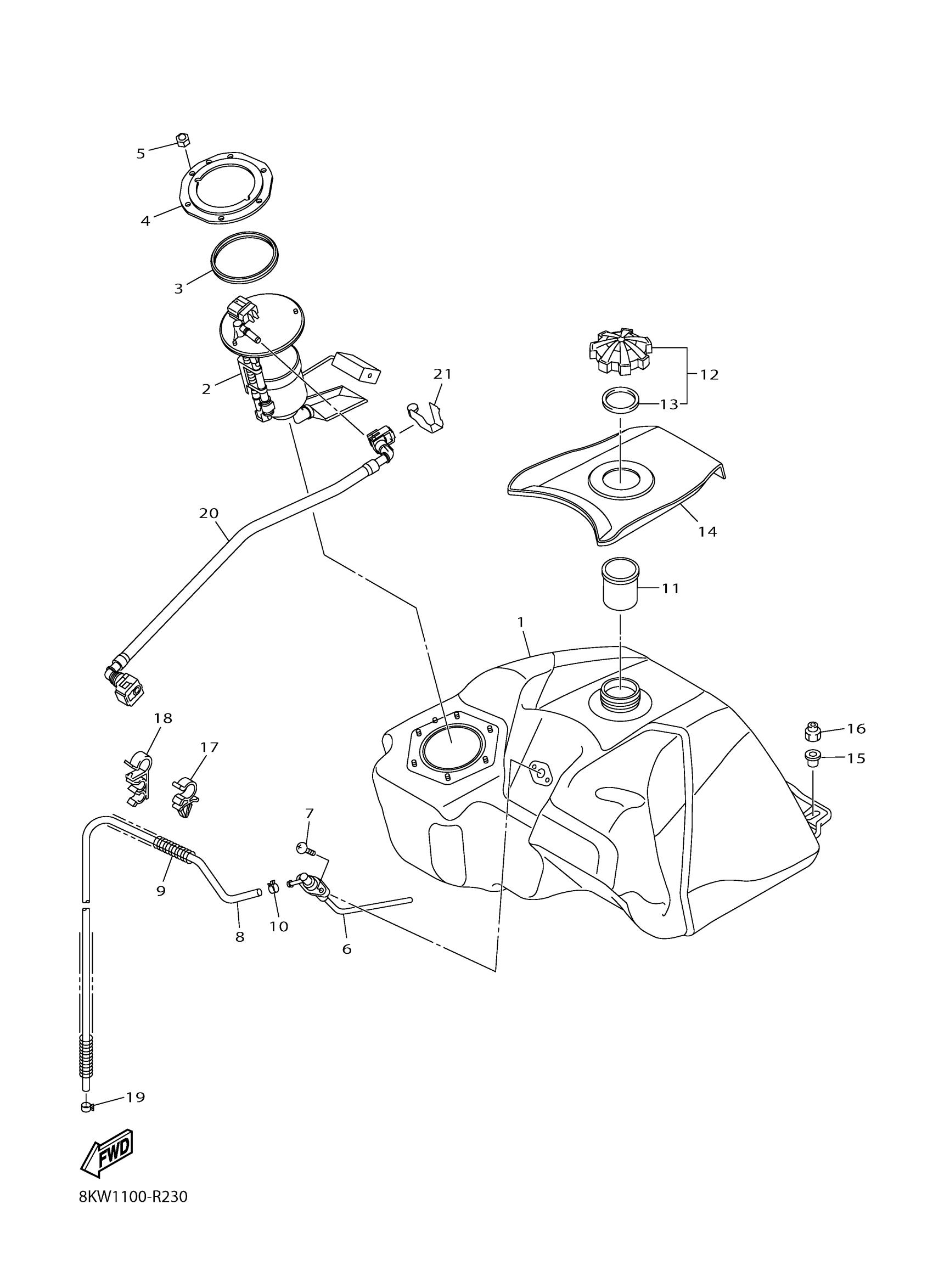

Yamaha VK1NFPMV (VK PROFESSIONAL II EPS) 8LP71 2021 FUEL TANK Diagram

TANK, FUEL

FUEL PUMP COMP.

O-RING

BRACKET, FUEL PUMP

NUT (J17)

BREATHER COMP.

SCREW

TUBE, FLEXIBLE VINYL(8AT)

SPRING, COMPRESSION (10L)

CLIP (8A1)

TUBE, FILLER

CAP ASSY

GASKET, CAP 1

COVER, FILLER

COLLAR (21X)

NUT, NYLON

CLAMP(3LD)

CLAMP

CLIP (8A1)

PIPE, FUEL 1

CLAMP
