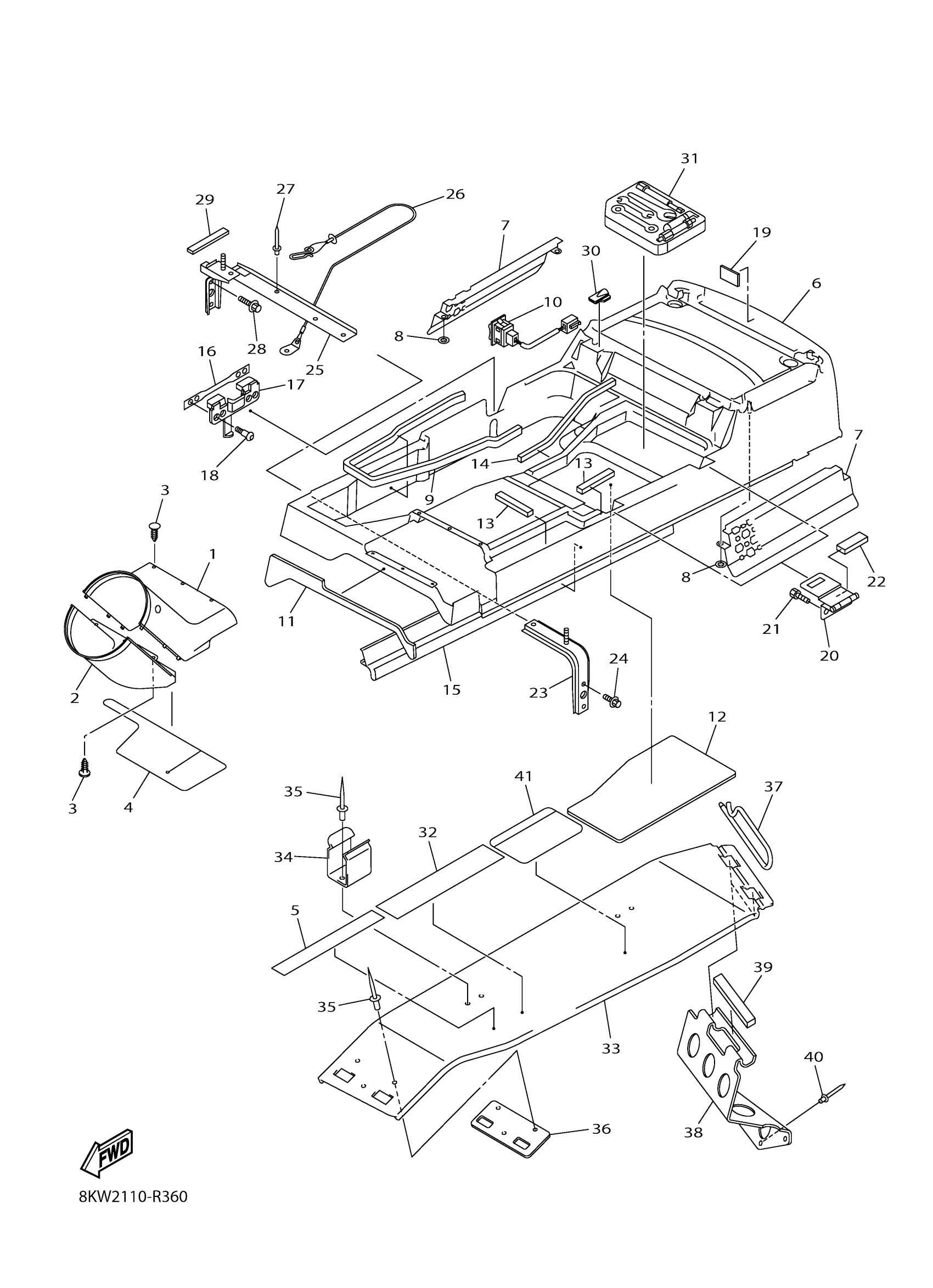

Yamaha VK1NFPLV (VK PROFESSIONAL II) 8LP61 2020 GUARD LUGGAGE BOX Diagram

#

Description
Price

1

COVER 1

8KW-1246A-00-00

$32.99

2

COVER 2

8KW-1246E-00-00

$31.99

3

RIVET(81E)

90269-05055-00

$8.49

4

LINING, SHROUD 1

8KW-77261-00-00

$18.99

5

LABEL, CAUTION

8HF-1417E-00-00

$1.91

6

LUGGAGE BOX ASSY

8FN-77390-11-00

Unavailable

7

LOUVER 3

8FN-77133-00-00

$32.99

8

NUT, SPRING(8AJ)

90183-05068-00

$10.49

9

INSULATOR

8EN-83669-00-00

$5.49

10

SWITCH

8ET-82917-00-00

Unavailable

11

LINING, SHROUD 2

8FN-77262-00-00

$18.99

12

LINING, SHROUD 3

8FN-77263-00-00

$76.99

13

SEAL 3

8FN-241A3-00-00

$1.49

14

SEAL 4

8FN-241A4-00-00

Unavailable

15

TRIM 1

8FN-2196T-00-00

Unavailable

16

BAR, SEAT LEVER

8FN-2478C-00-00

Unavailable

17

DAMPER, SEAT

8FN-24723-00-00

Unavailable

18

BOLT

90111-05020-00

Unavailable

19

DAMPER

5TG-84163-00-00

Unavailable

20

HINGE ASS'Y

8FN-24772-00-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

90110-06043-00

Unavailable

22

SEAL 2

8FN-2414E-00-00

Unavailable

23

BRACKET, FUEL TANK 1

8FN-2194N-01-00

Unavailable

24

BOLT, FLANGE

95817-08014-00

Unavailable

25

BRACKET, FUEL TANK 2

8FN-2194R-01-00

Unavailable

26

CABLE, SEAT LOCK

8FN-2478E-00-00

Unavailable

27

RIVET, BLIND(8CR)

90267-47186-00

Unavailable

28

BOLT, FLANGE

95817-08014-00

Unavailable

29

SEAL 3

8FN-241A3-00-00

$1.49

30

GROMMET

8FN-24742-00-00

Unavailable

31

TOOL KIT

8KW-28100-00-00

Unavailable

32

LABEL 1

8JD-47578-00-00

Unavailable

33

GUARD, DRIVE

8FA-77311-02-00

Unavailable

34

STAY, BELT

8CR-77338-00-00

Unavailable

35

RIVET, BLIND

90267-48010-00

Unavailable

36

PROTECTOR

8FA-77373-00-00

Unavailable

37

PIN

8CR-77384-01-00

Unavailable

38

HOOK

8FN-21973-00-00

Unavailable

39

DAMPER 1

8CR-77319-00-00

Unavailable

40

RIVET, BLIND

90267-47195-00

Unavailable

41

LABEL, WARNING 2

8BD-77762-00-00

Unavailable
