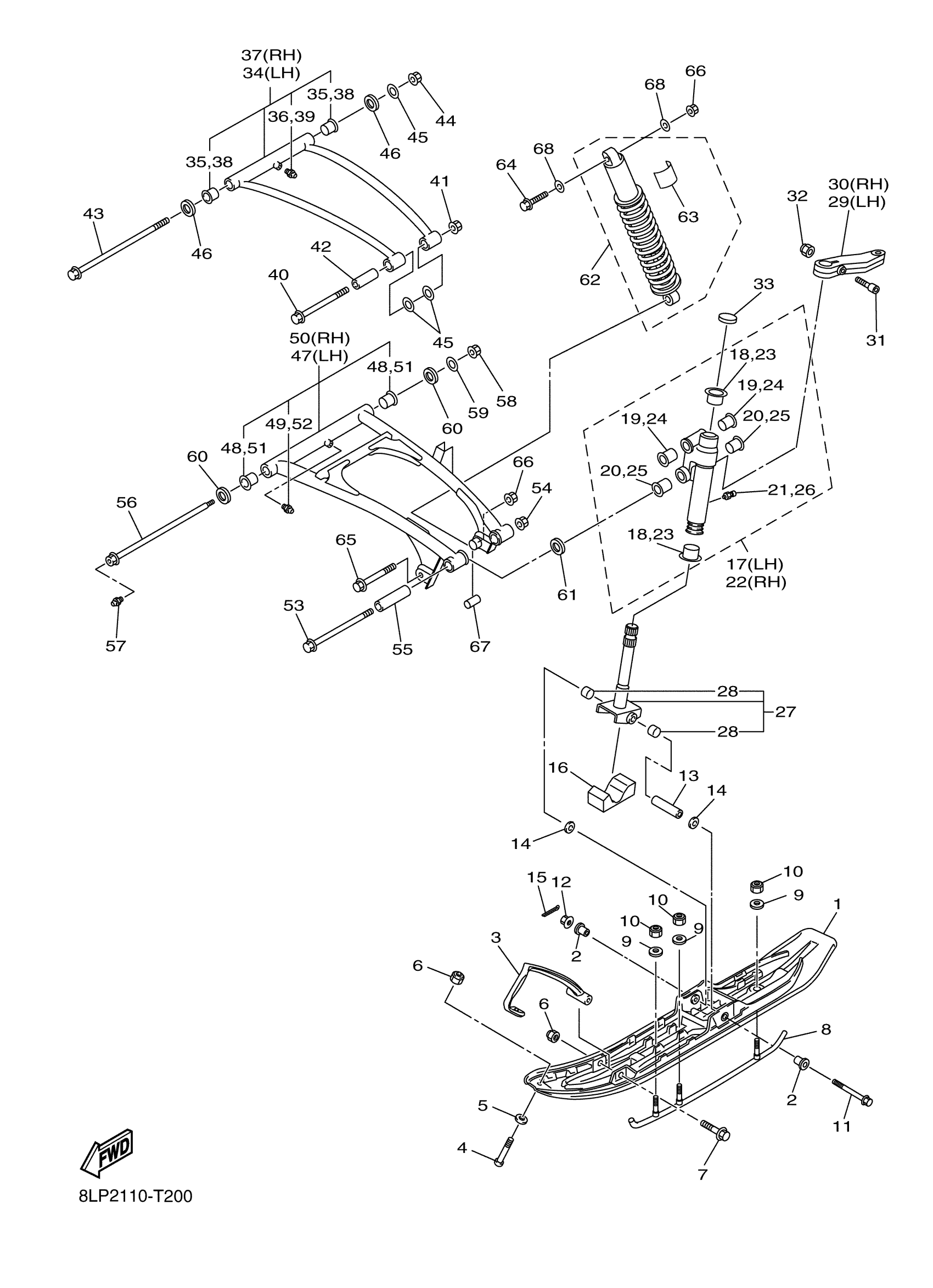

Yamaha VK1NFPJS (VK PROFESSIONAL II) 8LP20 2018 SKI Diagram
#
1
SKI 1
8LP-F3711-00-00
Unavailable
2
. COLLAR 1
8EX-F3754-00-00
Unavailable
3
HANDLE MTX BLACK
8KC-F3712-00-00
$37.99
4
BOLT, REINFORCEMEN
8KC-F3755-00-00
$4.56
5
WASHER 1
8KC-F3737-00-00
Unavailable
6
NUT, FLG. LOCKING
8KC-RA358-00-00
Unavailable
7
BOLT, REINFORCEMEN
8KC-F3756-00-00
$7.49
8
RUNNER 1
8LP-F3731-00-00
Unavailable
9
WASHER 2
8HG-F3738-00-00
Unavailable
10
NUT, NYLON
95717-08300-00
$2.70
11
BOLT, FLANGE
90105-10070-00
$12.49
12
NUT, S/L FLANGE
95602-10200-00
$4.82
13
COLLAR
90387-1012H-00
$24.99
14
WASHER, PLATE
90201-10052-00
$8.49
15
PIN, COTTER
91490-20025-00
$1.99
16
STOPPER 1
8ES-23743-00-00
Unavailable
17
STEERING KNUCKLE ASSY (LEFT)
8ES-23501-10-00
Unavailable
18
BUSH, SOLID
90381-25115-00
Unavailable
19
BUSH, SOLID
90381-15N50-00
Unavailable
20
BUSH, SOLID
90381-18N51-00
Unavailable
21
NIPPLE, GREASE
93700-06M03-00
Unavailable
22
STEERING KNUCKLE ASSY (RIGHT)
8ES-23502-10-00
Unavailable
23
BUSH, SOLID
90381-25115-00
Unavailable
24
BUSH, SOLID
90381-15N50-00
Unavailable
25
BUSH, SOLID
90381-18N51-00
Unavailable
26
NIPPLE, GREASE
93700-06M03-00
Unavailable
27
COLUMN, SKI ASSY
8ES-23803-00-00
Unavailable
28
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
29
ARM, OUTSIDE 1
8FN-23851-00-00
Unavailable
30
ARM, OUTSIDE 2
8FN-23852-00-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD
90110-08104-00
Unavailable
32
NUT, SELF-LOCKING
95602-08200-00
Unavailable
33
CAP, CASE
3YK-22472-40-00
Unavailable
34
FRONT UPPER ARM COMP. (LEFT)
8GS-23540-10-00
Unavailable
35
BUSH, SOLID
90381-15N50-00
Unavailable
36
NIPPLE, GREASE
93700-06M03-00
Unavailable
37
FRONT UPPER ARM COMP. (RIGHT)
8GS-23550-10-00
Unavailable
38
BUSH, SOLID
90381-15N50-00
Unavailable
39
NIPPLE, GREASE
93700-06M03-00
Unavailable
40
BOLT, FLANGE
90105-10230-00
Unavailable
41
NUT, S/L FLANGE
95602-10200-00
$4.82
42
COLLAR
90387-10099-00
Unavailable
43
BOLT
90109-10056-00
Unavailable
44
NUT, S/L FLANGE
95602-10200-00
$4.82
45
WASHER, PLATE
90201-10052-00
$8.49
46
WASHER
90209-15N50-00
Unavailable
47
FRONT LOWER ARM COMP. (LEFT)
8GS-23570-10-00
Unavailable
48
BUSH, SOLID
90381-16N51-00
Unavailable
49
NIPPLE, GREASE
93700-06M03-00
Unavailable
50
FRONT LOWER ARM COMP. (RIGHT)
8GS-23580-10-00
Unavailable
51
BUSH, SOLID
90381-16N51-00
Unavailable
52
NIPPLE, GREASE
93700-06M03-00
Unavailable
53
BOLT, FLANGE
90105-12078-00
Unavailable
54
NUT, SELF-LOCKING
95602-12200-00
Unavailable
55
COLLAR
90387-12054-00
Unavailable
56
BOLT, UNION
90401-10045-00
Unavailable
57
NIPPLE, GREASE
93700-06M03-00
Unavailable
58
NUT, S/L FLANGE
95602-10200-00
$4.82
59
WASHER, PLATE
90201-10052-00
$8.49
60
WASHER
90209-15N50-00
Unavailable
61
WASHER, PLATE
90201-12032-00
Unavailable
62
ABSORBER ASSY 1
8LP-2376A-21-00
Unavailable
63
LABEL, WARNING
4AA-22259-60-00
Unavailable
64
BOLT, WASHER BASED (4K0)
90105-10169-00
Unavailable
65
BOLT, WASHER BASED(59V)
90105-10392-00
Unavailable
66
NUT, S/L FLANGE
95602-10200-00
$4.82
67
COLLAR
90387-10N59-00
Unavailable
68
WASHER, PLATE
90201-10052-00
$8.49
