- VK1NFPJS (VK PROFESSIONAL II) 8LP20 2018
GUARD LUGGAGE BOX

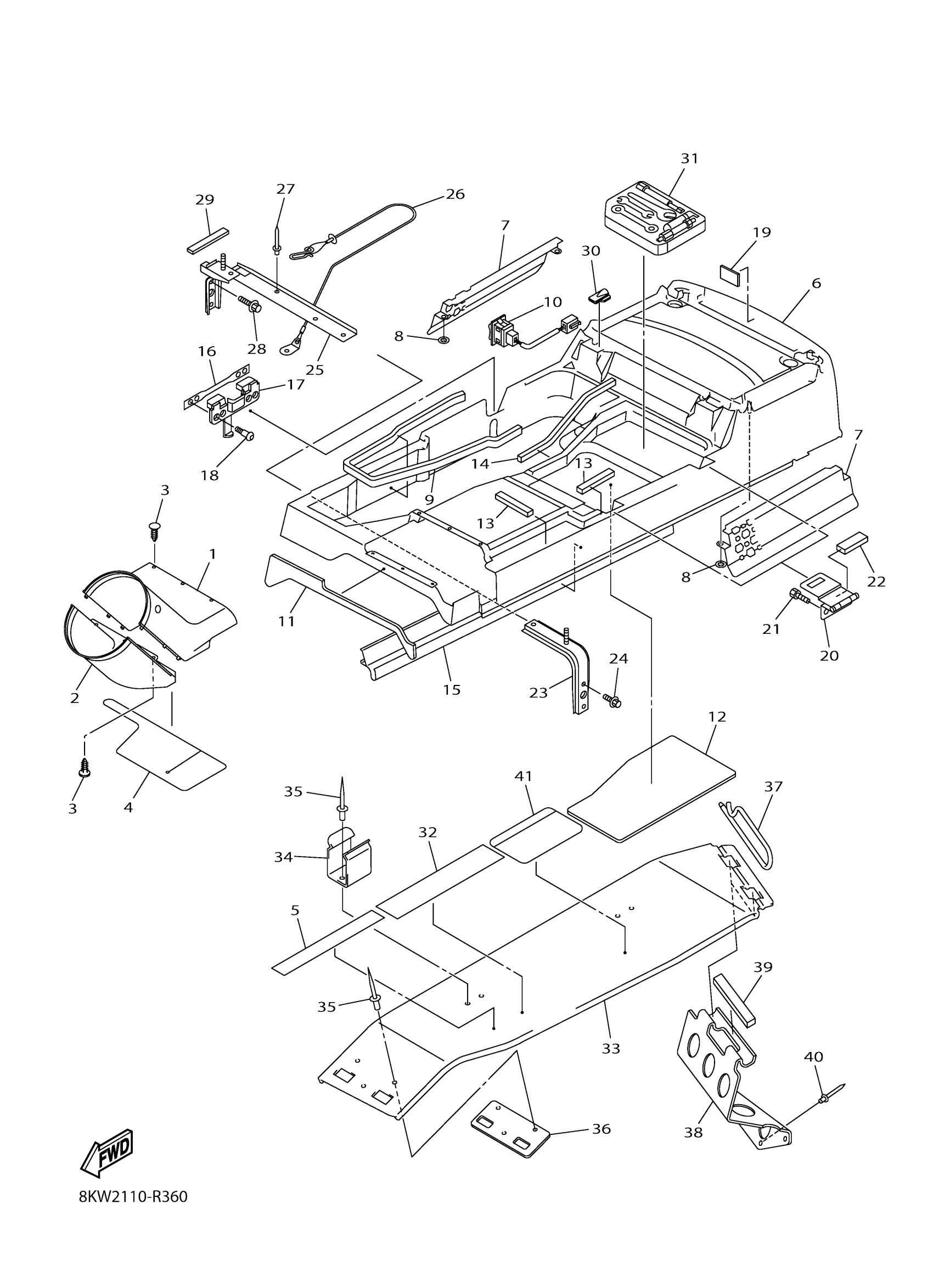

Yamaha VK1NFPJS (VK PROFESSIONAL II) 8LP20 2018 GUARD LUGGAGE BOX Diagram
#
1
COVER 1
8KW-1246A-00-00
$32.99
2
COVER 2
8KW-1246E-00-00
$31.99
3
RIVET(81E)
90269-05055-00
$8.49
4
LINING, SHROUD 1
8KW-77261-00-00
$18.99
5
LABEL, CAUTION
8HF-1417E-00-00
$1.91
6
LUGGAGE BOX ASSY
8FN-77390-11-00
Unavailable
7
LOUVER 3
8FN-77133-00-00
$32.99
8
NUT, SPRING(8AJ)
90183-05068-00
$10.49
9
INSULATOR
8EN-83669-00-00
$5.49
10
SWITCH
8ET-82917-00-00
Unavailable
11
LINING, SHROUD 2
8FN-77262-00-00
$18.99
12
LINING, SHROUD 3
8FN-77263-00-00
$76.99
13
SEAL 3
8FN-241A3-00-00
$1.49
14
SEAL 4
8FN-241A4-00-00
Unavailable
15
TRIM 1
8FN-2196T-00-00
Unavailable
16
BAR, SEAT LEVER
8FN-2478C-00-00
Unavailable
17
DAMPER, SEAT
8FN-24723-00-00
Unavailable
18
BOLT
90111-05020-00
Unavailable
19
DAMPER
5TG-84163-00-00
Unavailable
20
HINGE ASS'Y
8FN-24772-00-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-06043-00
Unavailable
22
SEAL 2
8FN-2414E-00-00
Unavailable
23
BRACKET, FUEL TANK 1
8FN-2194N-01-00
Unavailable
24
BOLT, FLANGE
95817-08014-00
Unavailable
25
BRACKET, FUEL TANK 2
8FN-2194R-01-00
Unavailable
26
CABLE, SEAT LOCK
8FN-2478E-00-00
Unavailable
27
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
28
BOLT, FLANGE
95817-08014-00
Unavailable
29
SEAL 3
8FN-241A3-00-00
$1.49
30
GROMMET
8FN-24742-00-00
Unavailable
31
TOOL KIT
8KW-28100-00-00
Unavailable
32
LABEL 1
8JD-47578-00-00
Unavailable
33
GUARD, DRIVE
8FA-77311-02-00
Unavailable
34
STAY, BELT
8CR-77338-00-00
Unavailable
35
RIVET, BLIND
90267-48010-00
Unavailable
36
PROTECTOR
8FA-77373-00-00
Unavailable
37
PIN
8CR-77384-01-00
Unavailable
38
HOOK
8FN-21973-00-00
Unavailable
39
DAMPER 1
8CR-77319-00-00
Unavailable
40
RIVET, BLIND
90267-47195-00
Unavailable
41
LABEL, WARNING 2
8BD-77762-00-00
Unavailable
