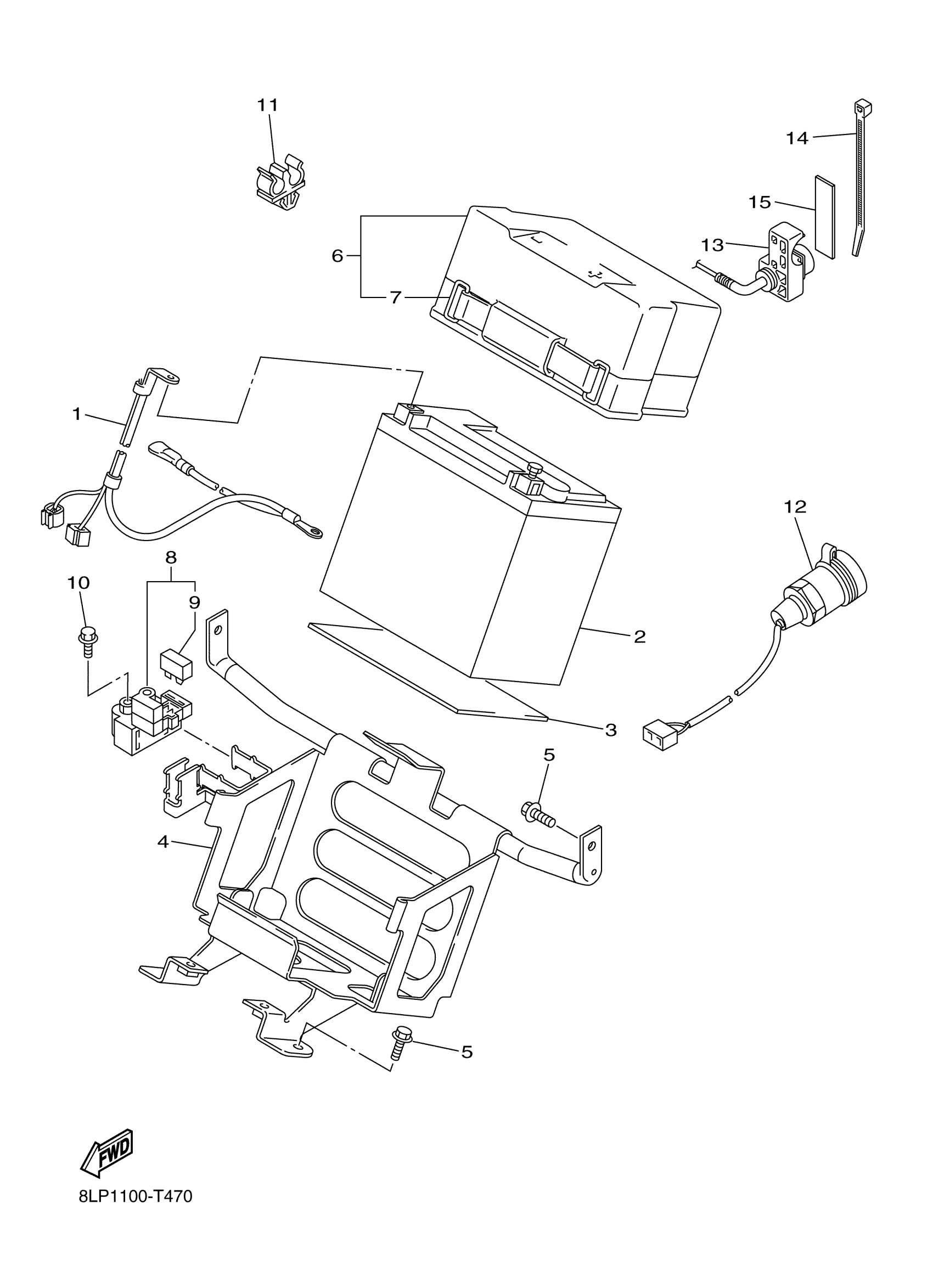

Yamaha VK1NFPJS (VK PROFESSIONAL II) 8LP20 2018 ELECTRICAL 2 Diagram

#

Description
Price

1

WIRE, MINUS LEAD

8LP-82116-00-00

$54.29

2

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$163.95

3

SEAT, BATTERY

8FA-82122-00-00

Unavailable

4

BRACKET, BATTERY

8KW-2199G-00-00

Unavailable

5

BOLT, FLANGE

95814-08016-00

$6.22

6

COVER, BATTERY

8FA-82129-00-00

$35.83

7

BAND, BATTERY

8DM-82131-10-00

$11.89

8

STARTER RELAY ASSY

8HG-81940-00-00

$102.99

9

FUSE (10A)

42X-82151-00-00

$2.07

10

BOLT, FLANGE

95022-06008-00

$5.84

11

CLAMP(87A)

90464-08126-00

$1.82

12

TERMINAL COMP.

8FP-8254B-00-00

Unavailable

13

TERMINAL COMP.

8HF-8254B-00-00

$112.27

14

CLAMP(3XW)

90464-35132-00

$6.77

15

DAMPER

8HF-84527-00-00

Unavailable
