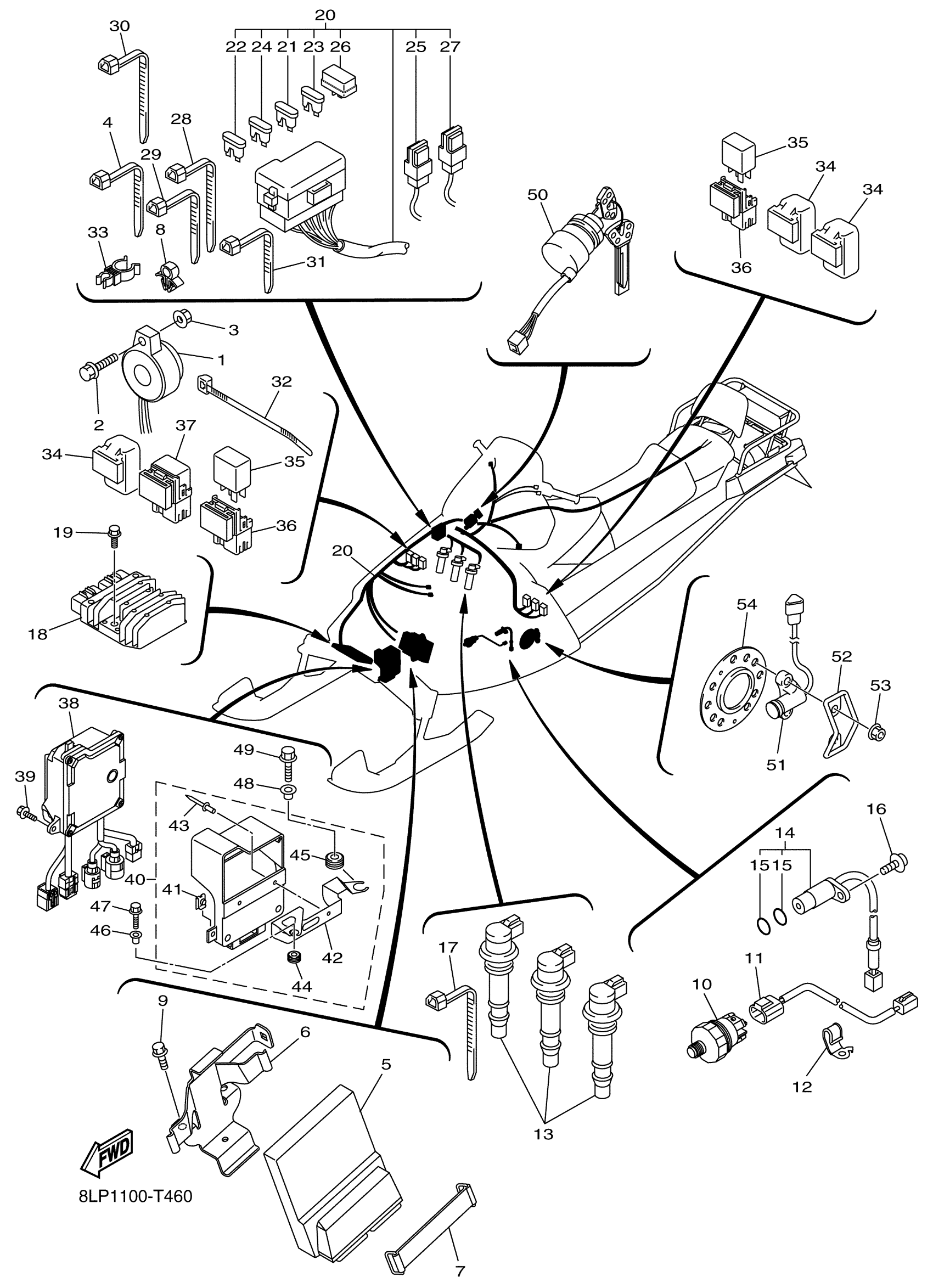

Yamaha VK1NFPJS (VK PROFESSIONAL II) 8LP20 2018 ELECTRICAL 1 Diagram
#
1
BUZZER
8GL-83383-00-00
Unavailable
2
SCREW, WITH WASHER
90159-05035-00
$8.49
3
NUT, FLANGE
95702-05500-00
$0.38
4
CLAMP(4FM)
90464-15195-00
$4.41
5
ENGINE CONTROL UNIT ASSY
8LP-8591A-00-00
$817.99
6
BRACKET, UNIT
8KW-85991-00-00
Unavailable
7
BAND, BATTERY
2T4-82131-00-00
$8.99
8
CLAMP
90464-07016-00
Unavailable
9
BOLT, FLANGE
95817-06016-00
$2.75
10
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
11
WIRE, SUB-LEAD
8GL-82318-00-00
$26.99
12
CLAMP
90465-08030-00
Unavailable
13
IGNITION COIL ASSY
8ES-82310-00-00
$159.99
14
PICK-UP ASSY
8GL-81670-01-00
$140.99
15
O-RING 1
5VY-8A8E1-00-00
$6.99
16
BOLT, HEXAGON SOCKET HEAD
90110-06219-00
Unavailable
17
CLAMP(4FM)
90464-15195-00
$4.41
18
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
Unavailable
19
. BOLT, FLANGE
90105-06185-00
Unavailable
20
WIRE HARNESS ASSY
8LP-82590-00-00
Unavailable
21
. FUSE (3A)
67F-82151-30-00
Unavailable
22
. FUSE (10A)
67F-82151-40-00
Unavailable
23
FUSE (15A)
67F-82151-50-00
Unavailable
24
FUSE
5JJ-82151-20-00
Unavailable
25
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
26
DIODE ASSY
4WA-81980-00-00
Unavailable
27
FUSE
4FM-82151-00-00
Unavailable
28
CLAMP(4FM)
90464-15195-00
$4.41
29
CLAMP(4FM)
90464-15195-00
$4.41
30
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
31
CLAMP
90464-13077-00
Unavailable
32
CLAMP(3XW)
90464-35132-00
Unavailable
33
CLAMP
90464-14005-00
Unavailable
34
RELAY ASSY
5DM-81950-01-00
Unavailable
35
RELAY ASSY (8HG-10
8HG-81951-10-00
Unavailable
36
HOLDER, RELAY
8HG-81952-00-00
Unavailable
37
RELAY ASSY
8GN-81950-00-00
Unavailable
38
POWER STRG. CONT. UNIT ASSY
8HG-859A0-11-00
Unavailable
39
BOLT, FLANGE
95817-06020-00
Unavailable
40
BRACKET SUB ASSY (LEFT)
8LP-2740A-00-00
Unavailable
41
NUT, SPRING(4ES)
90183-06069-00
Unavailable
42
BRACKET 1
8LP-2836A-00-00
Unavailable
43
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
44
GROMMET
90480-13003-00
Unavailable
45
GROMMET(1AA)
90480-18435-00
Unavailable
46
COLLAR (11G)
90387-061F9-00
Unavailable
47
BOLT, FLANGE
95822-06025-00
Unavailable
48
COLLAR
90387-08016-00
Unavailable
49
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
50
MAIN SWITCH ASSY
8HV-82510-00-00
Unavailable
51
SENSOR, SPEED
8GK-83755-12-00
Unavailable
52
COVER 2
8GC-2198G-00-00
Unavailable
53
NUT, NYLON
95717-08300-00
Unavailable
54
HOUSING, FRONT AXLE
8EK-47551-00-00
Unavailable
