- VK10ZR (RS VIKING PROFESSIONAL) 8GS90 2010
TRACK SUSPENSION 1

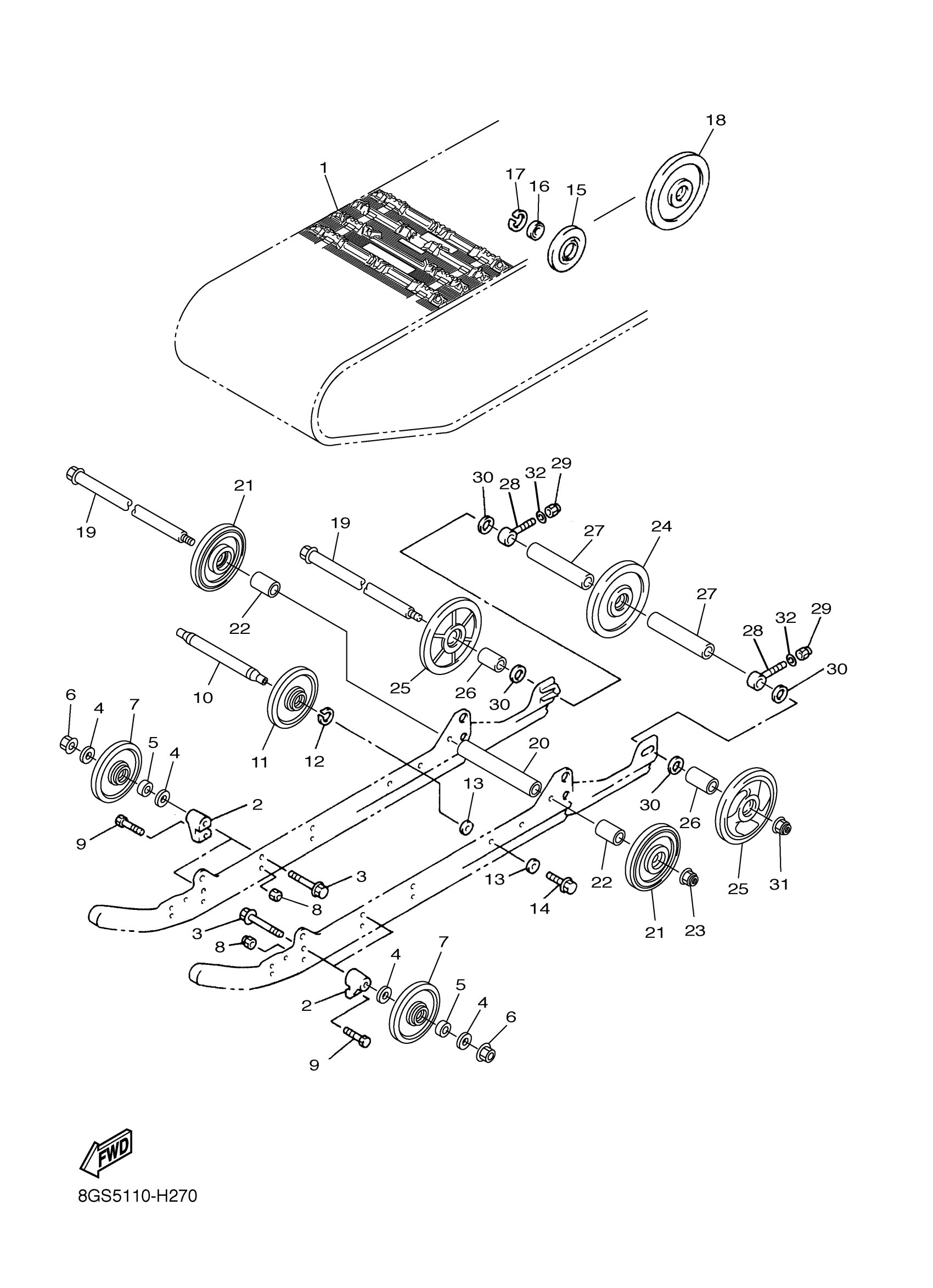

Yamaha VK10ZR (RS VIKING PROFESSIONAL) 8GS90 2010 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8FN-47110-01-00
Unavailable
2
BRACKET 7
8CM-47419-10-00
$39.99
3
BOLT, FLANGE
95817-10080-00
$5.60
4
WASHER, PLATE(8CM)
90201-100S0-00
$5.60
5
COLLAR
90387-10031-00
$21.99
6
NUT, SELF-LOCKING
90185-10170-00
$9.49
7
SUSPENSION WHEEL ASSY
8ES-47310-00-00
$77.99
8
NUT, SELF-LOCKING
90185-08169-00
$8.49
9
BOLT(8CM)
90101-08774-00
$7.49
10
SHAFT 4
8FN-47486-00-00
Unavailable
11
SUSPENSION WHEEL ASSY
8ES-47310-00-00
$77.99
12
CIRCLIP(JF7)
99009-25400-00
$8.49
13
WASHER, PLATE (17K)
90201-106F2-00
$10.49
14
BOLT, FLANGE
95817-10030-00
$8.49
15
SUSPENSION WHEEL COMP.
8AC-47320-00-00
$103.99
16
BEARING(8AB)
93306-00444-00
Unavailable
17
CIRCLIP(5U8)
99009-42500-00
Unavailable
18
GUIDE WHEEL ASSY
8AC-47550-00-00
Unavailable
19
REAR AXLE COMP.
8JN-47520-00-00
Unavailable
20
COLLAR 1
83R-47469-00-00
Unavailable
21
SUSPENSION WHEEL ASSY
8FM-47310-00-00
Unavailable
22
COLLAR
90387-20022-00
Unavailable
23
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
24
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
25
WEIGHT
8EK-47550-11-00
Unavailable
26
COLLAR
90387-20022-00
Unavailable
27
COLLAR
90387-20023-00
Unavailable
28
COLLAR 3
8DM-47479-00-00
Unavailable
29
NUT, NYLON
95707-10300-00
Unavailable
30
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
31
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
32
WASHER(6TA)
92907-10600-00
Unavailable
