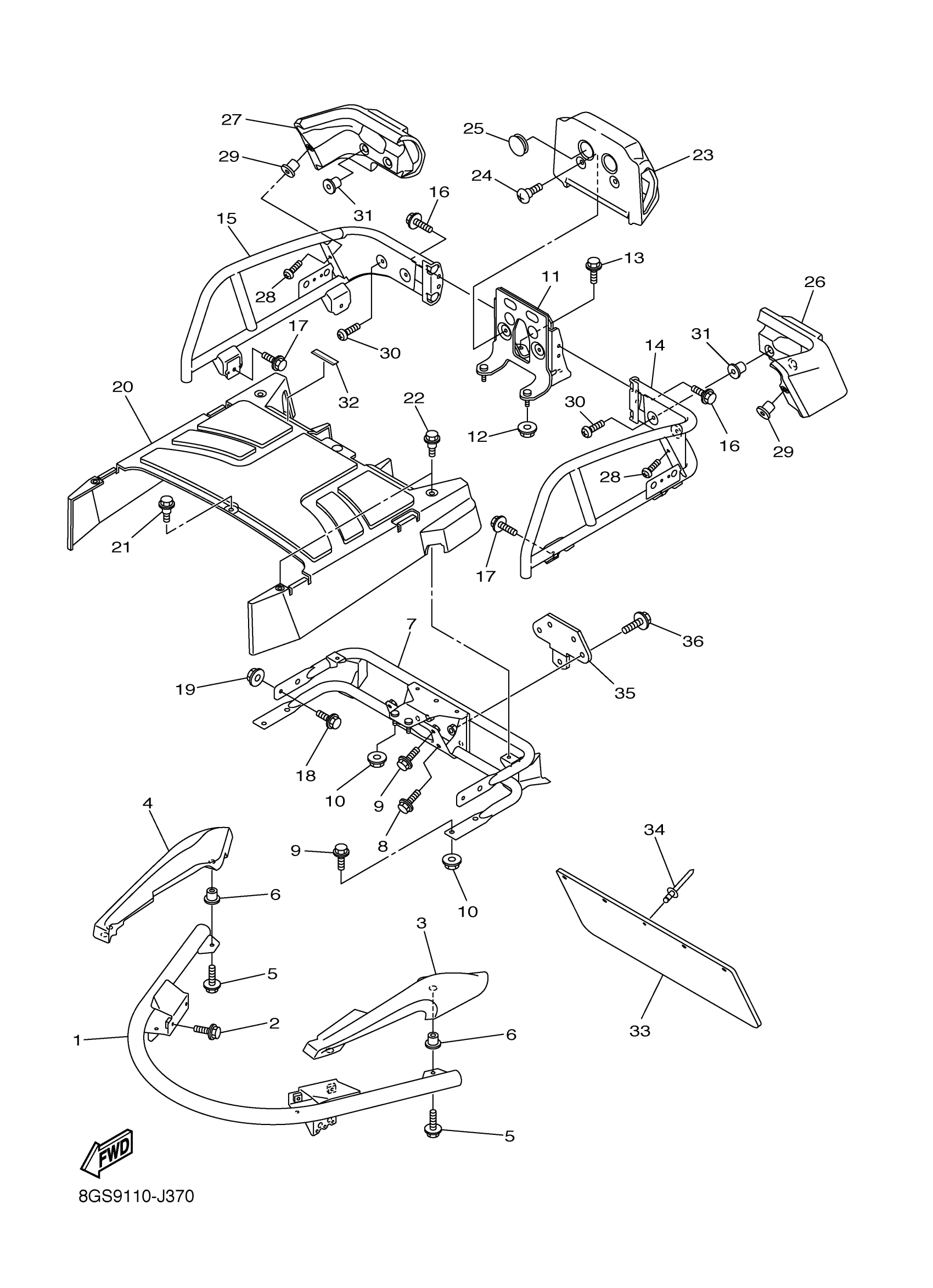

Yamaha VK10ZR (RS VIKING PROFESSIONAL) 8GS90 2010 BUMPER Diagram
#
Description
Price
1
BUMPER, FRONT 1
8FN-77511-10-00
Unavailable
3
END, BUMPER
8FN-77523-00-00
Unavailable
4
END, BUMPER
8FN-77524-00-00
Unavailable
14
BUMPER, REAR 3
8FN-77543-10-00
Unavailable
15
BUMPER, REAR 4
8FN-77544-10-00
Unavailable
18
BOLT, FLANGE
95817-06014-00
Unavailable
19
NUT, FLANGE
95702-06500-00
Unavailable
20
PROTECTOR 1
8FN-77551-00-00
Unavailable
21
BOLT
90109-06272-00
Unavailable
22
BOLT
90109-06172-00
Unavailable
23
PROTECTOR 2
8FN-77552-00-00
Unavailable
24
SCREW, BINDING
90154-06009-00
Unavailable
25
PLUG(XA1)
90338-28242-00
Unavailable
26
PROTECTOR 3
8FN-77553-00-00
Unavailable
27
PROTECTOR 4
8FN-77554-00-00
Unavailable
28
SCREW, BIND (705)
98980-06016-00
Unavailable
30
SCREW, BIND(J50)
98980-08020-00
Unavailable
31
NUT
90179-08011-00
Unavailable
32
EMBLEM
8FM-24897-01-00
Unavailable
33
FLAP
83R-77595-00-00
Unavailable
34
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
35
BRACKET, HITCH 2
84R-77592-00-00
Unavailable
36
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
