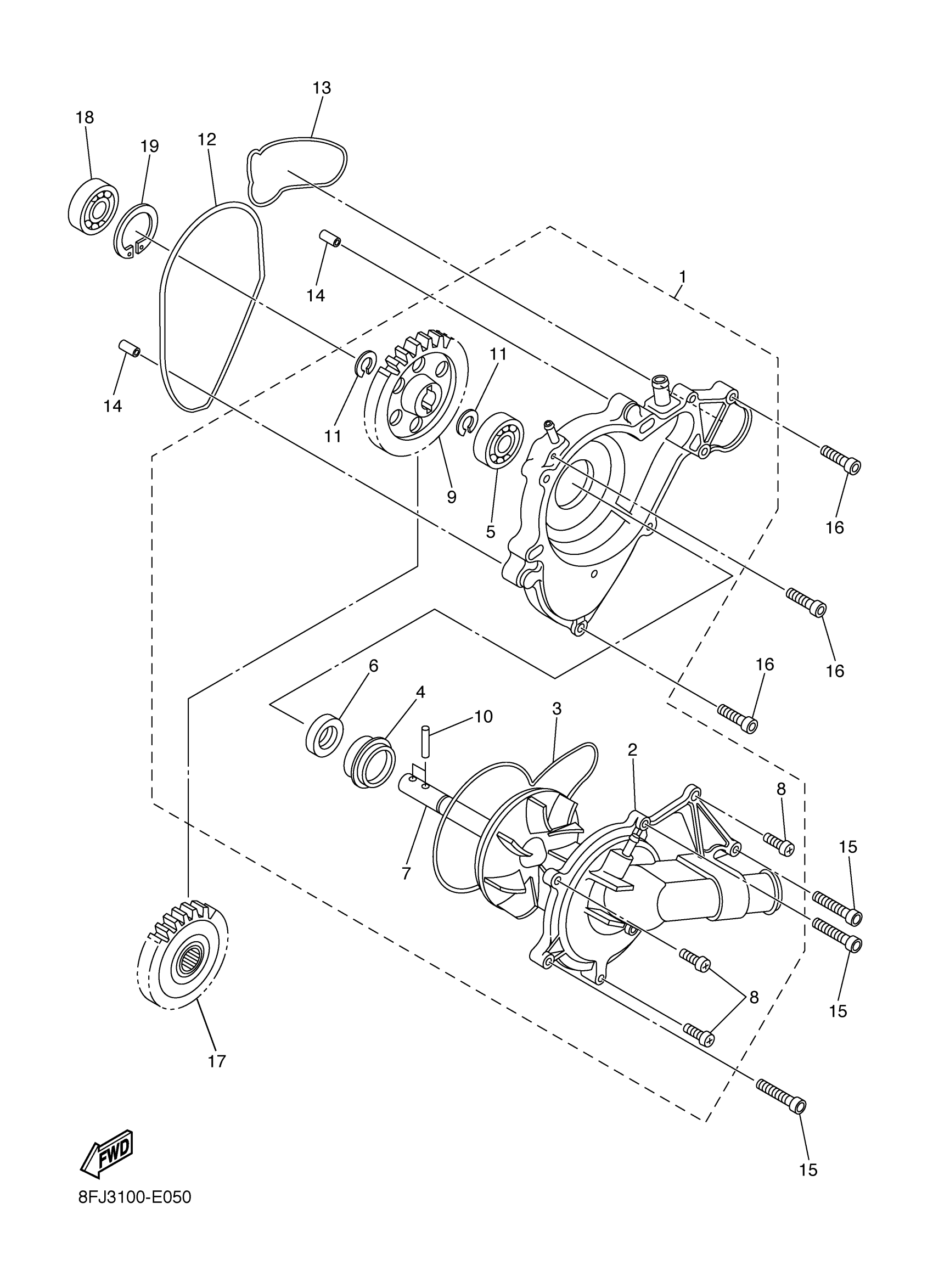

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

8ES-12420-02-00

$368.91

2

COVER, HOUSING

8ES-12422-00-00

$36.62

3

GASKET, HOUSING COVER 1

8ES-12427-00-00

$15.04

4

SEAL, MECHANICAL

8ES-12438-00-00

$39.59

5

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$31.81

6

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

$9.89

7

IMPELLER SHAFT ASSY

8ES-12450-01-00

$31.95

8

SCREW, PAN HEAD

98580-06016-00

$2.90

9

GEAR, IMPELLER SHAFT

8ES-12459-01-00

$72.42

10

PIN, DOWEL (409)

93604-16092-00

$1.94

11

CIRCLIP(2R6)

99001-08600-00

$6.17

12

GASKET

8ES-12435-00-00

$12.46

13

GASKET

8ES-12434-00-00

$3.57

14

PIN, DOWEL

99530-08012-00

$6.62

15

TORNILLO ALLEN

91312-06040-00

$6.32

16

BOLT,SOCKET

91317-06025-00

$2.05

17

GEAR, DRIVE

8ES-12436-00-00

$52.43

18

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$31.81

19

CIRCLIP(2FL)

93420-26077-00

$5.62
