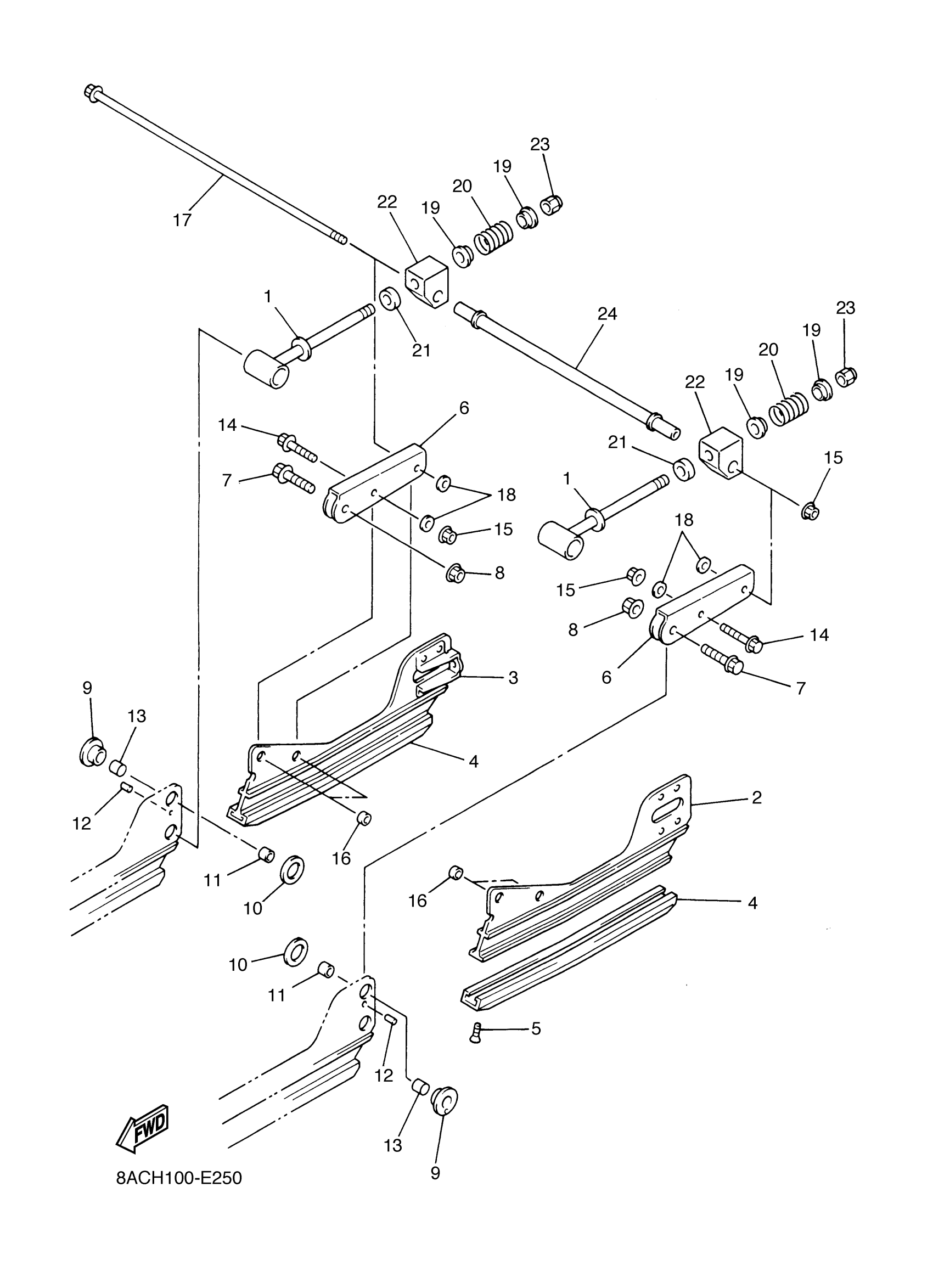

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 TRACK SUSPENSION 3 Diagram

#

Description
Price

1

SHAFT, PIVOT

83R-47337-00-00

$34.69

2

FRAME, SLIDING

8FM-W4741-10-00

$119.20

3

FRAME, SLIDING

8FM-W4741-10-00

$119.20

4

RUNNER, SLIDING 4

8AC-47424-00-00

$23.32

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

6

ARM, PIVOT 3

8FM-47333-00-00

$30.68

7

BOLT, FLANGE

95817-10030-00

$6.17

8

NUT, SELF-LOCKING (8U7)

90185-10115-00

$6.82

9

COLLAR

90387-1815A-00

$33.43

10

WASHER, PLATE

90202-22238-00

$11.71

11

COLLAR

90387-1014Y-00

$8.99

12

PIN. SPRING(656)

91690-30008-00

$6.85

13

BUSH, SOLID (22W)

90380-16109-00

$10.68

14

BOLT, FLANGE

95817-08035-00

$6.68

15

NUT, SELF-LOCKING

90185-08169-00

$7.09

16

COLLAR(3BN)

90387-082J1-00

$2.32

17

BOLT, WASHER BASED(83R)

90105-08483-00

$11.88

18

WASHER (1T1)

90201-08649-00

$6.29

19

SEAT, SPRING 1

83R-23768-00-00

$5.46

20

SPRING, COMPRESSION(83R)

90501-407E4-00

$9.18

21

SPRING

83R-47335-00-00

$10.78

22

HOOK 1

83R-47446-00-00

$22.55

23

NUT, NYLON

95717-12300-00

$5.85

24

COLLAR 2

8AC-47478-00-00

$46.69
