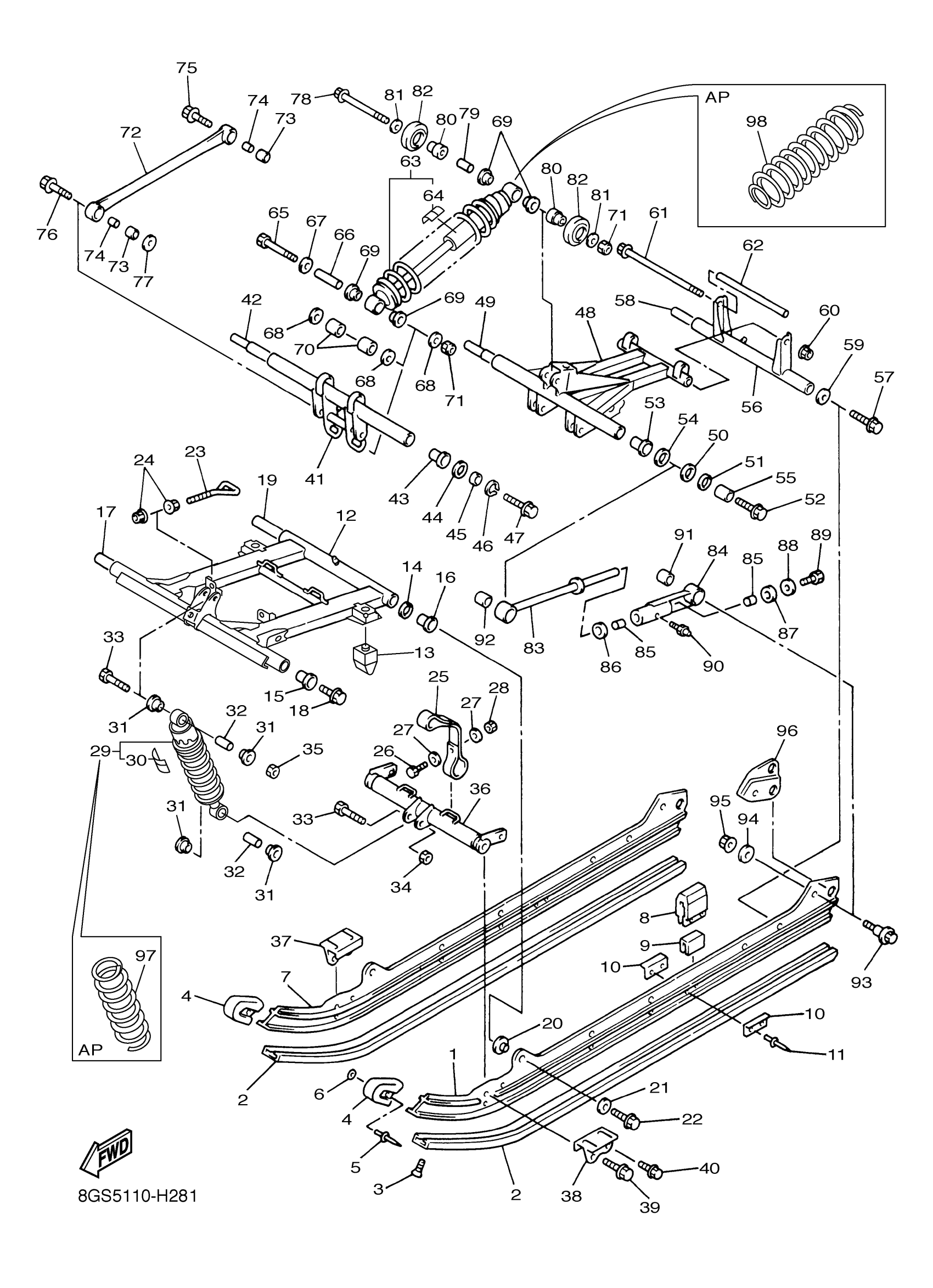

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

FRAME, SLIDING 1

8AC-47411-10-00

Unavailable

2

HYFAX,BLACK

8AC-47421-00-XX

$19.79

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

4

RUNNER, SLIDING 2

8ED-47422-00-00

$42.54

5

RIVET BLIND

90267-48194-00

$2.20

6

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

7

FRAME, SLIDING 4

8AC-47414-10-00

Unavailable

8

DAMPER 2

8AC-47457-00-00

$15.03

9

SPACER

8AC-47341-00-00

$37.55

10

PLATE, DAMPER

8AX-47458-00-00

$8.08

11

RIVET, BLIND

90267-48199-00

$2.62

12

ARM, PIVOT 1

8GS-47331-00-00

Unavailable

13

DAMPER 1

8FN-47456-00-00

$14.68

14

WASHER, PLATE(8CJ)

90201-210U0-00

$7.77

15

BUSH

90386-25002-00

$30.52

16

BUSH, SOLID(8CJ)

90381-19111-00

$11.82

17

SHAFT 1

8GS-47465-00-00

$115.23

18

BOLT (8V0)

90109-10771-00

$5.00

19

SHAFT 3

83R-47485-02-00

$72.25

20

COLLAR (8U7)

90387-105G6-00

$6.48

21

WASHER, PLATE (17K)

90201-106F2-00

$7.66

22

BOLT, FLANGE

95817-10030-00

$6.17

23

HOOK 3

8CR-47448-00-00

$14.94

24

NUT, FLANGE(JN5)

95707-08500-00

$1.49

25

STOPPER 1

8CV-47495-00-00

$53.74

26

BOLT, HEXAGON

97017-06025-00

$2.98

27

WASHER, PLATE

90201-06747-00

$6.17

28

NUT, NYLON

95707-06300-00

$3.20

29

SHOCK ABSORBER 2

8FN-47481-30-00

$443.12

30

LABEL, WARNING

4AA-22259-60-00

$6.02

31

BUSH, SOLID(8CM)

90381-14101-00

$7.48

32

COLLAR (8U7)

90387-105G5-00

$7.35

33

BOLT(88R)

90101-10738-00

$6.28

34

NUT, SELF LOCKING (23X)

90185-10120-00

$4.91

35

NUT, U

95617-10100-00

$6.18

36

BRACKET 4

8AC-47418-00-00

Unavailable

37

BRACKET 5

8DF-47463-01-00

Unavailable

38

BRACKET 6

8DF-47464-01-00

Unavailable

39

BOLT, FLANGE

95817-10030-00

$6.17

40

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

41

BRACKET 2

8AC-47416-01-00

$131.69

42

SHAFT 6

8FN-47488-00-00

$124.18

43

BUSH, SOLID(8CM)

90381-22099-00

$9.85

44

WASHER, PLATE(1KE)

90201-207J5-00

$2.32

45

COLLAR(8AB)

90387-2004V-00

$9.15

46

CIRCLIP(1AR)

99009-20400-00

$6.17

47

BOLT (8V0)

90109-10771-00

$5.00

48

ARM, PIVOT 2

8GS-47332-00-00

$263.71

49

SHAFT 2

8AC-47475-00-00

$137.72

50

WASHER, PLATE(2JG)

90201-266L1-00

$12.86

51

WASHER, PLATE(8CJ)

90201-250T6-00

$7.43

52

BOLT (8V0)

90109-10771-00

$5.00

53

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

54

WASHER, PLATE(1YW)

90201-286K9-00

$5.68

55

COLLAR

90387-2515E-00

Unavailable

56

BRACKET 3

8AC-47417-00-00

$61.94

57

BOLT, FLANGE

95817-10030-00

$6.17

58

SHAFT 3

83R-47485-02-00

$72.25

59

WASHER PLATE (789)

90201-10136-00

$7.26

60

NUT, SELF-LOCKING

90185-08169-00

$7.09

61

BOLT, FLANGE

95827-08220-00

Unavailable

62

COLLAR (8U7)

90387-083G6-00

$9.75

63

SHOCK ABSORBER

8FN-47480-30-00

$548.99

64

LABEL, WARNING

4AA-22259-60-00

$6.02

65

BOLT, ADJUSTING

8AC-4631K-00-00

$32.32

66

COLLAR(8CJ)

90387-1009S-00

$18.00

67

WASHER, PLATE

90201-10039-00

$6.42

68

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

69

BUSH, SOLID(8CM)

90381-14101-00

$7.48

70

COLLAR(8CM)

90387-1404R-00

$28.72

71

NUT, U

95617-10100-00

$6.18

72

ROD, RELAY

8CR-47494-01-00

Unavailable

73

BUSH, SOLID(8CJ)

90381-14109-00

$7.60

74

COLLAR(87A)

90387-100X3-00

$3.49

75

BOLT, FLANGE

95817-10035-00

$6.85

76

BOLT, FLANGE

95814-10040-00

$3.69

77

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

78

BOLT, WASHER BASED (2H7)

90105-10105-00

$10.82

79

COLLAR (8U7)

90387-105G5-00

$7.35

80

COLLAR 2

8AC-47366-00-00

$20.11

81

WASHER PLATE (789)

90201-10136-00

$7.26

82

SUSPENSION WHEEL ASSY

8AC-47310-10-00

$102.43

83

ROD, CONTROL 1

8AC-4745A-10-00

Unavailable

84

ROD, CONTROL 2

8CR-4745B-00-00

Unavailable

85

BUSH, BIMETAL FORMED(8CJ)

90384-16251-00

$6.17

86

WASHER, PLATE(8CJ)

90202-16229-00

$1.78

87

WASHER, PLATE(8BT)

90202-16232-00

$6.82

88

WASHER, PLATE (17K)

90201-106F2-00

$7.66

89

BOLT(6TD)

97017-10025-00

$6.82

90

NIPPLE, GREASE

93700-06M03-00

$7.15

91

BUSH, SOLID(8CM)

90380-22232-00

$20.92

92

BUSH, SOLID(8CJ)

90380-28235-00

$24.80

93

SCREW, REAR PIVOT

8DF-47367-09-00

$19.29

94

WASHER, PLATE

90201-101U2-00

$5.37

95

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

96

BRACKET, ARM PIVOT

8AC-47349-00-00

Unavailable

97

SPRING

8FN-47336-00-00

$67.40

97

SPRING

8FN-47336-10-00

$66.71

97

SPRING

8FN-47336-20-00

$73.06

98

SPRING 1

8FN-47489-00-00

$394.22
