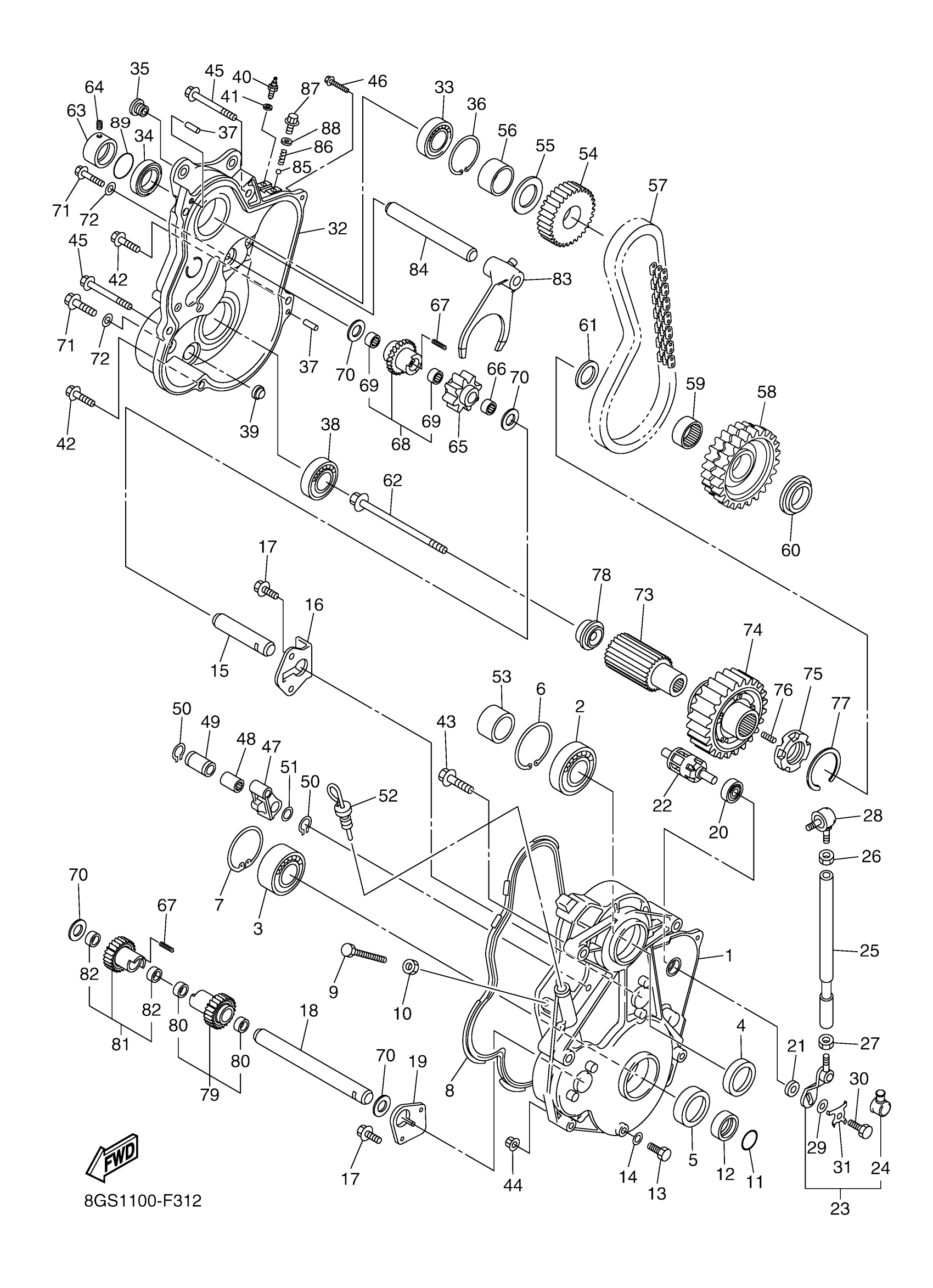

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 TRACK DRIVE 2 Diagram

#

Description
Price

1

HOUSING, CHAIN

8GS-47541-00-00

$462.99

2

BEARING (5X5)

93306-20627-00

$66.08

3

BEARING

93304-20511-00

$152.08

4

OIL SEAL

93102-30012-00

$29.09

5

OIL SEAL

93102-35010-00

$19.52

6

CIRCLIP(MF1)

99009-62500-00

$6.23

7

CIRCLIP(26H)

99009-52500-00

$10.68

8

RING, HOUSING

8GS-47558-00-00

$57.74

9

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

10

NUT(6TD)

95337-10600-00

$6.98

11

O-RING (169)

93210-25071-00

$7.51

12

COLLAR(8CJ)

90387-2508C-00

$39.00

13

BOLT(8BC)

97007-08014-00

Unavailable

14

WASHER, SEAL(8AB)

90210-08017-00

$6.91

15

SHAFT, 1

8GS-1761A-00-00

$35.14

16

PLATE

8CW-47591-00-00

$11.85

17

BOLT, FLANGE

95817-06016-00

$1.49

18

SHAFT 2

8GS-1761E-00-00

$39.35

19

PLATE

8GS-47591-00-00

$17.38

20

BEARING(36F)

93306-00208-00

$36.68

21

OIL SEAL (3X3)

93102-15212-00

$7.34

22

CAM, SHIFT

8GS-18541-01-00

$189.28

23

LEVER

8GS-18191-00-00

$37.55

24

COVER, DUST

2H9-18154-00-00

$5.34

25

ROD, SHIFT

8GS-18115-00-00

$19.68

26

NUT(1KT)

90170-08358-00

$6.68

27

NUT, HEXAGON SMALL

95317-08700-00

$7.05

28

BALL, L (L.H)

3X3-18157-10-00

$28.31

29

WASHER, PLATE

90201-06099-00

$2.42

30

BOLT

90101-06049-00

Unavailable

31

WASHER, LOCK

8GS-47554-01-00

$14.35

32

HOUSING CAP SET

99999-04063-00

$638.12

33

BEARING

93306-20532-00

$56.05

34

OIL SEAL

93102-35010-00

$19.52

35

NUT(8CJ)

90179-10679-00

$6.71

36

CIRCLIP(26H)

99009-52500-00

$10.68

37

PIN, DOWEL (168)

93606-20044-00

$2.12

38

BEARING

93306-00711-00

$49.06

39

GAUGE, LEVEL

3Y1-15361-00-00

$25.51

40

NEUTRAL SWITCH ASSY

5LP-82540-01-00

$32.90

41

GASKET (1KH,1.0T)

90430-10148-00

$4.74

42

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

43

BOLT, FLANGE(4GB)

95817-10045-00

$4.52

44

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

45

BOLT,FLANGE

95817-10090-00

$6.86

46

BOLT, FLANGE

95817-06025-00

$1.46

47

HOLDER

8ES-47613-00-00

$41.32

48

BEARING

93311-32685-00

$62.54

49

COLLAR

90387-22005-00

$30.49

50

CIRCLIP

99009-26400-00

$6.94

51

WASHER, PLATE

90201-266P2-00

$2.62

52

LEVEL, OIL

8GS-47546-00-00

$23.03

53

COLLAR

90387-30005-00

$19.31

54

SPROCKET, CHAIN DRIVE

8FA-17682-00-00

$47.91

55

WASHER, CONICAL SPRING

90208-26002-00

$13.83

56

COLLAR

90387-26007-00

$29.28

57

CHAIN

94890-09068-00

$150.49

58

SPROCKET, CHAIN DRIVEN

8GS-47587-99-00

Unavailable

59

BEARING, CYLINDRICAL(8DA)

93317-33179-00

$43.08

60

COLLAR(8DA)

90387-2008G-00

$23.71

61

WASHER, PLATE(8DA)

90201-320S3-00

$7.34

62

BOLT, FLANGE

90105-10075-00

$9.91

63

COLLAR

90387-25018-00

$28.42

64

BOLT, SET

90113-06006-00

$3.60

65

SPROCKET, DRIVE

8FB-17692-00-00

$81.86

66

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

67

SPRING COMPRESSION278185450000

90501-06022-00

$6.17

68

REVERSE PINION ASSY.

8GS-1714A-01-00

$216.98

69

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

70

WASHER PLATE (3L6)

90201-16245-00

$8.51

71

BOLT, FLANGE

95817-06016-00

$1.49

72

WASHER, SEAL (7G5)

90210-06006-00

$5.72

73

JOURNAL 1

8GS-47571-00-00

$291.40

74

GEAR, REVERSE WHEEL 1

8GS-17243-01-00

$361.45

75

DOG, TRANSMISSION SHIFT

8CW-17492-00-00

$193.49

76

SPRING, COMPRESSION(8DA)

90501-066J5-00

$1.75

77

CIRCLIP(8DA)

93440-39175-00

$19.00

78

COLLAR

8GS-47564-00-00

$62.12

79

1ST WHEEL GEAR ASSY

8GS-17210-00-00

$263.22

80

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

81

1ST PINION GEAR ASSY

8GS-17110-01-00

$258.34

82

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

83

FORK, SHIFT 1

8GS-18511-00-00

$121.18

84

BAR, SHIFT FORK GUIDE 1

8GS-18531-00-00

$19.51

85

BALL

93503-08007-00

$2.35

86

SPRING, COMPRESSION (465)

90501-10353-00

$6.86

87

BOLT, FLANGE

90105-14003-00

$6.63

88

GASKET 256131670000

90430-14043-00

$6.46

89

O-RING (36R)

93210-25642-00

$8.66
