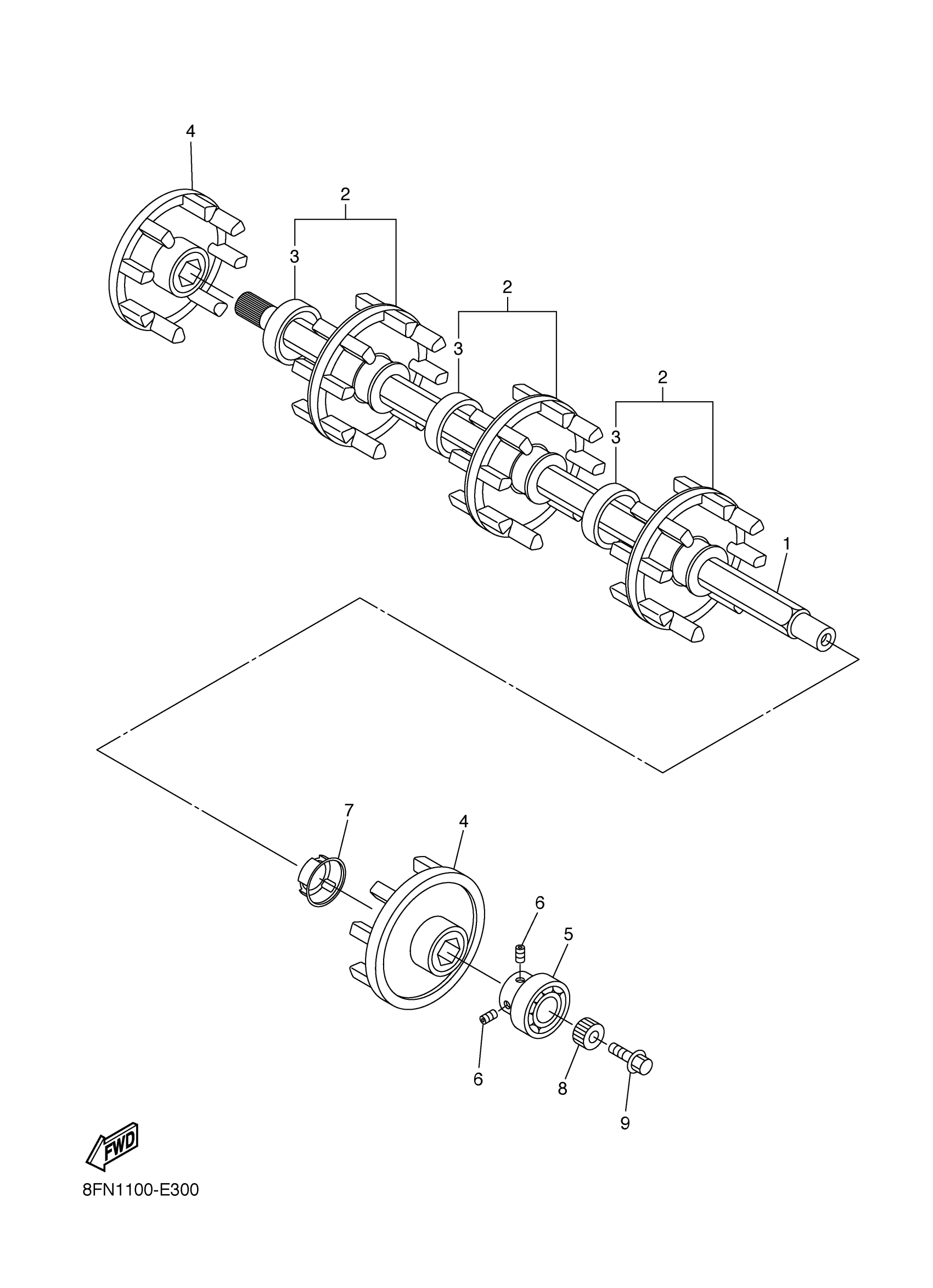

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 TRACK DRIVE 1 Diagram

#

Description
Price

1

AXLE, FRONT

8GS-47511-00-00

$328.22

2

WHEEL, SPROCKET 1

8FN-W4753-00-00

$72.75

3

COLLAR(83R)

90387-514Y2-00

$11.23

4

WHEEL, SPROCKET 2

8FN-47532-00-00

$53.02

5

BEARING(8CJ)

93306-20589-00

$51.47

6

BOLT, SET

90113-06006-00

$3.60

7

CAP

8FN-47377-00-00

$21.63

8

JOINT

8EK-47715-00-00

$29.53

9

BOLT, FLANGE(3GD)

95817-10025-00

$6.17
