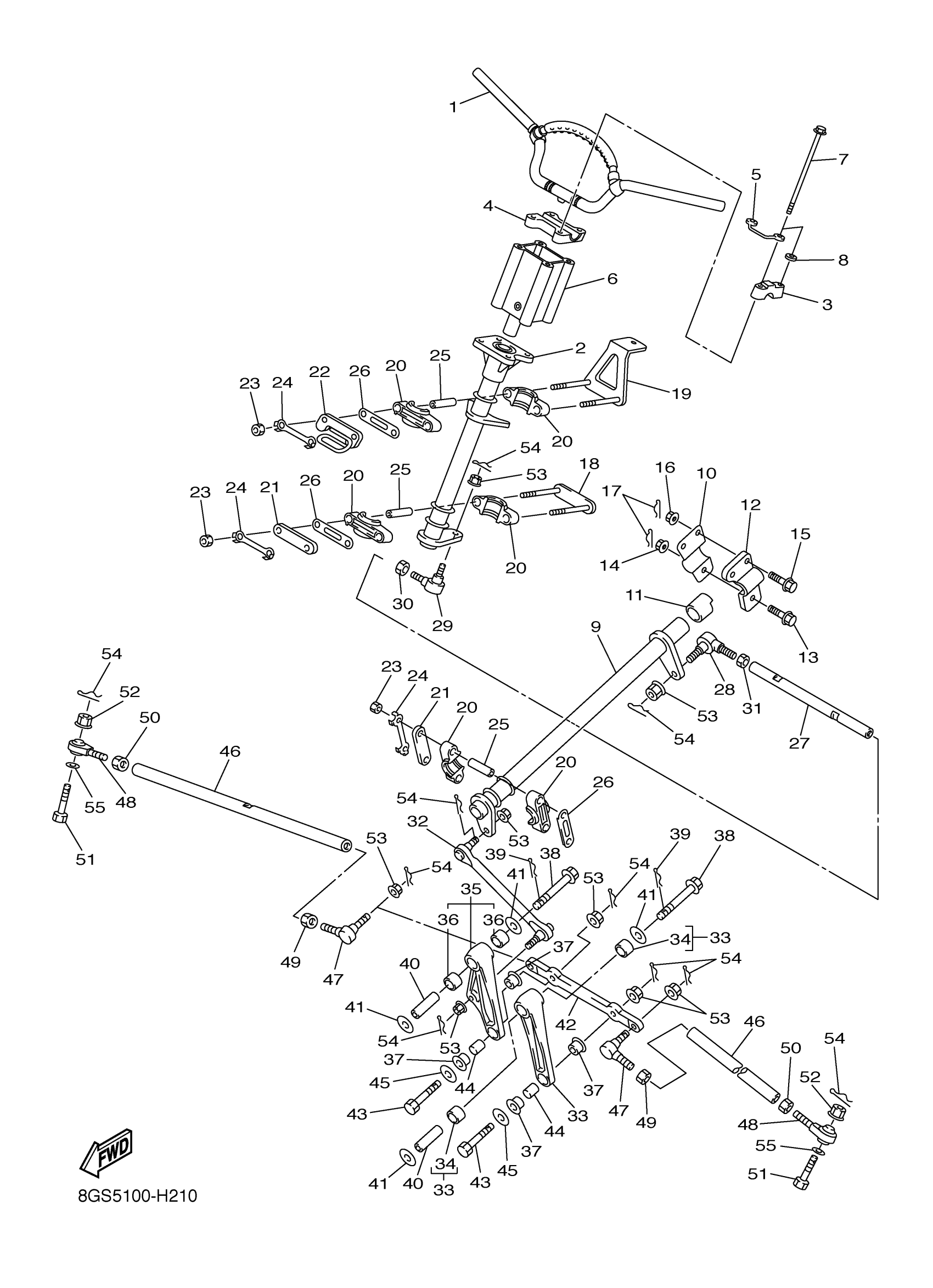

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 STEERING Diagram

#

Description
Price

1

HANDLE COMP.

8FN-26110-00-00

$400.62

2

COLUMN, STEERING 2

8FA-23813-01-00

$150.55

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

4

HOLDER, HANDLE LOWER

8ED-23442-00-00

$49.85

5

HOLDER

8DF-23857-00-00

$55.91

6

JOINT

8FK-2381B-00-00

Unavailable

7

BOLT, FLANGE

90105-08072-00

$3.38

8

WASHER, PLATE

90201-08020-00

$4.67

9

COLUMN, STEERING

8FA-23811-00-00

$84.42

10

COVER, STEERING

8FA-23818-02-00

$8.58

11

BEARING, STEERING UPPER

8FA-23873-01-00

$5.35

12

HOLDER 2

8FN-23867-00-00

$33.98

13

BOLT, FLANGE (2XJ)

90105-10549-00

$6.32

14

NUT, S/L FLANGE

95602-10200-00

$2.29

15

BOLT, WASHER BASED(JA1)

90105-08552-00

$3.78

16

NUT, SELF-LOCKING

95602-08200-00

$2.77

17

CLIP 136253750000

90468-12006-00

$5.10

18

HOLDER, BEARING

8FA-23872-00-00

$13.14

19

HOLDER, BEARING

8FN-2376H-00-00

$28.72

20

PLANE BEARING, STEERING

8FA-23812-00-00

$5.66

21

HOLDER 2

8FA-23867-00-00

$2.49

22

HOLDER, BEARING

8FN-23872-00-00

$44.34

23

NUT(6L2)

95333-08600-00

$3.20

24

WASHER, LOCK 1

1UY-23894-01-00

$6.86

25

COLLAR

8HF-2412G-00-00

$6.18

26

WASHER, PLAIN

8FA-23843-00-00

$3.25

27

ROD, STEERING

8FN-23828-00-00

$15.49

28

JOINT, UNIVERSAL 3

8CR-23847-00-00

$48.17

29

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

30

NUT (3WP1)

95317-10700-00

$6.17

31

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

32

ROD, STEERING RELAY

8FA-23821-00-00

$148.11

33

ARM PIVOT ASSY

8FN-2389K-00-00

$78.71

34

BUSH, FORMED

90383-17001-00

$9.38

35

PIVOT ARM ASSY 2

8FN-2389M-00-00

$131.45

36

BEARING

93317-41785-00

$39.23

37

BUSH, SOLID

90381-14001-00

$3.58

38

BOLT, FLANGE

90105-12017-00

$12.82

39

CLIP, RING

8FA-2384N-00-00

$3.45

40

COLLAR

8FA-2412G-00-00

$10.26

41

WASHER, PLATE

90201-121U3-00

$5.45

42

ARM, IDLER

8FN-23826-00-00

$96.66

43

BOLT, PIN HOLE (8M6)

90102-10044-00

$12.18

44

COLLAR

90387-10070-00

$25.31

45

WASHER PLATE (3L6)

90201-10742-00

$6.80

46

ROD, TIE

8FN-23831-00-00

$33.20

47

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

48

JOINT, UNIVERSAL 3

8FA-23847-00-00

$64.14

49

NUT (3WP1)

95317-10700-00

$6.17

50

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

51

BOLT, PIN HOLE (8M6)

90102-10044-00

$12.18

52

NUT, NYLON

95707-10300-00

$6.68

53

NUT, FLANGE(3BM)

95704-10500-00

$1.71

54

PIN, COTTER

91490-20025-00

$1.31

55

WASHER PLATE (3L6)

90201-08759-00

$2.52
