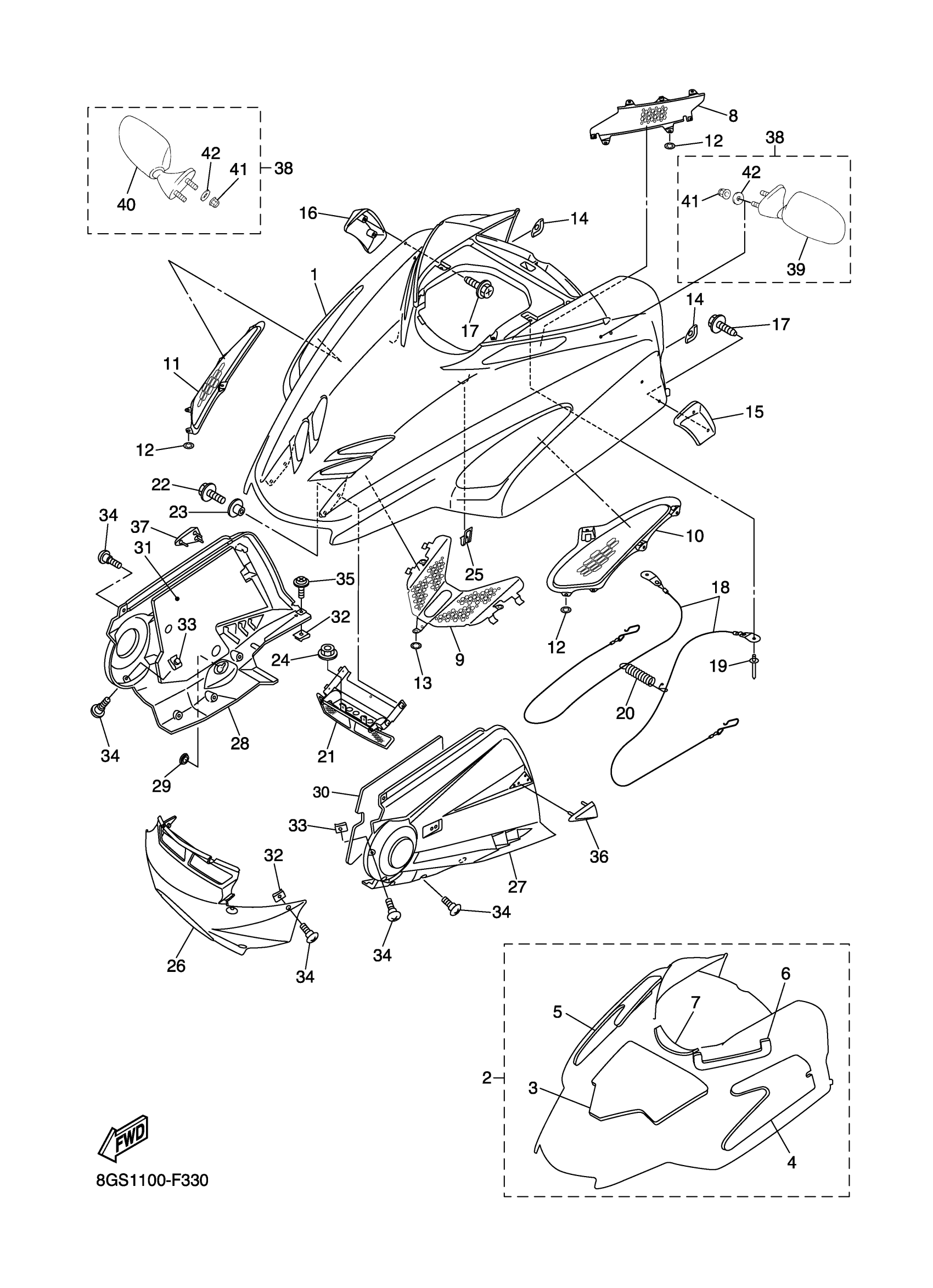

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 SHROUD Diagram

#

Description
Price

1

SHROUD (DEEP RED METALLIC K)

8FN-77111-00-P2

Unavailable

1

SHROUD (DARK BLUISH GRAY METALLIC 8)

8FN-77111-00-P3

$1,186.99

2

LINING SET

8FN-W7726-00-00

Unavailable

3

DAMPER, NOISE 11

8FN-77271-00-00

$24.00

4

DAMPER, NOISE 12

8FN-77272-00-00

$16.72

5

DAMPER, NOISE 13

8FN-77273-00-00

$16.72

6

LINING, SHROUD 4

8FN-77264-00-00

Unavailable

7

. DAMPER, HEADLIGHT 1

8DS-84366-00-00

Unavailable

8

LOUVER COMP.

8FN-77130-00-00

$183.34

9

LOUVER 4

8FN-77134-00-00

$236.40

10

LOUVER 5

8FN-77109-00-00

$97.25

11

LOUVER 6

8FN-77108-00-00

$97.25

12

NUT, SPRING(8AJ)

90183-05068-00

$7.46

13

NUT, SPRING(3VD)

90183-08065-00

$1.49

14

TRIM 3

8FA-77167-10-00

$10.03

15

STRIP, WEATHER 1

8FN-77161-00-00

$13.02

16

STRIP, WEATHER 2

8FN-77162-00-00

$13.02

17

SCREW, TAPPING

97702-50016-00

$1.98

18

STOPPER, SHROUD

8FN-77118-00-00

$19.31

19

RIVET, BLIND

90267-48018-00

$7.35

20

CLAMP, ROD

89A-77159-00-00

$9.75

21

HINGE ASSY

8FN-77140-00-00

$284.20

22

BOLT, FLANGE

95817-06016-00

$1.49

23

COLLAR (8G8)

90387-06681-00

$6.62

24

NUT, U FLANGE

95604-06200-00

$2.35

25

CLAMP 1

8FA-77135-00-00

$6.86

26

PANEL, SUB FRAME 1

8FN-21912-00-00

$263.83

27

HOOD 3

8ES-2197H-01-00

$172.65

28

HOOD 4

8GS-2198H-00-00

Unavailable

29

PLUG(8CJ)

90338-30256-00

$7.15

30

DAMPER, NOISE 16

8ES-77276-00-00

$17.59

31

DAMPER, NOISE 17

8GS-77277-01-00

$53.95

32

NUT, SPRING(4ES)

90183-06069-00

$5.93

33

NUT, SPRING

90183-06100-00

$7.88

34

SCREW, BINDING

90154-06009-00

$2.92

35

SCREW, WITH WASHER

90159-06011-00

$6.20

36

PROTECTOR, SIDE 1

8FA-77561-00-00

$19.09

37

PROTECTOR, SIDE 2

8FA-77562-00-00

$8.77

38

REAR VIEW MIRROR SET

8CR-W2628-10-00

$199.99

39

REAR VIEW MIRROR ASSY(LEFT)

4SV-26280-00-00

Unavailable

40

REAR VIEW MIRROR ASSY(RIGHT)

4SV-26290-00-00

Unavailable

41

NUT, U FLANGE

95604-06200-00

$2.35

42

WASHER PLATE 137241870000

90201-06072-00

$6.42
