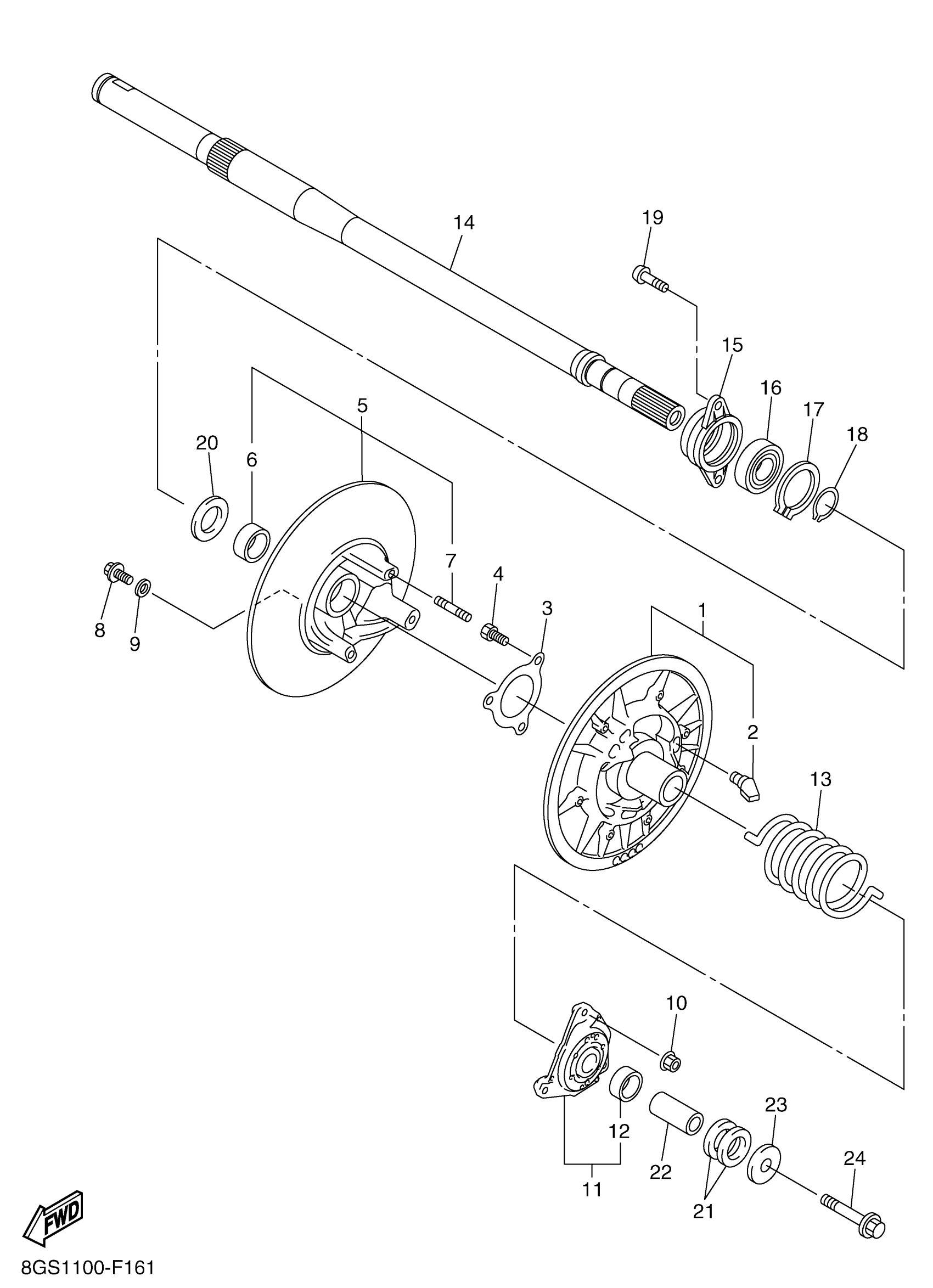

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

8CR-17660-20-00

Unavailable

2

SHOE, RAMP

8AV-17688-10-00

$27.33

3

STOPPER, HOLDER

8BV-17656-00-00

$20.20

4

SCREW, BINDING

98907-06016-00

$7.14

5

SECONDARY SLIDING SHEAVE

8BU-17670-20-00

$218.32

6

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$52.33

7

BOLT, STUD 3

95617-08630-00

$3.69

8

BOLT, WASHER BASED(8BN)

90105-06734-00

$2.82

9

WASHER, PLATE (371)

90201-06431-00

$4.48

9

WASHER, PLATE (22K)

90201-061H1-00

$3.74

10

NUT(8BN)

90179-08655-00

$7.46

11

SEAT SPRING SET

8FN-17604-90-00

Unavailable

12

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$52.33

13

SPRING, TORSION

90508-60012-00

$41.64

14

SHAFT, SECONDARY

8GS-17681-03-00

$448.22

15

HOUSING, BEARING

8FN-47631-00-00

$106.58

16

BEARING

93306-30579-00

$57.81

17

CIRCLIP(MF1)

99009-62500-00

$6.23

18

CIRCLIP(JF7)

99009-25400-00

$6.68

19

SCREW

90149-08034-00

$1.91

20

WASHER, PLATE (888)

90201-25526-00

$7.46

21

WASHER, PLATE (T=0.5)

90201-222F0-00

$5.89

21

WASHER, PLATE (8L8)

90201-225A4-00

$7.85

22

COLLAR

90387-14019-00

$24.45

23

WASHER, PLATE

90201-14022-00

$4.86

24

BOLT, WASHER BASED(8CJ)

90105-14766-00

$23.89
