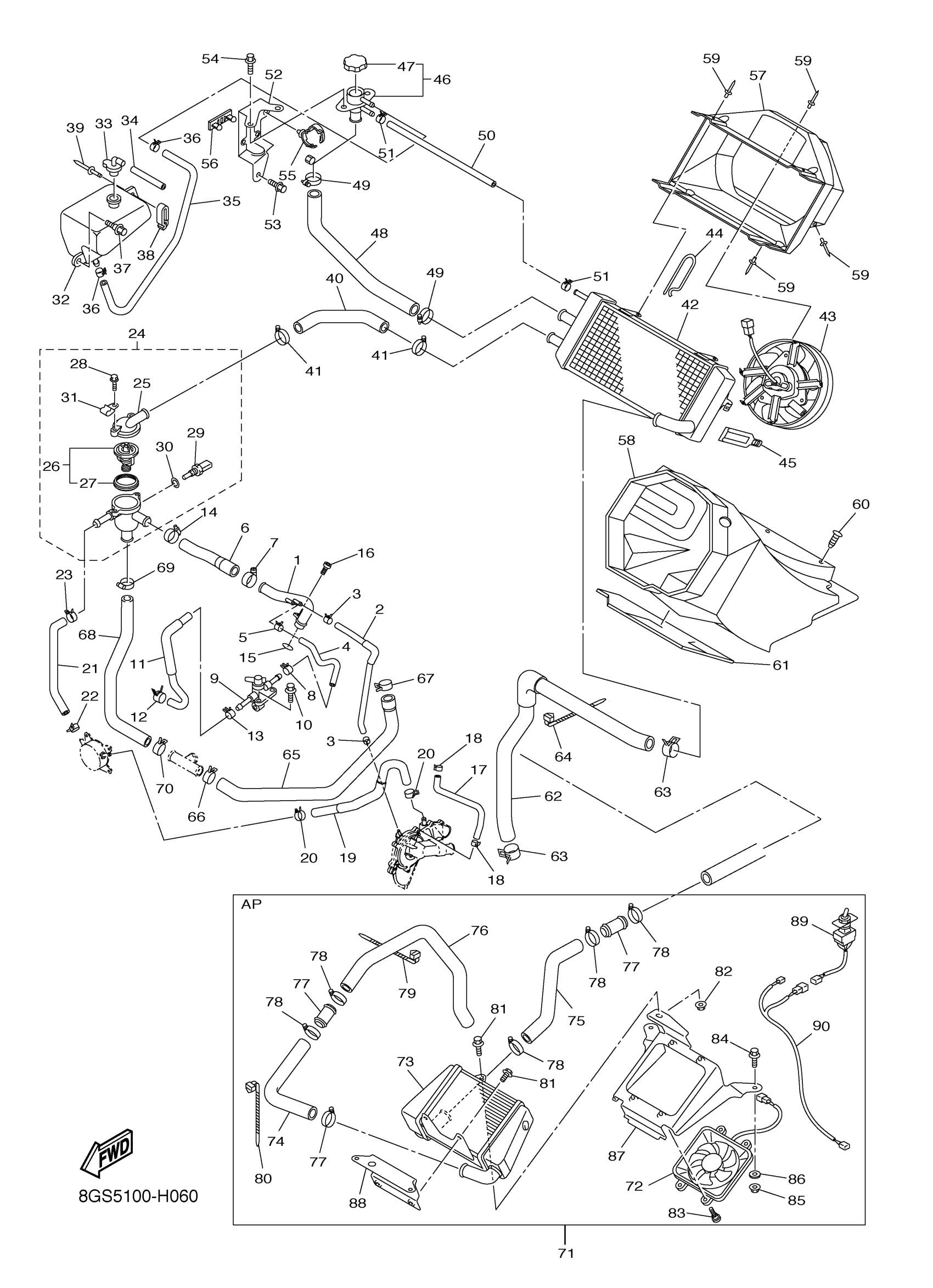

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 2

8ES-12482-00-00

$70.75

2

PIPE 5

8ES-12485-01-00

$10.54

3

CLIP

90467-110A2-00

$6.69

4

HOSE 2

8FN-12577-00-00

$9.46

5

CLIP

90467-110A2-00

$6.69

6

HOSE 2

8FN-1243E-00-00

$16.69

7

HOSE CLAMP ASSY(3GM)

90450-38040-00

$15.75

8

CLIP

90467-110A2-00

$6.69

9

COCK ASSY

8FW-1249A-00-00

$85.86

10

BOLT, FLANGE

95812-06014-00

$5.45

11

HOSE 4

8FN-12579-00-00

$18.77

12

CLIP

90467-110A2-00

$6.69

13

CLIP

90467-110A2-00

$6.69

14

HOSE CLAMP ASSY

90450-35001-00

$5.25

15

O-RING

93210-26006-00

$6.68

16

BOLT(3MA)

91312-06016-00

$4.89

17

HOSE 3

8ES-12578-00-00

$7.25

18

CLIP

90467-110A2-00

$6.69

19

HOSE 5

8ES-12588-00-00

$19.74

20

CLIP(3TB)

90467-17128-00

$6.68

21

HOSE 6

8FN-12589-00-00

$16.29

22

CLIP(3TB)

90467-17128-00

$6.68

23

CLIP(3TB)

90467-17128-00

$6.68

24

JOINT ASSY

8FN-12580-00-00

$176.42

25

COVER, THERMOSTAT

5EB-12413-00-00

$76.31

26

THERMOSTAT ASSY

8FN-12410-00-00

$76.80

27

SEAL, THERMOSTAT

8EK-12412-00-00

$14.37

28

BOLT, FLANGE

95022-06020-00

$3.32

29

THERMOSENSOR ASSY

8CC-85790-01-00

$86.91

30

WASHER, PLATE

90201-12790-00

$6.85

31

. CLAMP

90465-06M28-00

$4.90

32

TANK, RECOVERY

8FN-21871-00-00

$54.97

33

CAP

89A-21815-00-00

$20.94

34

HOSE (L70)

90445-112E0-00

$5.66

35

HOSE (L450)

90445-120J8-00

$5.49

36

CLIP (7K7)

90467-11044-00

$5.10

37

SCREW (7H2)

90149-06148-00

$4.26

38

CLAMP

90465-10048-00

$4.51

39

RIVET, BLIND(8CJ)

90267-48182-00

$1.78

40

HOSE, 4

8FN-1244G-00-00

Unavailable

41

HOSE CLAMP ASSY

90450-35001-00

$5.25

42

RADIATOR ASSY

8FN-12460-00-00

$852.99

43

BLOWER ASSY

8FN-12405-02-00

Unavailable

44

PIN

8CR-77384-01-00

$12.18

45

LATCH

8FA-2389E-00-00

$10.46

46

CONDUCTION ASSY

8FN-12590-00-00

$53.11

47

CAP, RADIATOR

1B3-12462-00-00

$61.37

48

HOSE 5

8FN-1244H-00-00

$23.94

49

HOSE CLAMP ASSY

90450-28001-00

$12.54

50

HOSE (L300)

90445-120J7-00

$3.86

51

CLIP (7K7)

90467-11044-00

$5.10

52

BRACKET 1

8FN-1244E-00-00

$96.12

53

BOLT, FLANGE

95817-06012-00

$1.49

54

BOLT, FLANGE

95817-06016-00

$1.49

55

CLAMP(4AP)

90464-20181-00

$2.80

56

BRACKET

8FA-83614-00-00

$4.11

57

COVER, RADIATOR

8FN-12467-00-00

$129.85

58

DUCT, COOLER

8FN-21851-00-00

$139.17

59

RIVET, BLIND

90267-48018-00

$7.35

60

RIVET(81E)

90269-05055-00

$7.02

61

LINING, SHROUD 1

8FN-77261-00-00

Unavailable

62

PIPE 7

8FN-12477-02-00

$65.52

63

CLIP (8M6)

90467-28046-00

$12.43

64

CLAMP, HOSE(3KJ)

90460-15126-00

$5.63

65

PIPE 8

8FN-1248A-00-00

$52.09

66

CLIP (8M6)

90467-28046-00

$12.43

67

CLIP

90467-310A0-00

$4.20

68

PIPE 9

8FN-1248E-00-00

$41.12

69

HOSE CLAMP ASSY

90450-35001-00

$5.25

70

CLIP (8M6)

90467-28046-00

$12.43

71

VK10 SUB RADIATOR KIT

8GS-W1246-01-00

$1,860.99

72

BLOWER ASSY

8FP-12405-01-00

$229.48

73

RADIATOR ASSY

8GS-12461-00-00

$423.12

74

HOSE 6

8FN-1244J-00-00

$42.58

75

HOSE 1

8FN-1243A-00-00

$102.37

76

HOSE,3

8FN-1243F-00-00

$80.00

77

JOINT 1

8FN-12469-00-00

$50.29

78

HOSE CLAMP ASSY

90450-35001-00

$5.25

79

CLAMP(4FM)

90464-15195-00

$2.77

80

CLAMP, HOSE(3KJ)

90460-15126-00

$5.63

81

BOLT, FLANGE

95817-06012-00

$1.49

82

NUT, FLANGE

95702-06500-00

$1.98

83

SCREW, BINDING

98907-05016-00

$6.18

84

BOLT, FLANGE

95814-08016-00

$6.68

85

NUT,FLANGE(J10)

95702-08500-00

$0.80

86

WASHER, PLATE (3L7)

90201-08784-00

$2.54

87

BRACKET 2

8FN-1244F-00-00

$582.99

88

STAY, RADIATOR

8FN-12464-00-00

$362.42

89

SWITCH

8CN-82917-01-00

$183.97

90

WIRE, SUB LEAD

8FN-82509-00-00

$27.72
