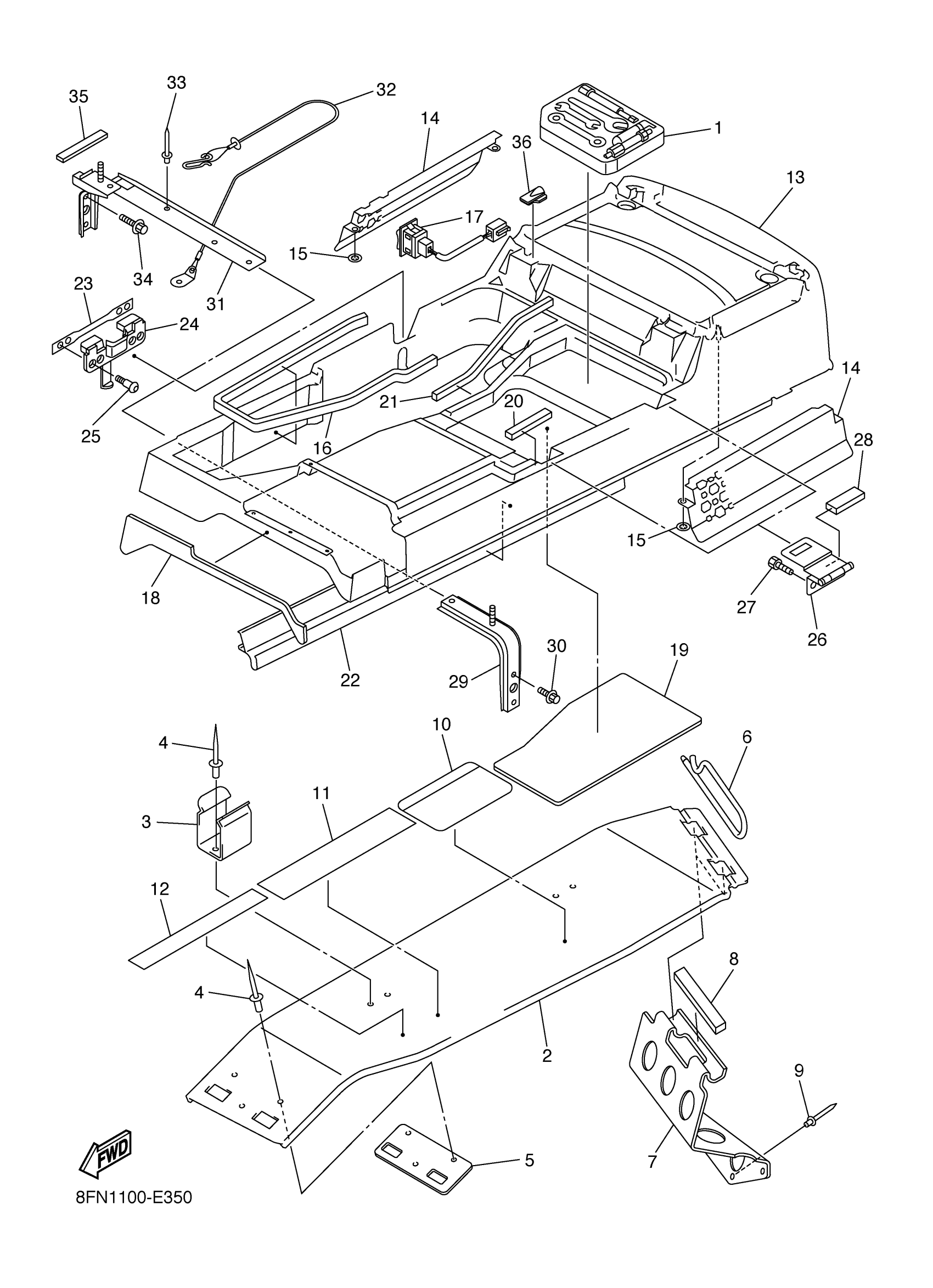

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 GUARD LUGGAGE BOX Diagram

#

Description
Price

1

TOOL KIT

8FN-28100-01-00

$139.62

2

GUARD, DRIVE

8FA-77311-02-00

$51.05

3

STAY, BELT

8CR-77338-00-00

$5.14

4

RIVET, BLIND

90267-48010-00

$2.00

5

PROTECTOR

8FA-77373-00-00

$3.37

6

PIN

8CR-77384-01-00

$12.18

7

HOOK

8FN-21973-00-00

$69.32

8

DAMPER 1

8CR-77319-00-00

$0.58

9

RIVET, BLIND

90267-47195-00

$3.33

10

LABEL, WARNING 2

8BD-77762-00-00

$3.95

11

LABEL 1

8GS-47578-00-00

$3.48

12

LABEL, CAUTION

8ES-1417E-00-00

$2.45

13

LUGGAGE BOX ASSY

8FN-77390-00-00

Unavailable

14

LOUVER 3

8FN-77133-00-00

$28.28

15

NUT, SPRING(8AJ)

90183-05068-00

$7.46

16

SEAL

8FN-2414G-00-00

$8.58

17

SWITCH

8ET-82917-00-00

$184.08

18

LINING, SHROUD 2

8FN-77262-00-00

$16.35

19

LINING, SHROUD 3

8FN-77263-00-00

$68.69

20

SEAL 3

8FN-241A3-00-00

$1.88

21

SEAL 4

8FN-241A4-00-00

$7.28

22

TRIM 1

8FN-2196T-00-00

$19.71

23

BAR, SEAT LEVER

8FN-2478C-00-00

$37.18

24

DAMPER, SEAT

8FN-24723-00-00

$25.69

25

BOLT

90111-05020-00

$3.69

26

HINGE ASS'Y

8FN-24772-00-00

$55.35

27

BOLT, HEXAGON SOCKET HEAD

90110-06043-00

$3.49

28

SEAL 2

8FN-2414E-00-00

$1.91

29

BRACKET, FUEL TANK 1

8FN-2194N-00-00

$59.09

30

BOLT, FLANGE

95817-08014-00

$1.94

31

BRACKET, FUEL TANK 2

8FN-2194R-00-00

$180.42

32

CABLE, SEAT LOCK

8FN-2478E-00-00

$18.11

33

RIVET, BLIND(8CR)

90267-47186-00

$2.31

34

BOLT, FLANGE

95817-08014-00

$1.94

35

SEAL 3

8FN-241A3-00-00

$1.88

36

GROMMET

8FN-24742-00-00

$23.86
