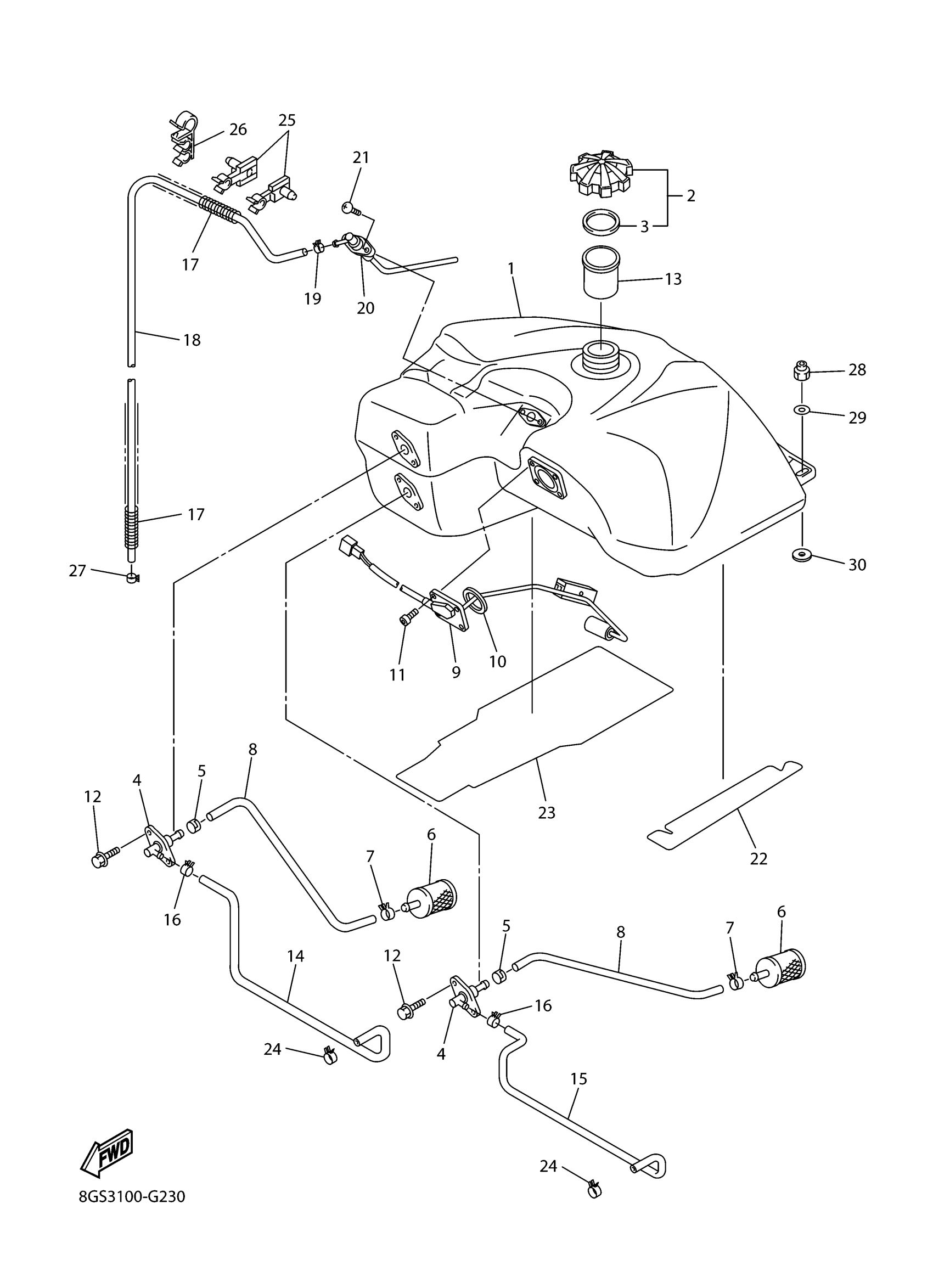

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8FN-24111-10-00

$1,956.99

2

CAP ASSY

8FG-24610-01-00

$34.95

3

GASKET, CAP 1

8HV-24641-00-00

Unavailable

4

SUCTION PIPE COMP. 1

8CR-24301-01-00

$55.60

5

CLIP

90468-04092-00

$2.54

6

FILTER ASSY

8H5-24560-00-00

$11.47

7

CLIP (7K7)

90467-11044-00

$5.10

8

PIPE, SUCTION 1

8FA-24335-01-00

Unavailable

9

SENDER UNIT ASSY, FUEL METER

8GS-85752-00-00

$55.31

10

O-RING (102)

93210-41041-00

$5.86

11

SCREW, BIND

98902-05008-00

$1.23

12

BOLT, FLANGE

95817-06016-00

$1.49

13

TUBE, FILLER

8FN-24114-00-00

$28.60

14

PIPE, FUEL 1

8GS-24311-00-00

$55.52

15

PIPE, FUEL 1

8GS-24311-10-00

$54.69

16

CLIP (7K7)

90467-11044-00

$5.10

17

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

18

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$23.43

19

CLIP (8A1)

90467-09026-00

$2.72

20

BREATHER COMP.

8FN-2418A-01-00

Unavailable

21

SCREW

90149-06021-00

$6.25

22

DAMPER, LOCATING 1

8GS-24181-00-00

$29.71

23

DAMPER, LOCATING 2

8GS-24182-00-00

$163.66

24

CLIP (7K7)

90467-11044-00

$5.10

25

CLAMP

90464-09015-00

$3.42

26

CLAMP

90464-16010-00

$4.45

27

CLIP (8A1)

90467-09026-00

$2.72

28

NUT, NYLON

95717-08300-00

$2.57

29

WASHER, PLATE

90201-08053-00

$5.63

30

WASHER, PLATE

90201-08075-00

$4.92
