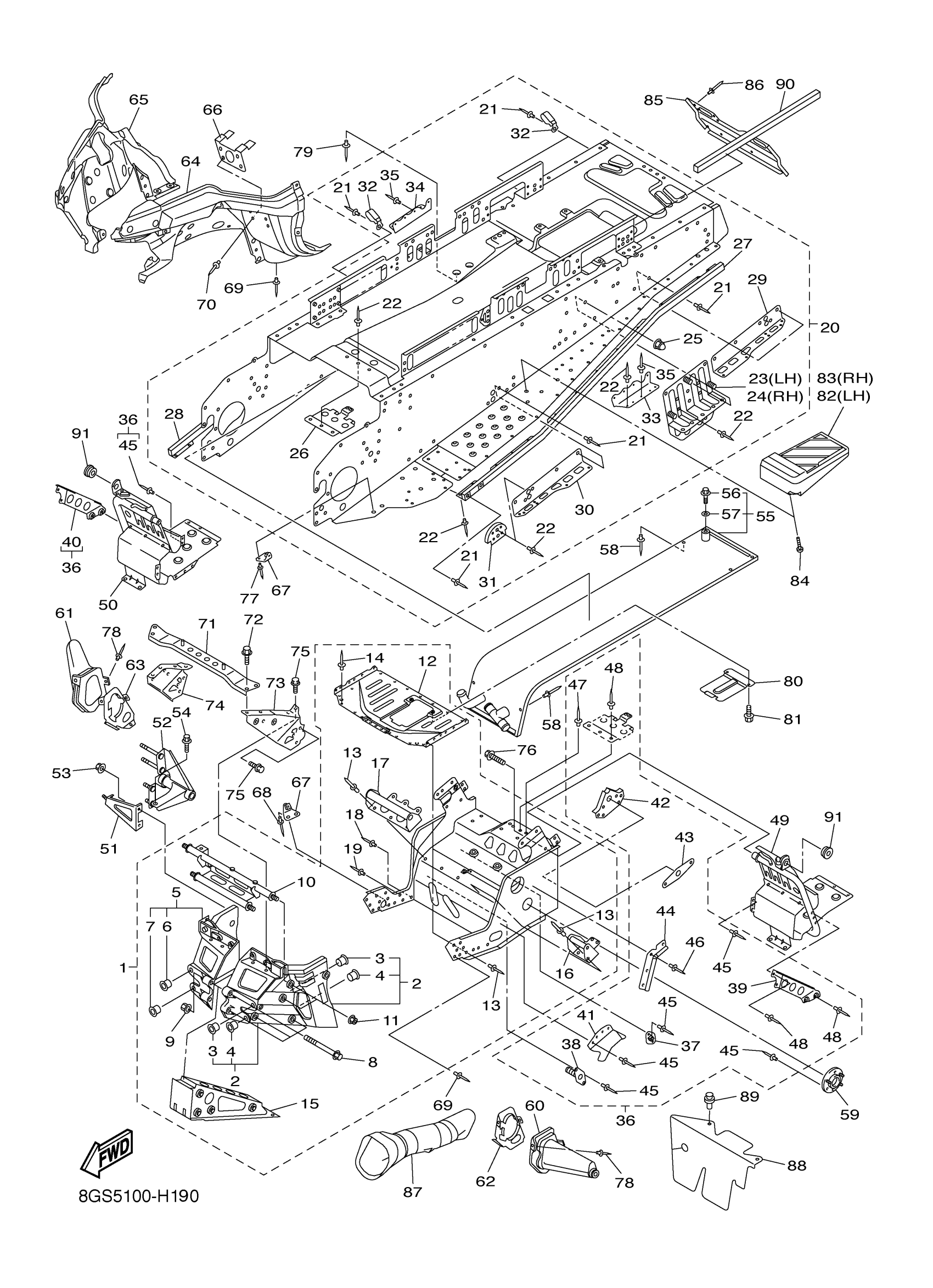

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

8GS-21940-12-00

$2,146.99

2

BULKHEAD

8FN-W2197-02-00

$482.12

3

BUSH, SOLID

90381-15001-00

$4.11

4

BUSH, SOLID

90381-16004-00

$12.91

5

BULKHEAD 2

8FN-Y291E-02-00

$525.99

6

BUSH, SOLID

90381-15001-00

$4.11

7

BUSH, SOLID

90381-16004-00

$12.91

8

BOLT, FLANGE

90105-08072-00

$3.38

9

NUT, SELF-LOCKING

90185-08169-00

$7.09

10

BRACKET, STEERING 1

8FN-21947-00-00

$196.75

11

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

12

PROTECTOR

8GS-2193A-01-00

$114.08

13

RIVET, BLIND

90267-47195-00

$3.33

14

RIVET, BLIND

90267-48016-00

$7.85

15

REINFORCEMENT, FRAME 3

8FN-2198E-00-00

$354.29

16

BRACKET, ENGINE 2

8FN-2194F-00-00

$39.54

17

BRACKET, ENGINE 3

8FN-2194G-00-00

$96.85

18

RIVET, BLIND

90267-48016-00

$7.85

19

RIVET, BLIND

90267-48177-00

$1.71

20

REAR FRAME COMP.

8GS-21950-01-00

$2,884.99

21

RIVET, BLIND

90267-48023-00

$8.18

22

RIVET, BLIND

90267-48177-00

$1.71

23

BRACKET, RR.TRACK SUSPENTION 1

8FN-21944-01-00

$76.08

24

BRACKET, RR.TRACK SUSPENTION 2

8FN-21954-01-00

$76.08

25

NUT, CROWN(2GG)

90176-10075-00

$6.57

26

PROTECTOR, MUFFLER

8FN-2194H-00-00

$49.65

27

REINFORCEMENT, FOOTREST 1

8FN-21926-00-00

$185.42

28

REINFORCEMENT, FOOTREST 2

8FN-21936-00-00

$185.42

29

PATCH 2

8FN-21962-01-00

$29.14

30

PATCH 3

8FN-21963-01-00

$29.14

31

BRACKET, MAIN TRACK 1

8CW-21943-00-00

$4.11

32

CLAMP(51Y)

90465-08277-00

$9.43

33

PATCH 5

8GS-21965-00-00

$42.26

34

PATCH 6

8GS-21966-00-00

$42.26

35

RIVET, BLIND

90267-48016-00

$7.85

36

FRAME CONNECTION KIT

8GS-W2195-00-00

$263.86

37

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

38

BRACKET, CHAIN HOUSING

8FN-21939-00-00

$8.37

39

BRACKET, 5

8FG-2196M-00-00

Unavailable

40

BRACKET, 6

8FG-2197M-00-00

Unavailable

41

COVER 2

8FU-2198G-00-00

Unavailable

42

BRACKET, MAIN TRACK 1

8GS-21943-00-00

$28.91

43

BRACKET, MAIN TRACK 2

8FN-21953-00-00

$3.49

44

CLAMP, WIREHARNESS

8FA-21999-00-00

$7.25

45

RIVET, BLIND

90267-47195-00

$3.33

46

RIVET, BLIND

90267-48018-00

$7.35

47

RIVET, BLIND

90267-48023-00

$8.18

48

RIVET, BLIND

90267-48177-00

$1.71

49

FOOTREST COMP. 1

8FN-21960-01-00

$281.62

50

FOOTREST COMP. 2

8GS-21970-00-00

Unavailable

51

BRACKET, OIL TANK 1

8FN-2193E-00-00

$22.03

52

BRACKET, ENGINE

8FN-2194E-00-00

$241.72

53

NUT, SELF-LOCKING

95602-08200-00

$2.77

54

BOLT, FLANGE(3HP)

95817-10016-00

$6.17

55

HEAT EXCHANGER ASSY

8FN-12440-01-00

$518.99

56

BOLT, FLANGE

95817-06016-00

$1.49

57

WASHER, SEAL (7G5)

90210-06006-00

$5.72

58

RIVET, BLIND

90267-48016-00

$7.85

59

HOUSING, REINF SUB-ASSY(L.H)

8EK-21920-01-00

$17.68

60

COVER 1

8FU-2198F-01-00

$27.20

61

COVER 3

8FU-2198J-01-00

$27.20

62

PLATE, STRG BRACKET 1

8FU-2195E-01-00

$11.54

63

PLATE, STRG BRACKET 2

8FU-2195F-01-00

$11.54

64

FRAME UNDER 1

8ES-2196A-01-00

$81.12

65

FRAME, UNDER 2

8FA-2196E-01-00

$76.54

66

BRACKET, GUARD FITTING

8FA-21972-01-00

$6.28

67

BRACKET 3

8FA-2196F-00-00

$5.58

68

RIVET, BLIND (22W)

90267-48083-00

$2.78

69

RIVET, BLIND

90267-48018-00

$7.35

70

RIVET, BLIND

90267-47200-00

$2.28

71

BUMPER, FRONT 2

8FN-77512-00-00

$66.09

72

BOLT, FLANGE

95817-06012-00

$1.49

73

BRACKET, FRONT

8FN-21949-00-00

$28.80

74

BRACKET, FRONT BUMPER

8FN-21959-00-00

$28.80

75

BOLT, FLANGE

95814-08016-00

$6.68

76

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

77

RIVET, BLIND(3JB)

90267-48095-00

$2.00

78

RIVET, BLIND

90267-47195-00

$3.33

79

RIVET, BLIND

90267-48016-00

$7.85

80

PROTECTOR, FRAME FR

8FR-2197E-00-00

$42.43

81

BOLT, BUTTON HEAD

92012-06012-00

$2.49

82

FOOTREST, REAR 1

8DM-27431-03-00

$30.91

83

FOOTREST, REAR 2

8DM-27441-03-00

$34.34

84

SCREW, TAPPING(4TV)

90167-05078-00

$5.12

85

REINFORCEMENT, FRAME REAR 2

8FN-21933-01-00

$63.80

86

RIVET, BLIND

90267-47195-00

$3.33

87

DUCT, AIR

8FN-21557-00-00

$49.68

88

COVER 1

8FN-2198F-00-00

Unavailable

89

RIVET

90269-09002-00

Unavailable

90

SEAL, 5

8FN-241A5-00-00

$4.89

91

GROMMET (4H7)

90480-16278-00

$2.62
