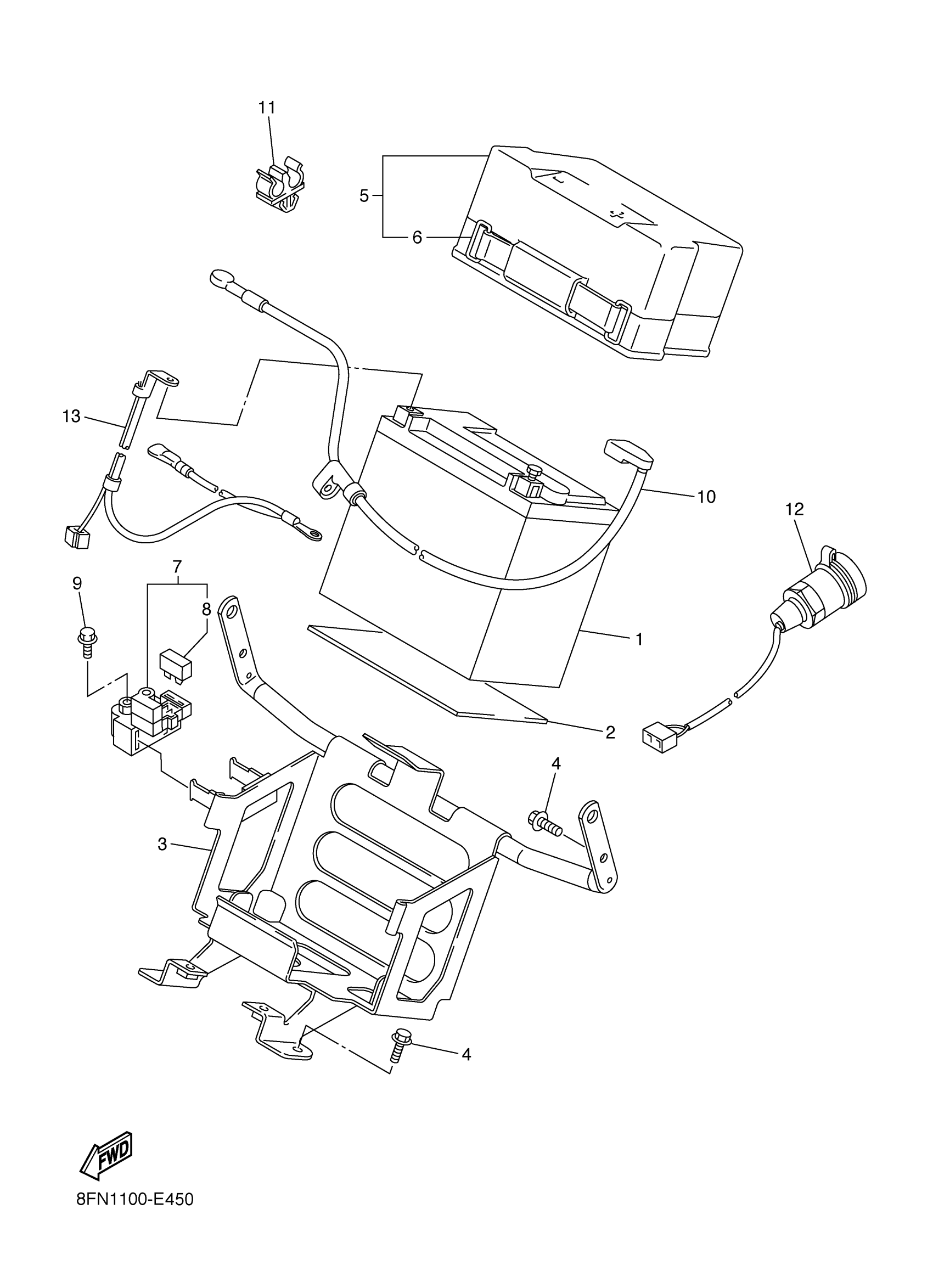

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 ELECTRICAL 2 Diagram

#

Description
Price

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$165.99

2

SEAT, BATTERY

8FA-82122-00-00

$6.11

3

BRACKET, BATTERY

8FN-2199G-00-00

$138.42

4

BOLT, FLANGE

95814-08016-00

$6.68

5

COVER, BATTERY

8FA-82129-00-00

$36.38

6

BAND, BATTERY

8DM-82131-10-00

$12.75

7

STARTER RELAY ASSY (RC19-003)

4DN-81940-12-00

$128.29

8

FUSE (12V 30A)

1AE-82151-00-00

$6.22

9

BOLT, FLANGE

95022-06008-00

$4.70

10

WIRE, PLUS LEAD

8FN-82115-00-00

$55.32

11

CLAMP(87A)

90464-08126-00

$1.95

12

TERMINAL COMP.

8FP-8254B-00-00

$148.14

13

WIRE, MINUS LEAD

8FN-82116-00-00

$43.48
