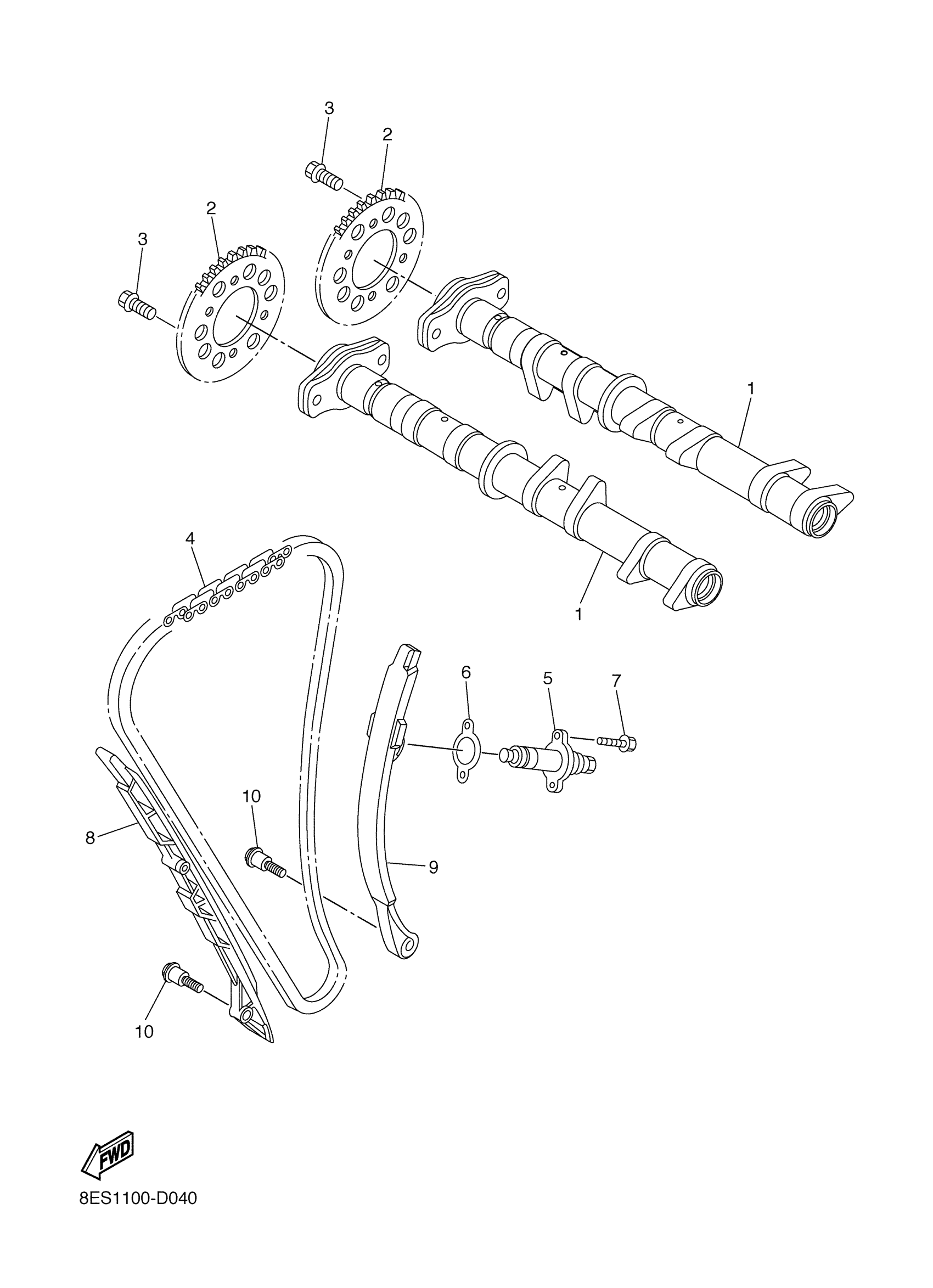

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

8ES-12170-01-00

$238.06

2

SPROCKET, CAM CHAIN

8ES-12176-00-00

$44.77

3

BOLT, FLANGE

90105-07004-00

$5.00

4

CHAIN

94591-59140-00

$45.40

5

TENSIONER ASSY, CAM CHAIN

8ES-12210-02-00

Unavailable

6

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.57

7

BOLT, FLANGE

95022-06020-00

$3.32

8

DAMPER, CHAIN 1

8ES-12251-00-00

$18.57

9

DAMPER, CHAIN 2

8ES-12252-01-00

Unavailable

10

BOLT

90109-06188-00

Unavailable
