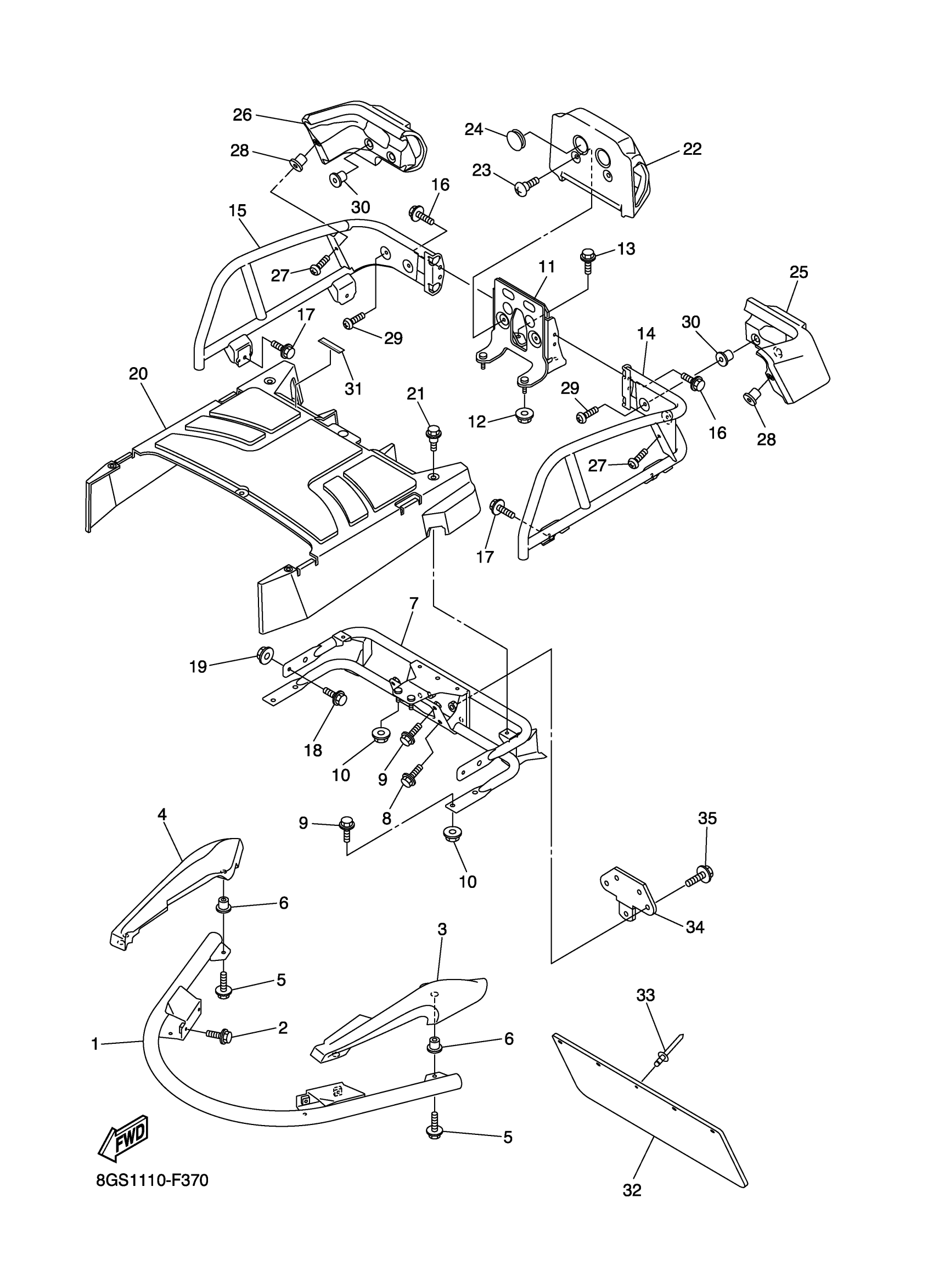

Yamaha VK10YS (RS VIKING PROFESSIONAL) 8GS50 2009 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8FN-77511-00-00

Unavailable

2

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

3

END, BUMPER

8FN-77523-00-00

$102.77

4

END, BUMPER

8FN-77524-00-00

$102.77

5

BOLT, FLANGE

95817-06020-00

$2.69

6

NUT(1WT)

90179-06520-00

$6.31

7

BUMPER, REAR 1

8FN-77541-00-00

$542.99

8

BOLT, FLANGE

95817-10020-00

$5.10

9

BOLT, FLANGE

95814-08016-00

$6.68

10

NUT,FLANGE(J10)

95702-08500-00

$0.80

11

BUMPER, REAR 2

8FN-77542-00-00

Unavailable

12

NUT,FLANGE(J10)

95702-08500-00

$0.80

13

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

14

BUMPER, REAR 3

8FN-77543-00-00

$362.11

15

BUMPER, REAR 4

8FN-77544-00-00

$346.42

16

BOLT, FLANGE

95814-08016-00

$6.68

17

BOLT, FLANGE

95817-10020-00

$5.10

18

BOLT, FLANGE

95817-06014-00

$2.15

19

NUT, FLANGE

95702-06500-00

$1.98

20

PROTECTOR 1

8FN-77551-00-00

$492.99

21

BOLT

90109-06174-00

$7.35

22

PROTECTOR 2

8FN-77552-00-00

$114.28

23

SCREW, BINDING

90154-06009-00

$2.92

24

PLUG(XA1)

90338-28242-00

$1.95

25

PROTECTOR 3

8FN-77553-00-00

Unavailable

26

PROTECTOR 4

8FN-77554-00-00

Unavailable

27

SCREW, BIND (705)

98980-06016-00

$6.82

28

NUT(1WT)

90179-06520-00

$6.31

29

SCREW, BIND(J50)

98980-08020-00

$3.40

30

NUT

90179-08011-00

$10.68

31

EMBLEM

8FM-24897-01-00

$3.54

32

FLAP

83R-77595-00-00

$157.15

33

RIVET, BLIND (8R6)

90267-48086-00

$3.49

34

BRACKET, HITCH 2

84R-77592-00-00

$32.00

35

BOLT, FLANGE(4LN)

95817-08025-00

$6.17
