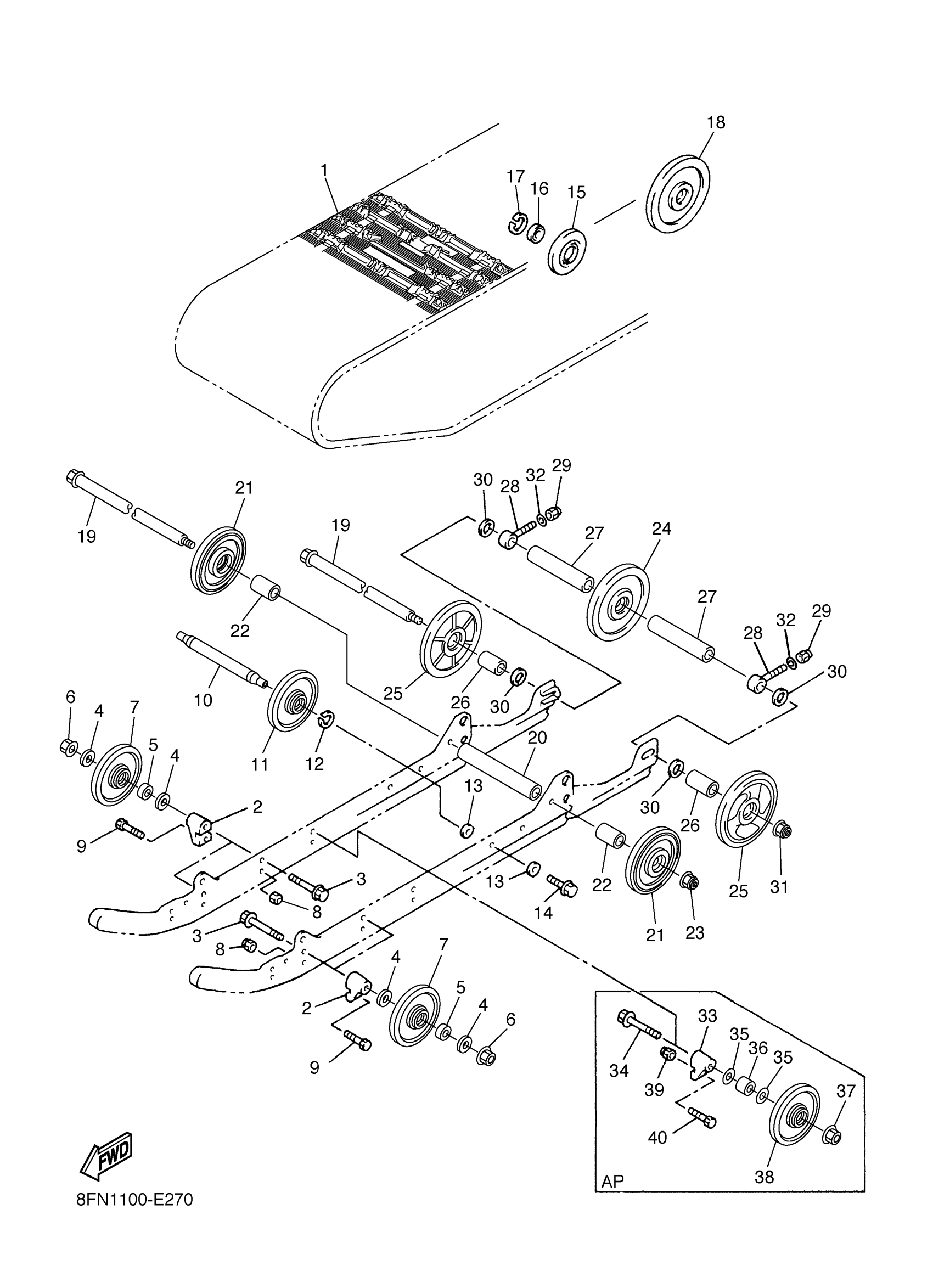

Yamaha VK10XR (RS VIKING PROFESSIONAL) 8GS3 2008 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8FN-47110-01-00

$2,562.99

2

BRACKET 7

8CM-47419-10-00

$24.29

3

BOLT, FLANGE

95817-10080-00

$4.66

4

WASHER, PLATE(8CM)

90201-100S0-00

$4.92

5

COLLAR

90387-10031-00

$17.39

6

NUT, SELF-LOCKING

90185-10170-00

$7.46

7

SUSPENSION WHEEL ASSY

8ES-47310-00-00

$62.98

8

NUT, SELF-LOCKING

90185-08169-00

$6.62

9

BOLT(8CM)

90101-08774-00

$4.56

10

SHAFT 4

8FN-47486-00-00

Unavailable

11

SUSPENSION WHEEL ASSY

8ES-47310-00-00

$62.98

12

CIRCLIP(JF7)

99009-25400-00

$6.22

13

WASHER, PLATE (17K)

90201-106F2-00

$7.15

14

BOLT, FLANGE

95817-10030-00

$5.75

15

SUSPENSION WHEEL COMP.

8AC-47320-00-00

$97.71

16

BEARING(8AB)

93306-00444-00

Unavailable

17

CIRCLIP(5U8)

99009-42500-00

Unavailable

18

GUIDE WHEEL ASSY

8AC-47550-00-00

Unavailable

19

REAR AXLE COMP.

8JN-47520-00-00

Unavailable

20

COLLAR 1

83R-47469-00-00

Unavailable

21

SUSPENSION WHEEL ASSY

8FM-47310-00-00

Unavailable

22

COLLAR

90387-20022-00

Unavailable

23

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

24

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

25

WEIGHT

8EK-47550-11-00

Unavailable

26

COLLAR

90387-20022-00

Unavailable

27

COLLAR

90387-20023-00

Unavailable

28

COLLAR 3

8DM-47479-00-00

Unavailable

29

NUT, NYLON

95707-10300-00

Unavailable

30

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

31

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

32

WASHER(6TA)

92907-10600-00

Unavailable

33

BRACKET 7

8CM-47419-10-00

$24.29

34

BOLT, FLANGE

95817-10080-00

$4.66

35

WASHER, PLATE(8CM)

90201-100S0-00

$4.92

36

COLLAR

90387-10031-00

$17.39

37

NUT, SELF-LOCKING

90185-10170-00

$7.46

38

SUSPENSION WHEEL ASSY

8ES-47310-00-00

$62.98

39

NUT, SELF-LOCKING

90185-08169-00

$6.62

40

BOLT(8CM)

90101-08774-00

$4.56
