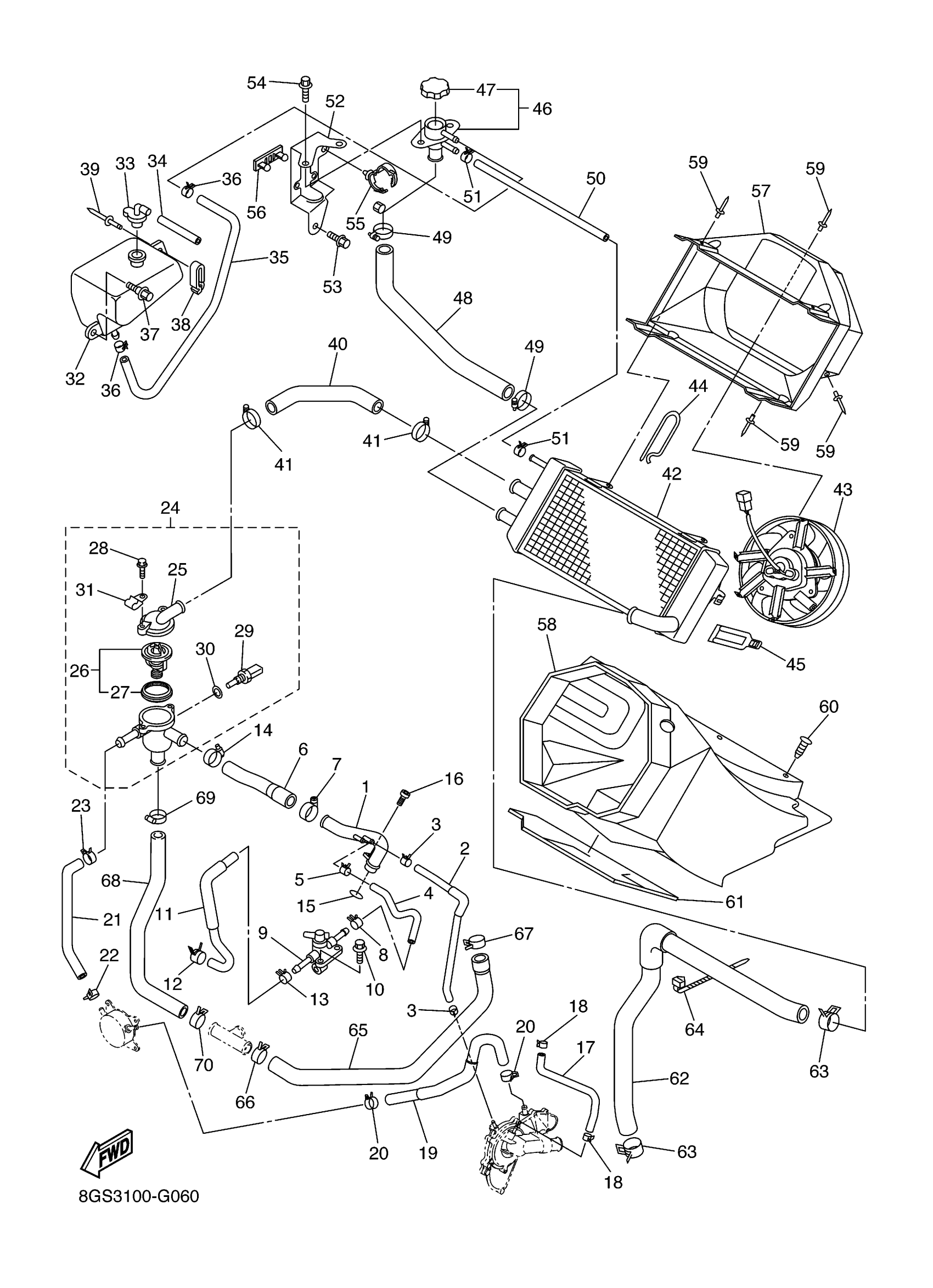

Yamaha VK10XR (RS VIKING PROFESSIONAL) 8GS3 2008 RADIATOR HOSE Diagram
#
1
PIPE 2
8ES-12482-00-00
Unavailable
2
PIPE 5
8ES-12485-01-00
Unavailable
3
CLIP
90467-110A2-00
Unavailable
4
HOSE 2
8FN-12577-00-00
Unavailable
5
CLIP
90467-110A2-00
Unavailable
6
HOSE 2
8FN-1243E-00-00
Unavailable
7
HOSE CLAMP ASSY(3GM)
90450-38040-00
$17.99
8
CLIP
90467-110A2-00
Unavailable
9
COCK ASSY
8FW-1249A-00-00
Unavailable
10
BOLT, FLANGE
95812-06014-00
$5.60
11
HOSE 4
8FN-12579-00-00
Unavailable
12
CLIP
90467-110A2-00
Unavailable
13
CLIP
90467-110A2-00
Unavailable
14
HOSE CLAMP ASSY
90450-35001-00
$5.60
15
O-RING
93210-26006-00
$8.49
16
BOLT(3MA)
91312-06016-00
Unavailable
17
HOSE 3
8ES-12578-00-00
Unavailable
18
CLIP
90467-110A2-00
Unavailable
19
HOSE 5
8ES-12588-00-00
Unavailable
20
CLIP(3TB)
90467-17128-00
Unavailable
21
HOSE 6
8FN-12589-00-00
Unavailable
22
CLIP(3TB)
90467-17128-00
Unavailable
23
CLIP(3TB)
90467-17128-00
Unavailable
24
JOINT ASSY
8FN-12580-00-00
Unavailable
25
COVER, THERMOSTAT
5EB-12413-00-00
Unavailable
26
THERMOSTAT ASSY
8FN-12410-00-00
Unavailable
27
SEAL, THERMOSTAT
8EK-12412-00-00
Unavailable
28
. BOLT, FLANGE
95027-06020-00
Unavailable
29
THERMOSENSOR ASSY
8CC-85790-01-00
Unavailable
30
WASHER, PLATE
90201-12790-00
Unavailable
31
. CLAMP
90465-06M28-00
Unavailable
32
TANK, RECOVERY
8FN-21871-00-00
Unavailable
33
CAP
89A-21815-00-00
Unavailable
34
HOSE (L70)
90445-112E0-00
Unavailable
35
HOSE (L450)
90445-120J8-00
Unavailable
36
CLIP (7K7)
90467-11044-00
Unavailable
37
SCREW (7H2)
90149-06148-00
Unavailable
38
CLAMP
90465-10048-00
Unavailable
39
RIVET, BLIND(8CJ)
90267-48182-00
Unavailable
40
HOSE, 4
8FN-1244G-00-00
Unavailable
41
HOSE CLAMP ASSY
90450-35001-00
$5.60
42
RADIATOR ASSY
8FN-12460-00-00
Unavailable
43
BLOWER ASSY
8FN-12405-02-00
Unavailable
44
PIN
8CR-77384-01-00
Unavailable
45
LATCH
8FA-2389E-00-00
Unavailable
46
CONDUCTION ASSY
8FN-12590-00-00
Unavailable
47
CAP, RADIATOR
1B3-12462-00-00
Unavailable
48
HOSE 5
8FN-1244H-00-00
Unavailable
49
HOSE CLAMP ASSY
90450-28001-00
Unavailable
50
HOSE (L300)
90445-120J7-00
Unavailable
51
CLIP (7K7)
90467-11044-00
Unavailable
52
BRACKET 1
8FN-1244E-00-00
Unavailable
53
BOLT, FLANGE
95817-06012-00
Unavailable
54
BOLT, FLANGE
95817-06016-00
Unavailable
55
CLAMP(4AP)
90464-20181-00
Unavailable
56
BRACKET
8FA-83614-00-00
Unavailable
57
COVER, RADIATOR
8FN-12467-00-00
Unavailable
58
DUCT, COOLER
8FN-21851-00-00
Unavailable
59
RIVET, BLIND
90267-48018-00
Unavailable
60
RIVET(81E)
90269-05055-00
Unavailable
61
LINING, SHROUD 1
8FN-77261-00-00
Unavailable
62
PIPE 7
8FN-12477-02-00
Unavailable
63
CLIP (8M6)
90467-28046-00
Unavailable
64
CLAMP, HOSE(3KJ)
90460-15126-00
Unavailable
65
PIPE 8
8FN-1248A-00-00
Unavailable
66
CLIP (8M6)
90467-28046-00
Unavailable
67
CLIP
90467-310A0-00
Unavailable
68
PIPE 9
8FN-1248E-00-00
Unavailable
69
HOSE CLAMP ASSY
90450-35001-00
$5.60
70
CLIP (8M6)
90467-28046-00
Unavailable
