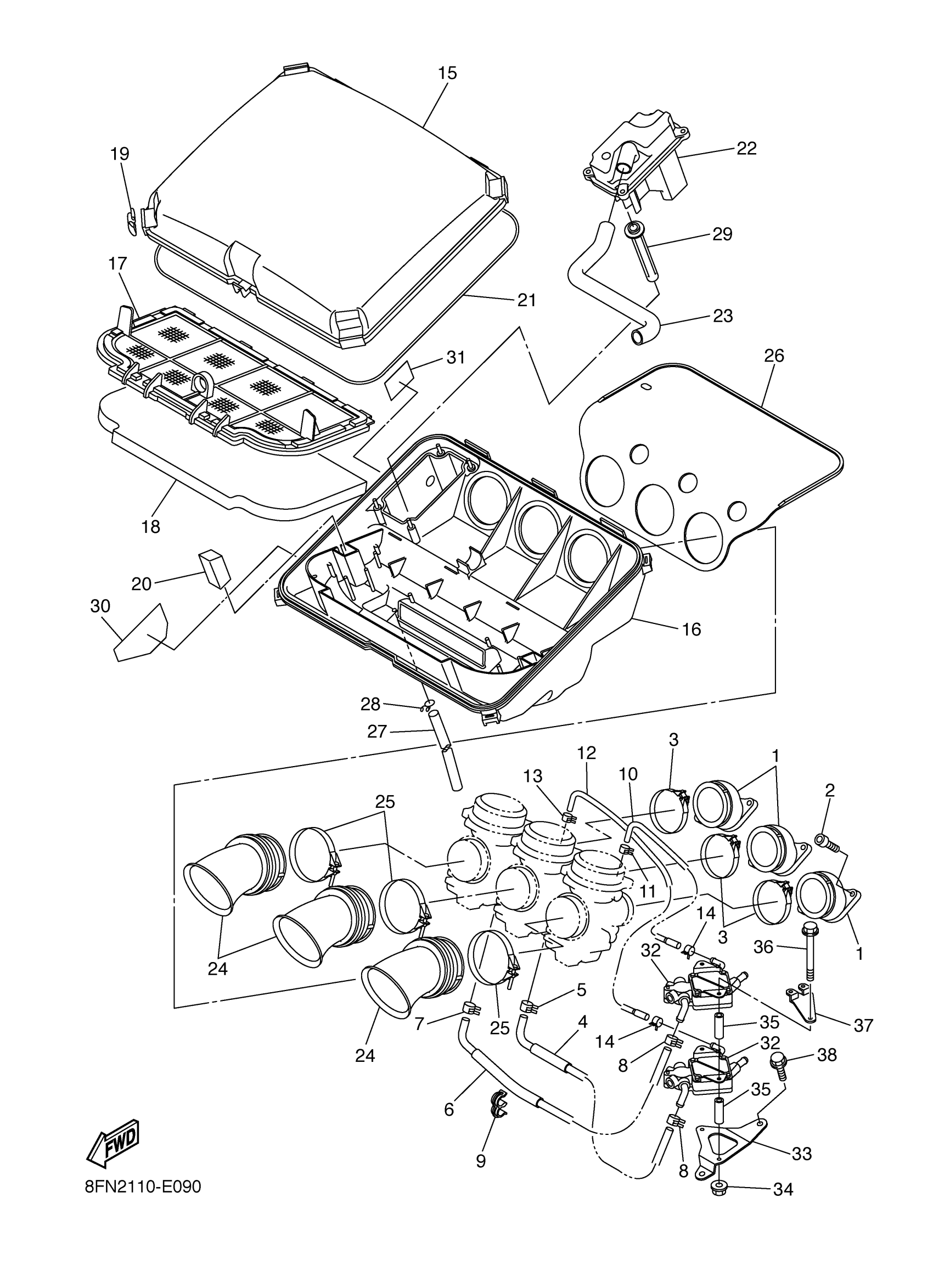

Yamaha VK10XR (RS VIKING PROFESSIONAL) 8GS3 2008 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
8ES-13586-10-00
$80.99
2
BOLT,SOCKET HEAD
91314-06020-00
$1.49
3
HOSE CLAMP ASSY
90450-57016-00
$21.99
4
HOSE
8ES-14294-10-00
$31.99
5
CLIP
90467-11028-00
Unavailable
6
PIPE
8ES-14298-10-00
$41.99
7
CLIP
90467-11028-00
Unavailable
8
CLIP
90467-11028-00
Unavailable
9
CLAMP(4HM)
90464-13194-00
Unavailable
10
HOSE, AIR
8ES-13895-00-00
$4.42
11
CLIP(41W)
90467-08092-00
$9.49
12
HOSE, AIR 2
8ES-13892-00-00
$6.99
13
CLIP(41W)
90467-08092-00
$9.49
14
CLIP (8A1)
90467-09026-00
$3.28
15
SILENCER, INTAKE 1
8ES-14431-00-00
Unavailable
16
SILENCER, INTAKE 2
8ES-14441-00-00
Unavailable
17
PLATE, ELEMENT
8FN-14472-00-00
Unavailable
18
ELEMENT, AIR CLEANER
8ES-14451-00-00
Unavailable
19
HOOK
8FA-14436-00-00
Unavailable
20
DAMPER 1
8ES-14425-00-00
Unavailable
21
SEAL
8ES-14452-00-00
Unavailable
22
COVER, CLEANER CASE 1
8ES-1441A-00-00
Unavailable
23
PIPE
8ES-14419-00-00
Unavailable
24
JOINT, AIR CLEANER 1
8ES-14453-00-00
Unavailable
25
HOSE CLAMP ASSY
90450-67002-00
Unavailable
26
COVER, CARBURETOR 1
8ES-14283-00-00
Unavailable
27
HOSE (L198)
90445-11293-00
Unavailable
28
CLIP
90467-100A1-00
Unavailable
29
PIPE
8ES-14148-00-00
Unavailable
30
LABEL, CAUTION
8ES-14488-00-00
Unavailable
31
LABEL, INSTRUCTION
8ES-14427-00-00
Unavailable
32
FUEL PUMP ASSY
8FA-13910-00-00
Unavailable
33
BRACKET, FUEL PUMP
8FA-24491-00-00
Unavailable
34
NUT, FLANGE
95702-06500-00
Unavailable
35
COLLAR (878)
90387-08262-00
Unavailable
36
BOLT, FLANGE
95022-06085-00
Unavailable
37
STAY
8FN-12443-00-00
Unavailable
38
BOLT, FLANGE
95817-06016-00
Unavailable
