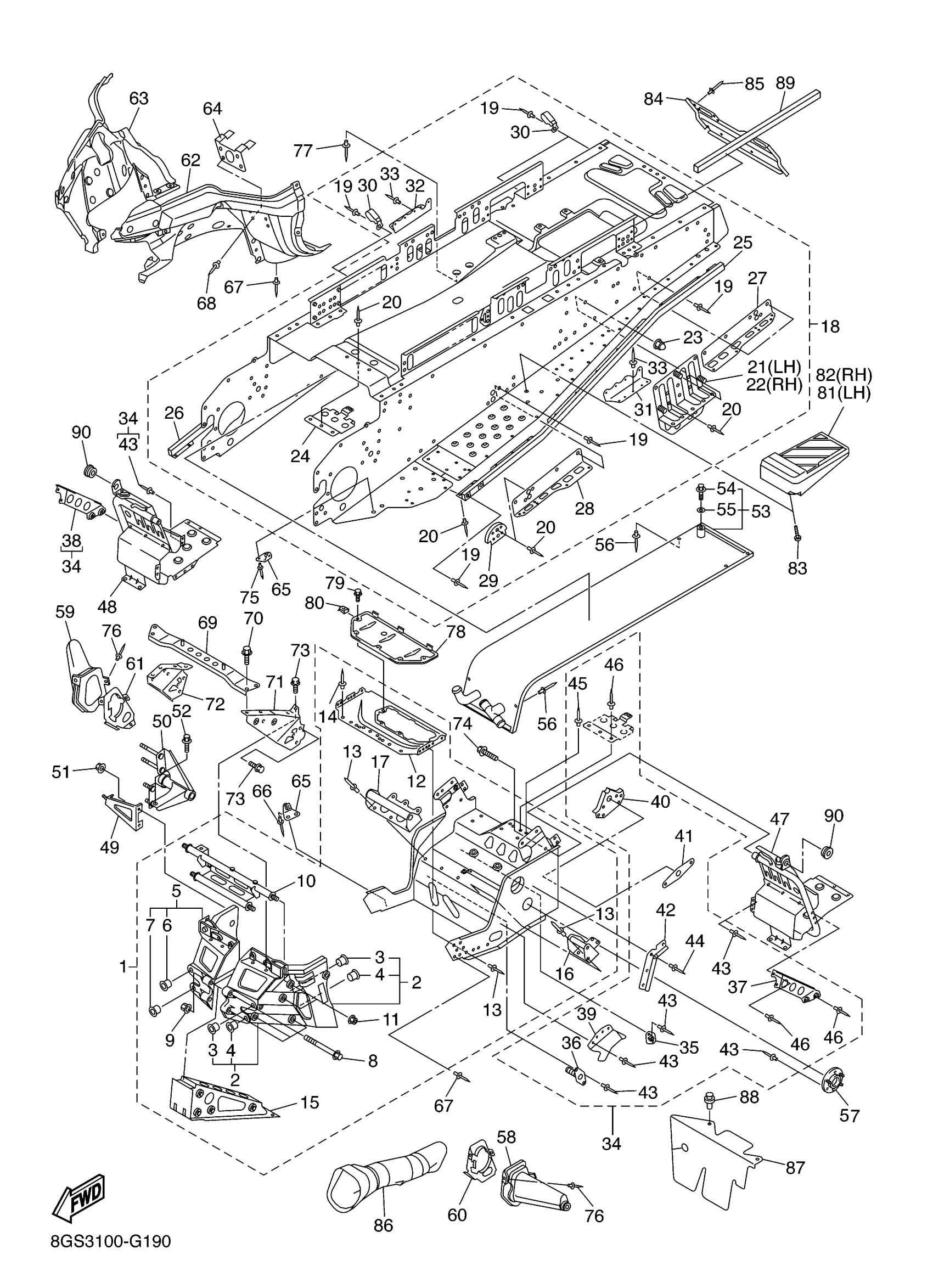

Yamaha VK10XR (RS VIKING PROFESSIONAL) 8GS3 2008 FRAME Diagram
#
1
FRONT FRAME COMP.
8GS-21940-00-00
Unavailable
2
BULKHEAD
8FN-W2197-02-00
$363.99
3
BUSH, SOLID
90381-15001-00
$5.60
4
BUSH, SOLID
90381-16004-00
$16.99
5
BULKHEAD 2
8FN-Y291E-02-00
Unavailable
6
BUSH, SOLID
90381-15001-00
$5.60
7
BUSH, SOLID
90381-16004-00
$16.99
8
BOLT, FLANGE
90105-08072-00
$3.61
9
NUT, SELF-LOCKING
90185-08169-00
$8.49
10
BRACKET, STEERING 1
8FN-21947-00-00
Unavailable
11
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
12
PROTECTOR
8FN-2193A-00-00
Unavailable
13
RIVET, BLIND
90267-47195-00
$3.88
14
RIVET, BLIND
90267-48016-00
$10.49
15
REINFORCEMENT, FRAME 3
8FN-2198E-00-00
$332.99
16
BRACKET, ENGINE 2
8FN-2194F-00-00
Unavailable
17
BRACKET, ENGINE 3
8FN-2194G-00-00
Unavailable
18
REAR FRAME COMP.
8GS-21950-01-00
Unavailable
19
RIVET, BLIND
90267-48023-00
Unavailable
20
RIVET, BLIND
90267-48177-00
Unavailable
21
BRACKET, RR.TRACK SUSPENTION 1
8FN-21944-01-00
Unavailable
22
BRACKET, RR.TRACK SUSPENTION 2
8FN-21954-01-00
Unavailable
23
NUT, CROWN(2GG)
90176-10075-00
Unavailable
24
PROTECTOR, MUFFLER
8FN-2194H-00-00
Unavailable
25
REINFORCEMENT, FOOTREST 1
8FN-21926-00-00
Unavailable
26
REINFORCEMENT, FOOTREST 2
8FN-21936-00-00
Unavailable
27
PATCH 2
8FN-21962-01-00
Unavailable
28
PATCH 3
8FN-21963-01-00
Unavailable
29
BRACKET, MAIN TRACK 1
8CW-21943-00-00
Unavailable
30
CLAMP(51Y)
90465-08277-00
Unavailable
31
PATCH 5
8GS-21965-00-00
Unavailable
32
PATCH 6
8GS-21966-00-00
Unavailable
33
RIVET, BLIND
90267-48016-00
$10.49
34
FRAME CONNECTION KIT
8GS-W2195-00-00
Unavailable
35
BRACKET, CHAIN HOUSING
8CR-21939-01-00
Unavailable
36
BRACKET, CHAIN HOUSING
8FN-21939-00-00
Unavailable
37
BRACKET, 5
8FG-2196M-00-00
Unavailable
38
BRACKET, 6
8FG-2197M-00-00
Unavailable
39
COVER 2
8FU-2198G-00-00
Unavailable
40
BRACKET, MAIN TRACK 1
8GS-21943-00-00
Unavailable
41
BRACKET, MAIN TRACK 2
8FN-21953-00-00
Unavailable
42
CLAMP, WIREHARNESS
8FA-21999-00-00
Unavailable
43
RIVET, BLIND
90267-47195-00
$3.88
44
RIVET, BLIND
90267-48018-00
Unavailable
45
RIVET, BLIND
90267-48023-00
Unavailable
46
RIVET, BLIND
90267-48177-00
Unavailable
47
FOOTREST COMP. 1
8FN-21960-01-00
Unavailable
48
FOOTREST COMP. 2
8GS-21970-00-00
Unavailable
49
BRACKET, OIL TANK 1
8FN-2193E-00-00
Unavailable
50
BRACKET, ENGINE
8FN-2194E-00-00
Unavailable
51
NUT, SELF-LOCKING
95602-08200-00
Unavailable
52
BOLT, FLANGE(3HP)
95817-10016-00
Unavailable
53
HEAT EXCHANGER ASSY
8FN-12440-01-00
Unavailable
54
BOLT, FLANGE
95817-06016-00
Unavailable
55
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
56
RIVET, BLIND
90267-48016-00
$10.49
57
HOUSING, REINF SUB-ASSY(L.H)
8EK-21920-01-00
Unavailable
58
COVER 1
8FU-2198F-01-00
Unavailable
59
COVER 3
8FU-2198J-01-00
Unavailable
60
PLATE, STRG BRACKET 1
8FU-2195E-01-00
Unavailable
61
PLATE, STRG BRACKET 2
8FU-2195F-01-00
Unavailable
62
FRAME UNDER 1
8ES-2196A-01-00
Unavailable
63
FRAME, UNDER 2
8FA-2196E-01-00
Unavailable
64
BRACKET, GUARD FITTING
8FA-21972-01-00
Unavailable
65
BRACKET 3
8FA-2196F-00-00
Unavailable
66
RIVET, BLIND (22W)
90267-48083-00
Unavailable
67
RIVET, BLIND
90267-48018-00
Unavailable
68
RIVET, BLIND
90267-47200-00
Unavailable
69
BUMPER, FRONT 2
8FN-77512-00-00
Unavailable
70
BOLT, FLANGE
95817-06012-00
Unavailable
71
BRACKET, FRONT
8FN-21949-00-00
Unavailable
72
BRACKET, FRONT BUMPER
8FN-21959-00-00
Unavailable
73
BOLT, FLANGE
95814-08016-00
Unavailable
74
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
75
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
76
RIVET, BLIND
90267-47195-00
$3.88
77
RIVET, BLIND
90267-48016-00
$10.49
78
PROTECTOR, FRAME
8FA-2197E-01-00
Unavailable
79
BOLT(3XP)
90109-065F3-00
Unavailable
80
NUT, SPRING(4ES)
90183-06069-00
Unavailable
81
FOOTREST, REAR 1
8DM-27431-03-00
Unavailable
82
FOOTREST, REAR 2
8DM-27441-03-00
Unavailable
83
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
84
REINFORCEMENT, FRAME REAR 2
8FN-21933-01-00
Unavailable
85
RIVET, BLIND
90267-47195-00
$3.88
86
DUCT, AIR
8FN-21557-00-00
Unavailable
87
COVER 1
8FN-2198F-00-00
Unavailable
88
RIVET
90269-09002-00
Unavailable
89
SEAL, 5
8FN-241A5-00-00
Unavailable
90
GROMMET (4H7)
90480-16278-00
Unavailable
