Description

Price

1

SINGLE SEAT ASSY

8FN-24710-04-00

Unavailable

2

SEAT COVER COMP.

8FN-2470F-03-00

Unavailable

3

CLAMP, ROD

89A-77159-00-00

$13.49

4

TANDEM SEAT ASSY

8FN-24750-01-00

Unavailable

5

SEAT COVER COMP. ,2

8FN-2470H-02-00

Unavailable

6

SEAT BACK ASSY

8FN-24790-00-00

Unavailable

7

NUT, FLANGE(4MV)

95707-06500-00

$1.23

8

BOLT, FLANGE

90105-10151-00

Unavailable

9

EMBLEM

8FN-24897-00-00

$10.49

10

ASSIST, GRIP

8FN-2474A-00-00

Unavailable

11

ASSIST,GRIP 2

8FN-2474W-00-00

Unavailable

12

ASSIST GRIP WARMER ASSY 1

8GS-2474B-00-00

$148.99

13

COVER

8ET-24796-00-00

$45.99

14

RIVET, BLIND(8CR)

90267-47186-00

$2.97

15

BOLT, FLANGE

90105-10151-00

Unavailable

16

BRACKET, ASSIST GRIP 1

8FN-2474H-00-00

Unavailable

17

STOPPER

8FA-27114-00-00

Unavailable

18

PROTECTOR,1

8FN-2476U-00-00

Unavailable

19

BOLT, FLANGE

95817-08014-00

Unavailable

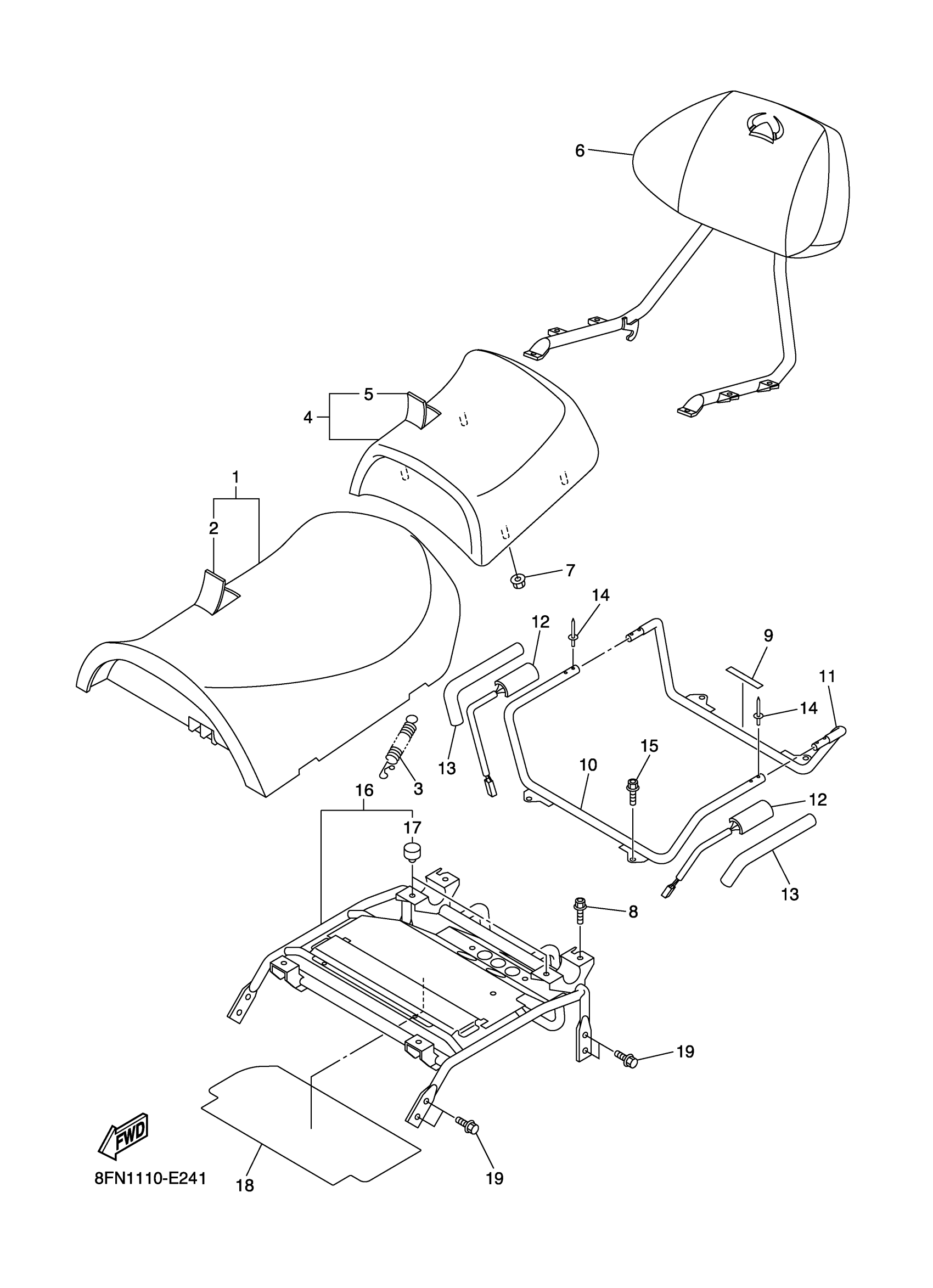

Yamaha VK10W (VK PROFESSIONAL) 8GS1 2007 SEAT Diagram

SINGLE SEAT ASSY

SEAT COVER COMP.

CLAMP, ROD

TANDEM SEAT ASSY

SEAT COVER COMP. ,2

SEAT BACK ASSY

NUT, FLANGE(4MV)

BOLT, FLANGE

EMBLEM

ASSIST, GRIP

ASSIST,GRIP 2

ASSIST GRIP WARMER ASSY 1

COVER

RIVET, BLIND(8CR)

BOLT, FLANGE

BRACKET, ASSIST GRIP 1

STOPPER

PROTECTOR,1

BOLT, FLANGE
