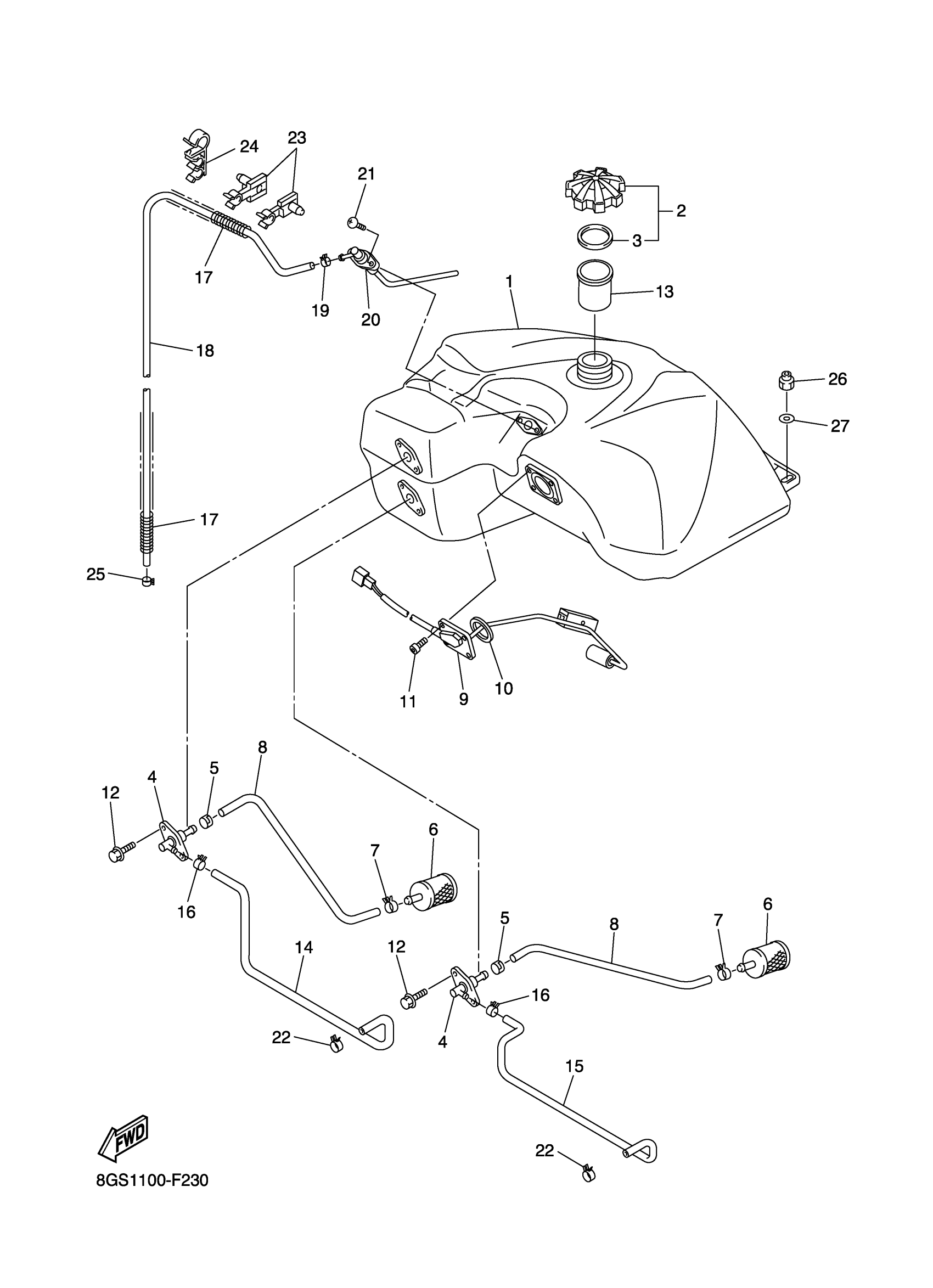

Yamaha VK10W (VK PROFESSIONAL) 8GS1 2007 FUEL TANK Diagram
#
Description
Price
1
TANK, FUEL
8FN-24111-10-00
Unavailable
2
CAP ASSY
8FG-24610-01-00
$40.99
3
GASKET, CAP 1
8HV-24641-00-00
Unavailable
4
SUCTION PIPE COMP. 1
8CR-24301-01-00
Unavailable
5
CLIP
90468-04092-00
Unavailable
6
FILTER ASSY
8H5-24560-00-00
Unavailable
7
CLIP (7K7)
90467-11044-00
$8.49
8
PIPE, SUCTION 1
8FA-24335-01-00
Unavailable
9
SENDER UNIT ASSY, FUEL METER
8FN-85752-00-00
Unavailable
10
O-RING (102)
93210-41041-00
$7.49
11
SCREW, BINDING
98907-05008-00
$2.18
12
BOLT, FLANGE
95817-06016-00
$2.75
13
TUBE, FILLER
8FN-24114-00-00
Unavailable
14
PIPE, FUEL 1
8FN-24311-00-00
Unavailable
15
PIPE, FUEL 1
8FN-24311-10-00
$29.99
16
CLIP (7K7)
90467-11044-00
$8.49
17
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
18
TUBE, FLEXIBLE VINYL(8AT)
91A20-05145-00
Unavailable
19
CLIP (8A1)
90467-09026-00
Unavailable
20
BREATHER COMP.
8FN-2418A-01-00
Unavailable
21
SCREW
90149-06021-00
Unavailable
22
CLIP (7K7)
90467-11044-00
$8.49
23
CLAMP
90464-09015-00
Unavailable
24
CLAMP
90464-16010-00
Unavailable
25
CLIP (8A1)
90467-09026-00
Unavailable
26
NUT, NYLON
95717-08300-00
Unavailable
27
WASHER, PLATE (3L7)
90201-08784-00
Unavailable
