- VK10L (VK PROFESSIONAL) 8FN2 2006
TRACK DRIVE 2

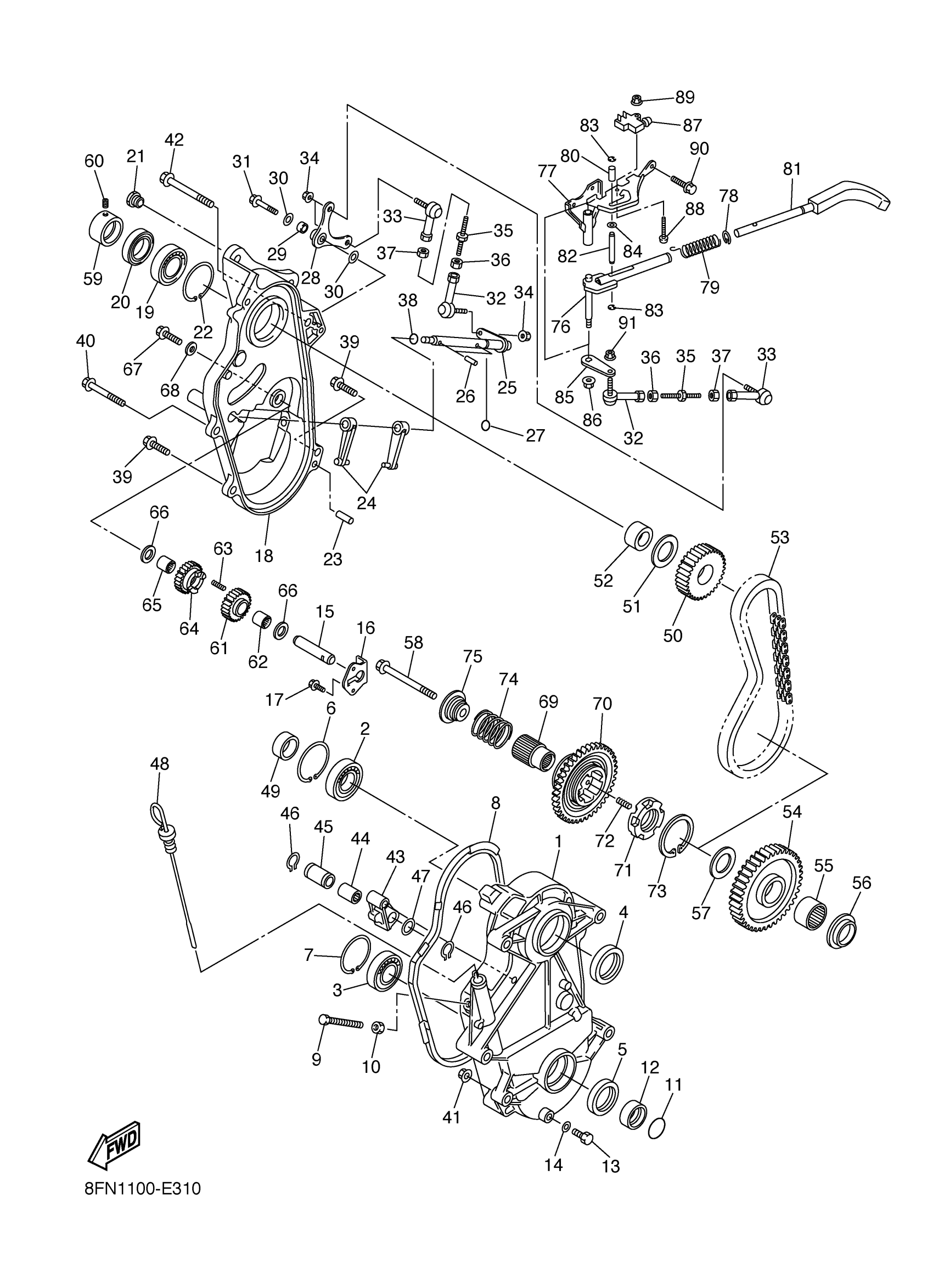

Yamaha VK10L (VK PROFESSIONAL) 8FN2 2006 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8FA-47541-00-00
Unavailable
2
BEARING (5X5)
93306-20627-00
$75.99
3
BEARING
93306-20592-00
$59.99
4
OIL SEAL
93102-30012-00
$32.99
5
OIL SEAL
93102-35010-00
$23.99
6
CIRCLIP(MF1)
99009-62500-00
$8.49
7
CIRCLIP(26H)
99009-52500-00
$12.49
8
RING, RUBBER HOUSING
8FA-47558-01-00
Unavailable
9
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
10
NUT(6TD)
95337-10600-00
$9.49
11
O-RING (169)
93210-25071-00
$8.49
12
COLLAR(8CJ)
90387-2508C-00
$46.99
13
BOLT(8BC)
97007-08014-00
$8.49
14
WASHER, SEAL(8AB)
90210-08017-00
$8.49
15
SHAFT, 1
8CW-1761A-00-00
$62.99
16
PLATE
8CW-47591-00-00
Unavailable
17
BOLT, FLANGE
95817-06016-00
Unavailable
18
CAP, HOUSING
8ER-47543-01-00
Unavailable
19
BEARING
93306-20532-00
Unavailable
20
OIL SEAL
93102-35010-00
$23.99
21
NUT(8CJ)
90179-10679-00
Unavailable
22
CIRCLIP(26H)
99009-52500-00
$12.49
23
PIN, DOWEL (168)
93606-20044-00
Unavailable
24
FORK, SHIFT 1
8GL-18511-01-00
Unavailable
25
SHAFT
8ER-18197-10-00
Unavailable
26
PIN, SPRING(8DA)
91609-50022-00
Unavailable
27
O-RING (328)
93210-12131-00
Unavailable
28
LEVER
8ER-18198-00-00
Unavailable
29
COLLAR
90387-06197-00
Unavailable
30
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
31
BOLT, FLANGE
95817-06030-00
Unavailable
32
JOINT, UNIVERSAL 2
J45-23845-00-00
Unavailable
33
JOINT 2
88T-18157-00-00
Unavailable
34
NUT,SELF-LOCKING
95607-06200-00
Unavailable
35
ROD, SHIFT
26H-18115-00-00
Unavailable
36
NUT, HEXAGON
95314-06600-00
Unavailable
37
NUT (2H9)
90170-06228-00
Unavailable
38
O-RING (4A0)
93210-09418-00
Unavailable
39
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
40
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
41
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
42
BOLT,FLANGE
95817-10090-00
Unavailable
43
HOLDER
8ES-47613-00-00
Unavailable
44
BEARING
93311-32685-00
Unavailable
45
COLLAR
90387-22005-00
Unavailable
46
CIRCLIP
99009-26400-00
Unavailable
47
WASHER, PLATE
90201-266P2-00
Unavailable
48
LEVEL, OIL
8FA-47546-01-00
Unavailable
49
COLLAR
90387-30005-00
Unavailable
50
SPROCKET, CHAIN DRIVE
8FA-17682-80-00
Unavailable
51
WASHER, CONICAL SPRING
90208-26002-00
Unavailable
52
COLLAR
90387-26007-00
Unavailable
53
CHAIN
94890-09068-00
Unavailable
54
SPROCKET, CHAIN DRIVEN
8FB-47587-90-00
Unavailable
55
BEARING, CYLINDRICAL(8DA)
93317-33179-00
Unavailable
56
COLLAR(8DA)
90387-2008G-00
Unavailable
57
WASHER, PLATE(8DA)
90201-320S3-00
Unavailable
58
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
59
COLLAR
90387-25009-00
Unavailable
60
BOLT, SET
90113-06006-00
Unavailable
61
SPROCKET, DRIVE
8FB-17692-00-00
Unavailable
62
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
63
SPRING COMPRESSION278185450000
90501-06022-00
Unavailable
64
REVERSE GEAR SUB-ASSY 1 (RGEAR
8CW-W1714-00-00
Unavailable
65
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
66
WASHER PLATE (3L6)
90201-16245-00
Unavailable
67
BOLT, FLANGE
95817-06016-00
Unavailable
68
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
69
JOURNAL 1
8CW-47571-00-00
Unavailable
70
GEAR, REVERSE WHEEL 1
8CW-17243-00-00
Unavailable
71
DOG, TRANSMISSION SHIFT
8CW-17492-00-00
Unavailable
72
SPRING, COMPRESSION(8DA)
90501-066J5-00
Unavailable
73
CIRCLIP(8DA)
93440-39175-00
Unavailable
74
SPRING, COMPRESSION(8FA1)
90501-260A0-00
Unavailable
75
COLLAR
8CW-47564-01-00
Unavailable
76
ARM, SHIFT
8ER-18112-01-00
Unavailable
77
GUIDE, PLATE STOPPER
8ER-18161-00-00
Unavailable
78
CIRCLIP(13H)
99009-18400-00
Unavailable
79
SPRING, COMPRESSION (8FA1)
90501-130A0-00
Unavailable
80
COLLAR (8FA1)
90387-06059-00
Unavailable
81
KNOB, SHIFT LEVER
8FN-18174-01-00
Unavailable
82
PIN (8FA1)
90249-06002-00
Unavailable
83
CIRCLIP (J10)
93410-06053-00
Unavailable
84
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
85
PLATE, SHIFT ARM
8ER-1811A-01-00
Unavailable
86
NUT,SELF-LOCKING
95607-06200-00
Unavailable
87
SWITCH
J51-82817-00-00
Unavailable
88
SCREW, BINDING
98907-04020-00
Unavailable
89
NUT, U (7LY)
95617-04100-00
Unavailable
90
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
91
NUT,SELF-LOCKING
95607-06200-00
Unavailable
