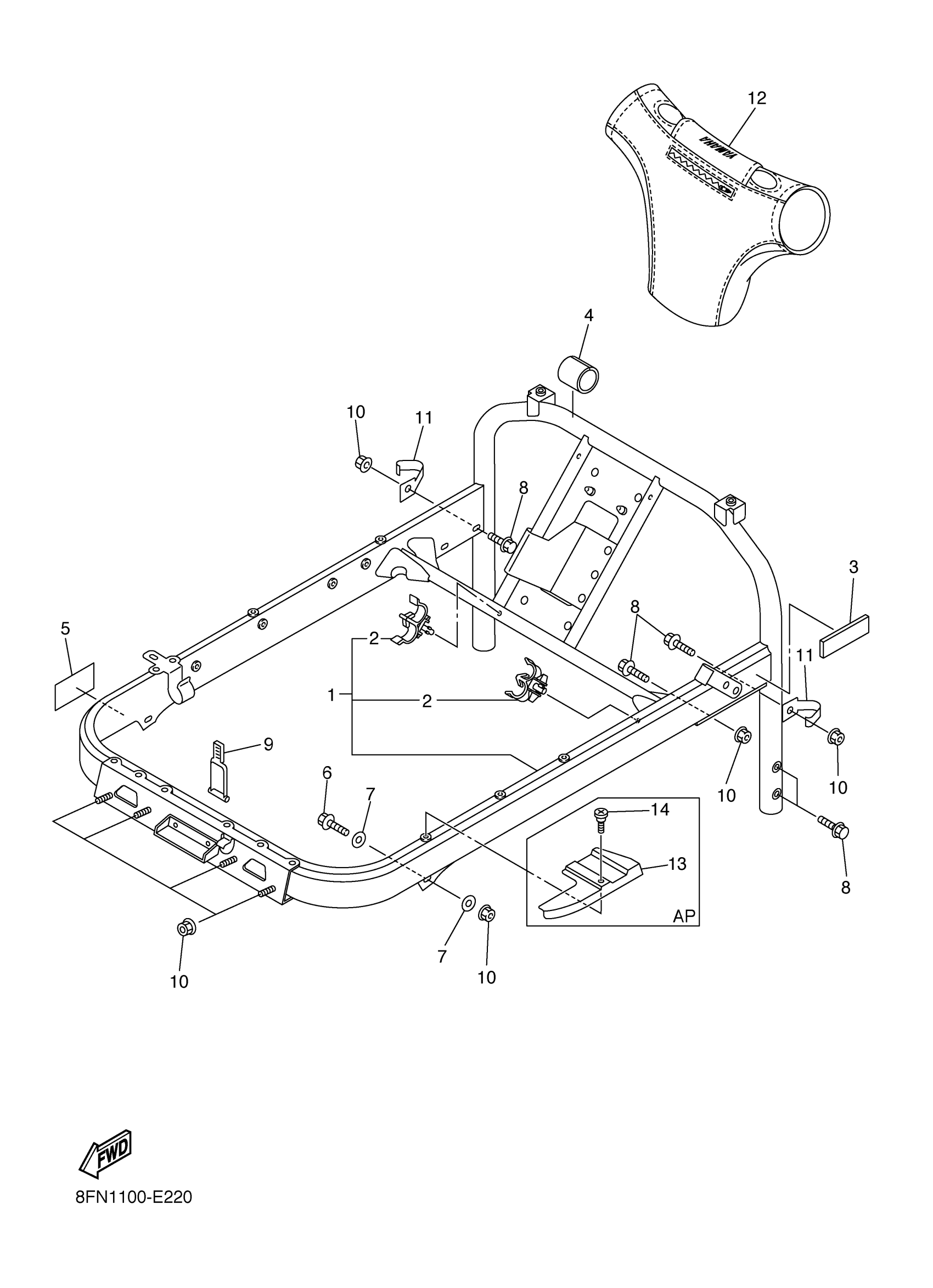

Yamaha VK10L (VK PROFESSIONAL) 8FN2 2006 STEERING GATE Diagram

#

Description
Price

1

STEERING GATE COMP.

8FN-23870-00-00

Unavailable

2

CLAMP

90464-11007-00

$2.75

3

DAMPER, LOCATING 1

8FN-24181-00-00

Unavailable

4

DAMPER, LOCATING 2

8FN-24182-00-00

$13.99

5

LABEL, CAUTION

8FA-2389C-E0-00

Unavailable

6

BOLT, WASHER BASED(JN9)

90105-081A7-00

$8.49

7

WASHER (853)

90201-08326-00

$8.49

8

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

9

LATCH

8FA-2389E-00-00

$13.49

10

NUT, SELF-LOCKING

90185-08169-00

$8.49

11

CLAMP

90462-10022-00

Unavailable

12

PAD, STEERING

8FN-23815-00-00

Unavailable

13

PLATE

8ES-14146-00-00

Unavailable

14

SCREW, ROUND HEAD (24R)

90150-06015-00

$3.66
