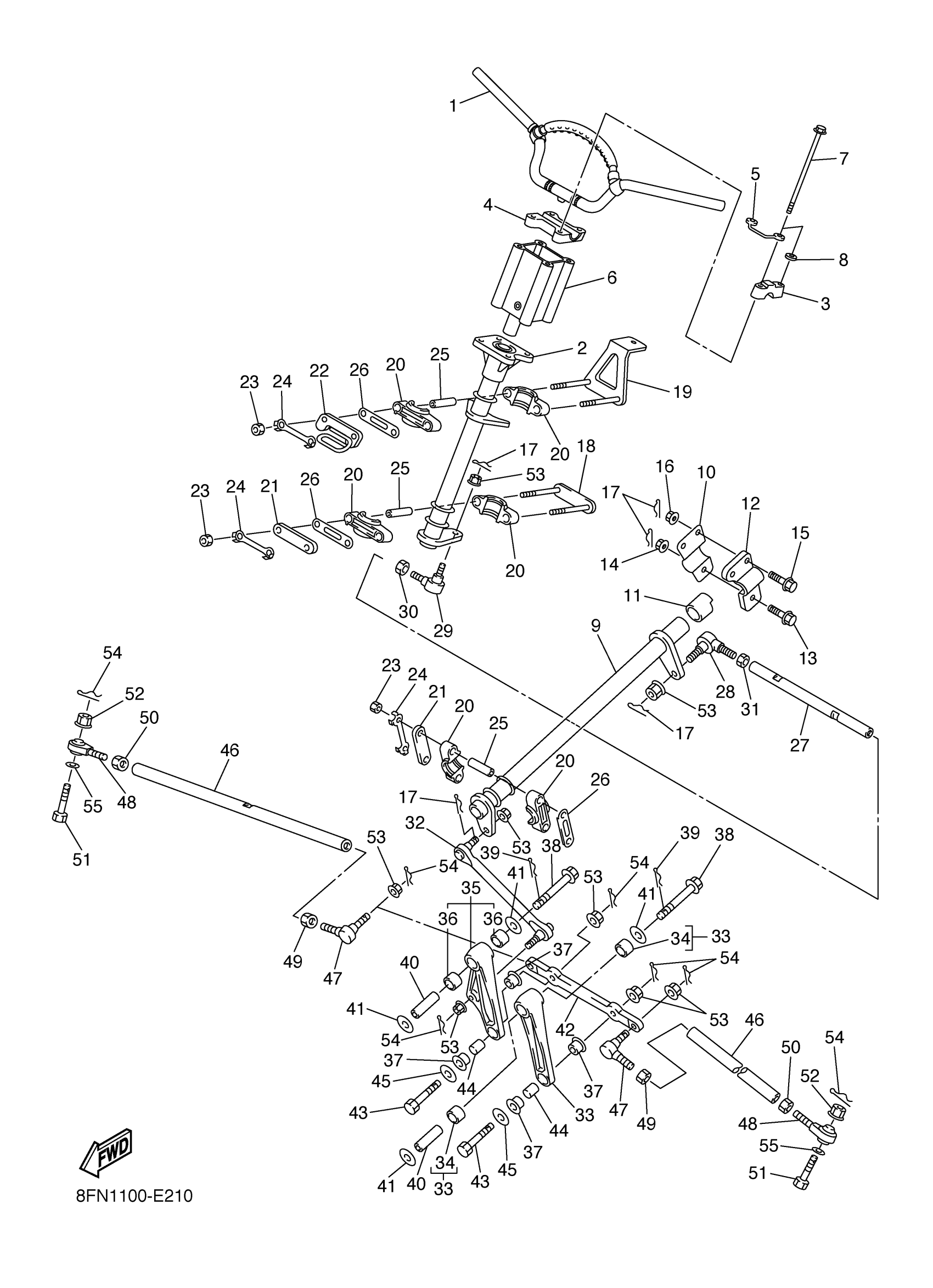

Yamaha VK10L (VK PROFESSIONAL) 8FN2 2006 STEERING Diagram
#
1
HANDLE COMP.
8FN-26110-00-00
Unavailable
2
COLUMN, STEERING 2
8FA-23813-01-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
HOLDER, HANDLE LOWER
8ED-23442-00-00
Unavailable
5
HOLDER
8DF-23857-00-00
$63.99
6
JOINT
8FK-2381B-00-00
$155.99
7
BOLT, FLANGE
90105-08072-00
$3.61
8
WASHER, PLATE
90201-08020-00
$7.49
9
COLUMN, STEERING
8FA-23811-00-00
Unavailable
10
COVER, STEERING
8FA-23818-02-00
$8.99
11
BEARING, STEERING UPPER
8FA-23873-01-00
$6.99
12
HOLDER 2
8FN-23867-00-00
Unavailable
13
BOLT, FLANGE (2XJ)
90105-10549-00
$7.49
14
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
15
BOLT, WASHER BASED(JA1)
90105-08552-00
$2.97
16
NUT, SELF-LOCKING
90185-08169-00
Unavailable
17
CLIP 136253750000
90468-12006-00
Unavailable
18
HOLDER, BEARING
8FA-23872-00-00
Unavailable
19
HOLDER, BEARING
8FN-2376H-00-00
Unavailable
20
PLANE BEARING, STEERING
8FA-23812-00-00
Unavailable
21
HOLDER 2
8FA-23867-00-00
Unavailable
22
HOLDER, BEARING
8FN-23872-00-00
Unavailable
23
NUT(6TA)
95337-08600-00
Unavailable
24
WASHER, LOCK 1
1UY-23894-01-00
Unavailable
25
COLLAR
90387-09006-00
Unavailable
26
WASHER, PLAIN
8FA-23843-00-00
Unavailable
27
ROD, STEERING
8FN-23828-00-00
Unavailable
28
JOINT, UNIVERSAL 3
8CR-23847-00-00
Unavailable
29
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
30
NUT (3WP1)
95317-10700-00
Unavailable
31
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
32
ROD, STEERING RELAY
8FA-23821-00-00
Unavailable
33
ARM PIVOT ASSY
8FG-2389K-00-00
Unavailable
34
BUSH, FORMED
90383-17001-00
Unavailable
35
ARM PIVOT ASSY. , 2
8FA-2389M-00-00
Unavailable
36
BEARING
93317-41785-00
Unavailable
37
BUSH, SOLID
90381-14001-00
Unavailable
38
BOLT, FLANGE
90105-12017-00
Unavailable
39
CLIP, RING
8FA-2384N-00-00
Unavailable
40
COLLAR
8FA-2412G-00-00
Unavailable
41
WASHER, PLATE
90201-121U3-00
Unavailable
42
ARM, IDLER
8FN-23826-00-00
Unavailable
43
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
44
COLLAR
90387-10070-00
Unavailable
45
WASHER PLATE (3L6)
90201-10742-00
Unavailable
46
ROD, TIE
8FN-23831-00-00
Unavailable
47
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
48
JOINT, UNIVERSAL 3
8FA-23847-00-00
Unavailable
49
NUT (3WP1)
95317-10700-00
Unavailable
50
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
51
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
52
NUT, NYLON
95707-10300-00
Unavailable
53
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
54
PIN, COTTER
91490-20025-00
Unavailable
55
WASHER PLATE (3L6)
90201-08759-00
Unavailable
