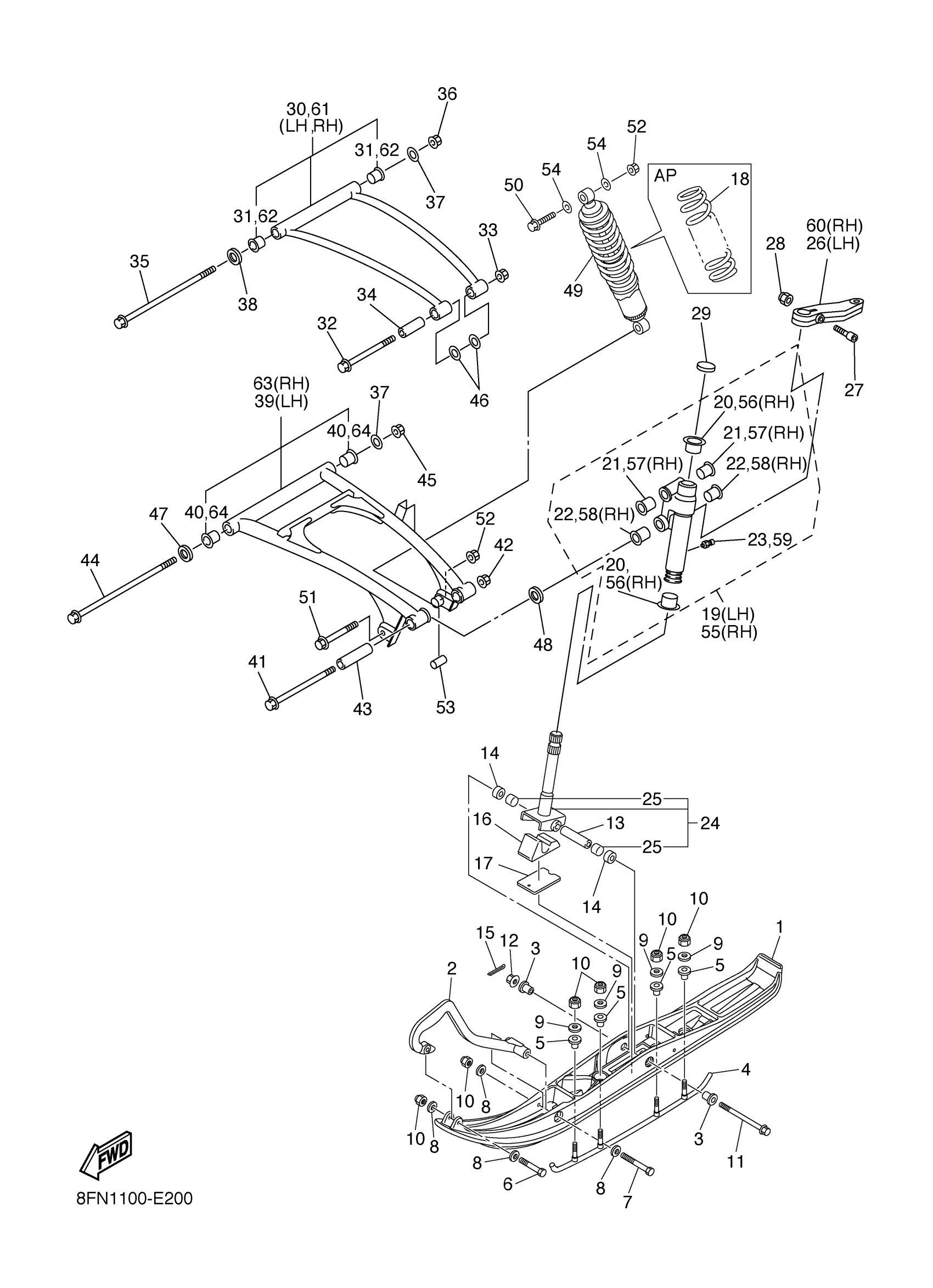

Yamaha VK10L (VK PROFESSIONAL) 8FN2 2006 SKI Diagram

#

Description
Price

1

SKI 1

8FN-F3711-00-00

Unavailable

2

BLACK 8DM HANDLE PLASTIC

8DM-23712-00-BK

Unavailable

3

. COLLAR 1

8EX-F3754-00-00

Unavailable

4

RUNNER

8EN-23731-00-XX

Unavailable

5

BUSH, SKI 1

8EK-F3751-00-00

Unavailable

6

BOLT, HEXAGON

97017-08055-00

$9.49

7

BOLT, HEXAGON

97027-08100-00

$5.60

8

WASHER, PLATE (3L7)

90201-08784-00

$3.23

9

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

10

NUT, NYLON

95717-08300-00

$2.70

11

BOLT, FLANGE

90105-10410-00

$14.99

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

13

COLLAR

90387-1012H-00

$24.99

14

COLLAR

90387-10029-00

Unavailable

15

PIN, COTTER

91490-20025-00

$1.99

16

STOPPER 1

8ES-23743-00-00

Unavailable

17

STOPPER 2

8FM-23744-00-00

Unavailable

18

SPRING ASSY 1

8ES-23760-00-00

Unavailable

18

SPRING ASSY 1

8ES-23760-10-00

Unavailable

19

STEERING KNUCKLE ASSY (LEFT)

8ES-23501-00-00

Unavailable

20

BUSH, SOLID

90381-25115-00

Unavailable

21

BUSH, SOLID

90381-15N50-00

Unavailable

22

BUSH, SOLID

90381-18N51-00

Unavailable

23

NIPPLE, GREASE

93700-06M03-00

Unavailable

24

COLUMN, SKI ASSY

8ES-23803-00-00

Unavailable

25

BUSH, BIMETAL FORMED

90384-16N51-00

Unavailable

26

ARM, OUTSIDE 1

8FN-23851-00-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD

90110-08N53-00

Unavailable

28

NUT, SELF-LOCKING

90185-08169-00

Unavailable

29

CAP, CASE

3YK-22472-40-00

Unavailable

30

FRONT UPPER ARM COMP. (LEFT)

8GS-23540-00-00

Unavailable

31

BUSH, SOLID

90381-15N50-00

Unavailable

32

BOLT, FLANGE

90105-10N51-00

Unavailable

33

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

34

COLLAR

90387-10099-00

Unavailable

35

BOLT, FLANGE

90105-10N54-00

Unavailable

36

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

37

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

38

WASHER

90209-15N50-00

Unavailable

39

FRONT LOWER ARM COMP. (LEFT)

8GS-23570-00-00

Unavailable

40

BUSH, SOLID

90381-16N51-00

Unavailable

41

BOLT, FLANGE

90105-12N54-00

Unavailable

42

NUT, U FLANGE

95607-12200-00

Unavailable

43

COLLAR

90387-12N54-00

Unavailable

44

BOLT, FLANGE

90105-10N55-00

Unavailable

45

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

46

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

47

WASHER

90209-15N50-00

Unavailable

48

WASHER, PLATE

90201-12032-00

Unavailable

49

ABSORBER ASSY 1

8FN-2376A-00-00

Unavailable

50

BOLT, WASHER BASED (4K0)

90105-10169-00

Unavailable

51

BOLT, WASHER BASED(59V)

90105-10392-00

Unavailable

52

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

53

COLLAR

90387-10N59-00

Unavailable

54

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

55

STEERING KNUCKLE ASSY (RIGHT)

8ES-23502-00-00

Unavailable

56

BUSH, SOLID

90381-25115-00

Unavailable

57

BUSH, SOLID

90381-15N50-00

Unavailable

58

BUSH, SOLID

90381-18N51-00

Unavailable

59

NIPPLE, GREASE

93700-06M03-00

Unavailable

60

ARM, OUTSIDE 2

8FN-23852-00-00

Unavailable

61

FRONT UPPER ARM COMP. (RIGHT)

8GS-23550-00-00

Unavailable

62

BUSH, SOLID

90381-15N50-00

Unavailable

63

FRONT LOWER ARM COMP. (RIGHT)

8GS-23580-00-00

Unavailable

64

BUSH, SOLID

90381-16N51-00

Unavailable
