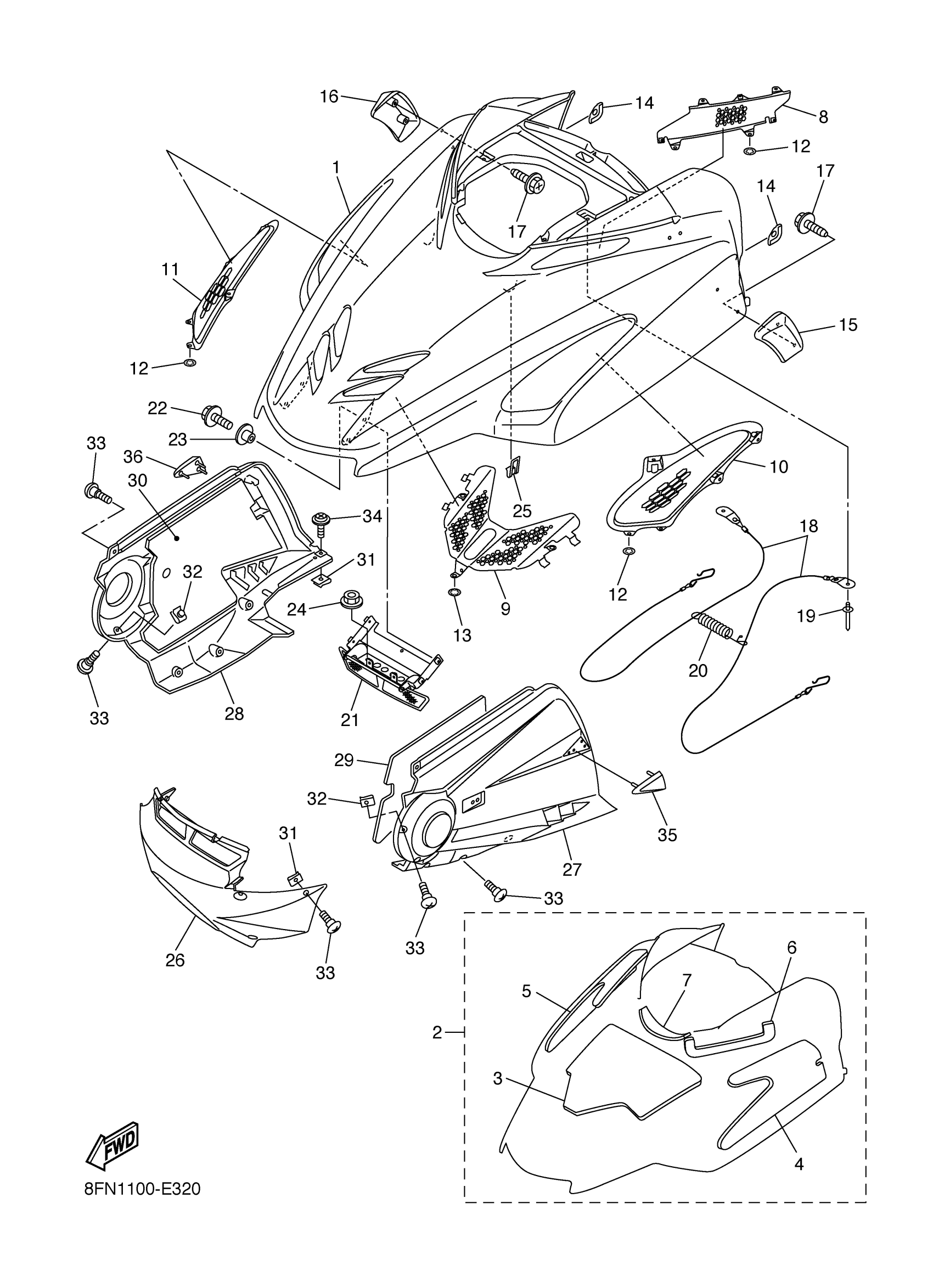

Yamaha VK10L (VK PROFESSIONAL) 8FN2 2006 SHROUD Diagram
#
1
SHROUD (DARK PURPLISH BLUE METALLIC L)
8FN-77111-00-P1
Unavailable
2
LINING SET
8FN-W7726-00-00
Unavailable
3
DAMPER, NOISE 11
8FN-77271-00-00
Unavailable
4
DAMPER, NOISE 12
8FN-77272-00-00
Unavailable
5
DAMPER, NOISE 13
8FN-77273-00-00
Unavailable
6
LINING, SHROUD 4
8FN-77264-00-00
$7.49
7
. DAMPER, HEADLIGHT 1
8DS-84366-00-00
Unavailable
8
LOUVER COMP.
8FN-77130-00-00
Unavailable
9
LOUVER 4
8FN-77134-00-00
Unavailable
10
LOUVER 5
8FN-77109-00-00
Unavailable
11
LOUVER 6
8FN-77108-00-00
Unavailable
12
NUT, SPRING(8AJ)
90183-05068-00
$10.49
13
NUT, SPRING(3VD)
90183-08065-00
$1.11
14
TRIM 3
8FA-77167-10-00
Unavailable
15
STRIP, WEATHER 1
8FN-77161-00-00
$14.99
16
STRIP, WEATHER 2
8FN-77162-00-00
Unavailable
17
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
18
STOPPER, SHROUD
8FN-77118-00-00
Unavailable
19
RIVET, BLIND
90267-48018-00
Unavailable
20
CLAMP, ROD
89A-77159-00-00
Unavailable
21
HINGE ASSY
8FN-77140-00-00
Unavailable
22
BOLT, FLANGE
95817-06016-00
Unavailable
23
COLLAR (8G8)
90387-06681-00
Unavailable
24
NUT,SELF-LOCKING
95607-06200-00
Unavailable
25
CLAMP 1
8FA-77135-00-00
Unavailable
26
PANEL, SUB FRAME 1
8FN-21912-00-00
Unavailable
27
HOOD 3
8ES-2197H-01-00
Unavailable
28
HOOD 4
8FA-2198H-02-00
Unavailable
29
DAMPER, NOISE 16
8ES-77276-00-00
Unavailable
30
DAMPER, NOISE 17
8FA-77277-01-00
Unavailable
31
NUT, SPRING(4ES)
90183-06069-00
Unavailable
32
NUT, SPRING
90183-06100-00
Unavailable
33
SCREW, BINDING
90154-06009-00
Unavailable
34
SCREW, WITH WASHER
90159-06011-00
Unavailable
35
PROTECTOR, SIDE 1
8FA-77561-00-00
Unavailable
36
PROTECTOR, SIDE 2
8FA-77562-00-00
Unavailable
