- VK10L (VK PROFESSIONAL) 8FN2 2006
SECONDARY SHEAVE

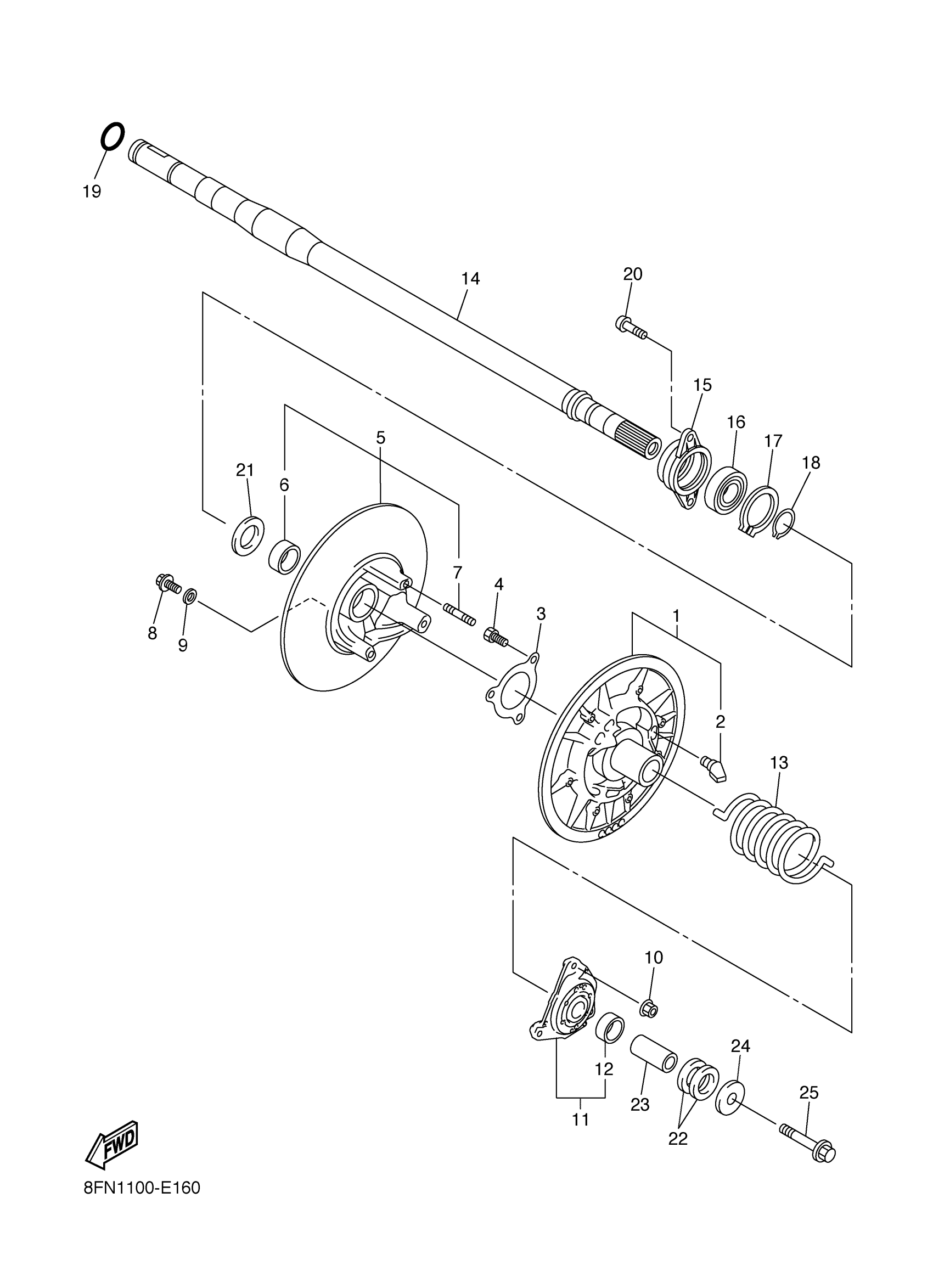

Yamaha VK10L (VK PROFESSIONAL) 8FN2 2006 SECONDARY SHEAVE Diagram
#
Description
Price
1
SECONDARY FIXED SHEAVE COMP.
8CR-17660-20-00
Unavailable
2
SHOE, RAMP
8AV-17688-10-00
$32.99
3
STOPPER, HOLDER
8BV-17656-00-00
$22.99
4
SCREW, BINDING
98907-06016-00
$9.49
5
SECONDARY SLIDING SHEAVE
8BU-17670-20-00
Unavailable
6
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
7
BOLT, STUD 3
95617-08630-00
$4.99
8
BOLT, WASHER BASED(8BN)
90105-06734-00
$3.50
9
WASHER, PLATE (371)
90201-06431-00
$5.60
9
WASHER, PLATE (22K)
90201-061H1-00
$4.72
10
NUT(8BN)
90179-08655-00
$10.49
11
SEAT SPRING SET
8FN-17604-90-00
Unavailable
12
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
13
SPRING, TORSION
90508-60012-00
$49.99
14
SHAFT, SECONDARY
8FN-17681-00-00
Unavailable
15
HOUSING, BEARING
8FN-47631-00-00
Unavailable
16
BEARING
93306-30579-00
Unavailable
17
CIRCLIP(MF1)
99009-62500-00
Unavailable
18
CIRCLIP(JF7)
99009-25400-00
Unavailable
19
O-RING
93210-22298-00
Unavailable
20
BOLT, BUTTON
92017-08025-00
Unavailable
21
WASHER, PLATE (888)
90201-25526-00
Unavailable
22
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
22
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
23
COLLAR
90387-14019-00
Unavailable
24
WASHER, PLATE
90201-14022-00
Unavailable
25
BOLT, WASHER BASED(8CJ)
90105-14766-00
Unavailable
