- VK10FW (RS VIKING PROFESSIONAL) 8JE50 2015
TRACK SUSPENSION 2

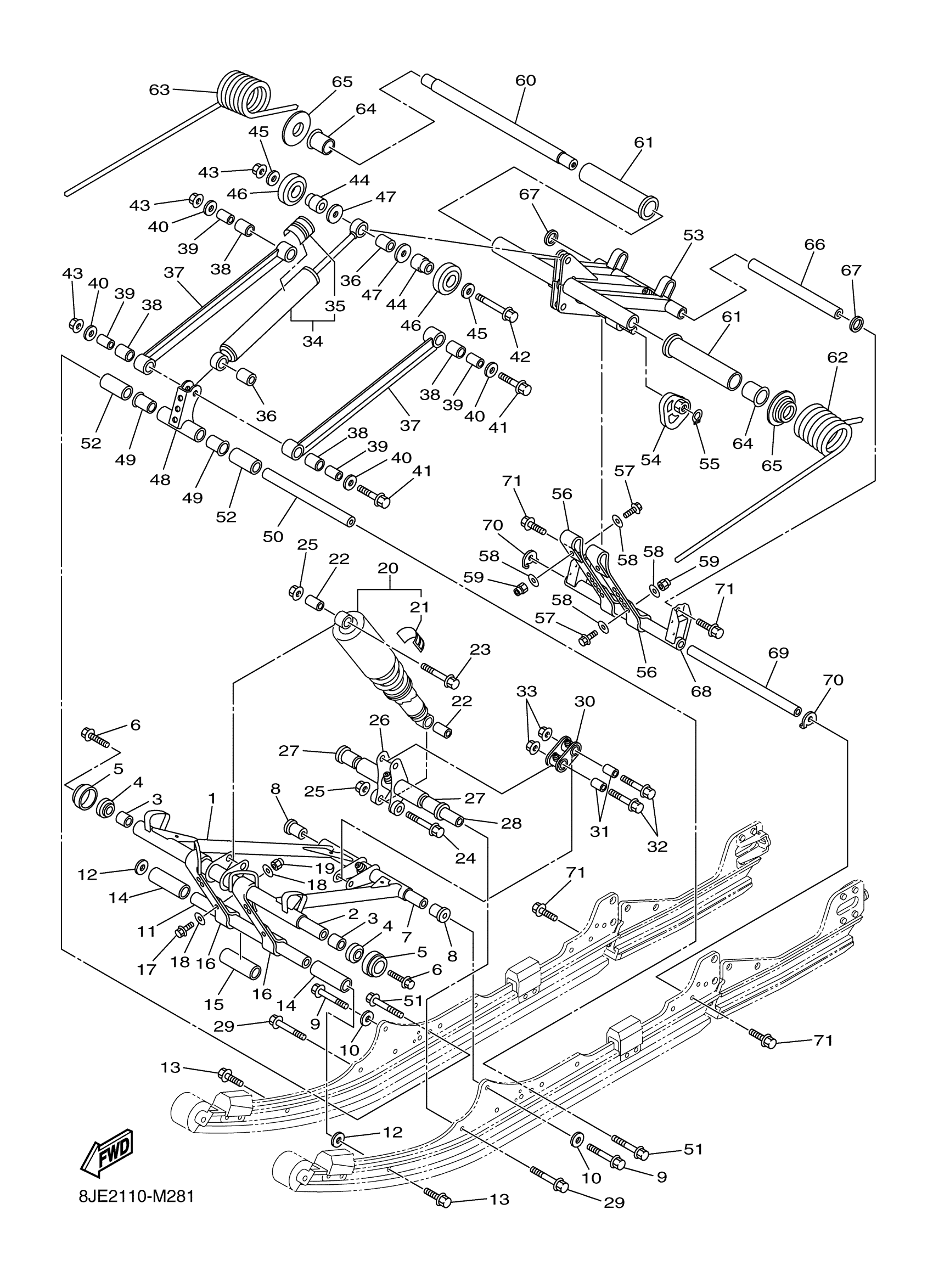

Yamaha VK10FW (RS VIKING PROFESSIONAL) 8JE50 2015 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8JD-47331-00-00
Unavailable
2
SHAFT 1
8JD-47465-00-00
Unavailable
3
BUSH, FORMED
90383-23002-00
$17.99
4
OIL SEAL(37F)
93108-37011-00
$7.49
5
SPACER
8HF-47341-00-00
$25.99
6
BOLT
90109-10032-00
$8.49
7
SHAFT 4
8JD-47486-00-00
Unavailable
8
COLLAR
90387-10022-00
$18.99
9
BOLT, FLANGE
90105-10209-00
$8.49
10
WASHER, PLATE
90201-10072-00
$3.50
11
SHAFT 3
83R-47485-02-00
$76.99
12
WASHER, PLATE (26H)
90201-102G9-00
$9.49
13
BOLT, FLANGE
95817-10030-00
$8.49
14
COLLAR
90387-19002-00
$7.49
15
COLLAR
90387-19007-00
Unavailable
16
STOPPER 1
8JD-47495-00-00
Unavailable
17
BOLT, HEXAGON
97017-06025-00
Unavailable
18
WASHER, PLATE
90201-06081-00
Unavailable
19
NUT, NYLON
95707-06300-00
Unavailable
20
SHOCK ABSORBER 2
8JE-47481-00-00
Unavailable
21
LABEL, WARNING
4AA-22259-60-00
Unavailable
22
COLLAR
90387-10103-00
Unavailable
23
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
24
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
25
NUT, S/L FLANGE
95602-10200-00
Unavailable
26
BRACKET, ARM PIVOT
8JD-47349-00-00
Unavailable
27
BUSH
90386-20001-00
Unavailable
28
SHAFT 5
8JD-47487-00-00
Unavailable
29
BOLT, FLANGE
90105-10209-00
$8.49
30
BRACKET 2
8FK-47416-01-00
Unavailable
31
COLLAR
90387-10024-00
Unavailable
32
BOLT, FLANGE(8AB)
95817-10050-00
Unavailable
33
NUT, S/L FLANGE
95602-10200-00
Unavailable
34
SHOCK ABSORBER
8JE-47480-00-00
Unavailable
35
LABEL, WARNING
4AA-22259-60-00
Unavailable
36
COLLAR
90387-10023-00
Unavailable
37
ROD, RELAY
8HF-47494-00-00
Unavailable
38
BUSH
90386-16001-00
Unavailable
39
COLLAR (8K4)
90387-101A1-00
Unavailable
40
WASHER, PLATE
90201-10043-00
Unavailable
41
95812-10090
95812-10090-00
Unavailable
42
BOLT, WASHER BASED
90105-10027-00
Unavailable
43
NUT, S/L FLANGE
95602-10200-00
Unavailable
44
COLLAR 2
8AC-47366-00-00
Unavailable
45
WASHER PLATE (789)
90201-10136-00
Unavailable
46
SUSPENSION WHEEL ASSY
8AC-47310-10-00
Unavailable
47
WASHER, PLATE
90201-103U7-00
Unavailable
48
BRACKET, ARM PIVOT
8JD-47349-10-00
Unavailable
49
BUSH
90386-20001-00
Unavailable
50
SHAFT 5
8JD-47487-10-00
Unavailable
51
BOLT, FLANGE
90105-10209-00
$8.49
52
COLLAR
8HP-47319-00-00
Unavailable
53
ARM, PIVOT 2
8JD-47332-00-00
Unavailable
54
HOOK 2
8ES-47447-00-00
Unavailable
55
CIRCLIP(13H)
99009-14400-00
Unavailable
56
STOPPER 2
8JD-47496-00-00
Unavailable
57
BOLT, HEXAGON
97017-06025-00
Unavailable
58
WASHER, PLATE
90201-06081-00
Unavailable
59
NUT, NYLON
95707-06300-00
Unavailable
60
SHAFT 2
8JD-47475-00-00
Unavailable
61
PROTECTOR
8GL-47445-01-00
Unavailable
62
SPRING, REAR 1 (K=3600NMM/DEG)
8JE-47473-00-00
Unavailable
62
SPRING, REAR 1
8JE-47473-10-00
Unavailable
63
SPRING, REAR 2 (K=3600NMM/DEG)
8JE-47474-00-00
Unavailable
63
SPRING, REAR 2
8JE-47474-10-00
Unavailable
64
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
65
PLATE, GUIDE
8ES-47467-00-00
Unavailable
66
SHAFT 6
8JE-47488-00-00
Unavailable
67
WASHER, PLATE
90201-19008-00
Unavailable
68
BRACKET 3
8JD-47417-00-00
Unavailable
69
SHAFT 3
83R-47485-02-00
$76.99
70
WASHER, CLAW
90214-10007-00
Unavailable
71
BOLT, FLANGE
95817-10030-00
$8.49
